Keeler Digital Applanation Tonometer - Optics Incorporated
Keeler

Digital Applanation Tonometer
Free Gift


SKU:

Regular price $1,226.00 + Free Shipping!

Non-Stock Item. Allow up to 2 weeks for delivery




    LED Display

    With its LED display and internal electronics it allows for ease of use in darkened environments along with fast, accurate measurement of IOP to 1 decimal point.

    LED Display

    With its LED display and internal electronics it allows for ease of use in darkened environments along with fast, accurate measurement of IOP to 1 decimal point.


    Less moving parts means the D-KAT is more reliable, accurate and recalibration takes just seconds.

    Operates according to the 'Goldmann method', by measuring intraocular pressure from the force required to flatten (applanate) a constant area (3.06mm) of the cornea

    Less moving parts means the D-KAT is more reliable, accurate and recalibration takes just seconds.

    Operates according to the 'Goldmann method', by measuring intraocular pressure from the force required to flatten (applanate) a constant area (3.06mm) of the cornea


    Advanced manufacturing

    Designed and manufactured in the UK to the same exacting standards as all Keeler products, the Keeler D-KAT delivers reliability and ease of use.

    Advanced manufacturing

    Designed and manufactured in the UK to the same exacting standards as all Keeler products, the Keeler D-KAT delivers reliability and ease of use.

    Advanced manufacturing

    Designed and manufactured in the UK to the same exacting standards as all Keeler products, the Keeler D-KAT delivers reliability and ease of use.

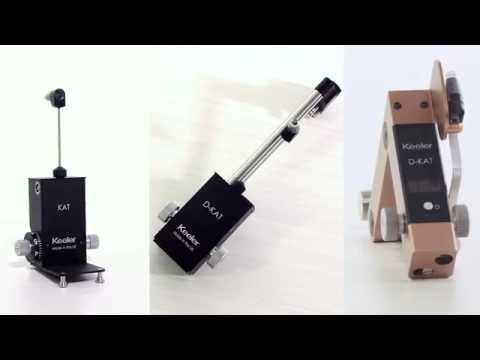

    3 Types Available:

    T Type

    (Take Away)

    For use with Tower-type slit lamps.

    Removable and convenient to use on multiple slit lamps.

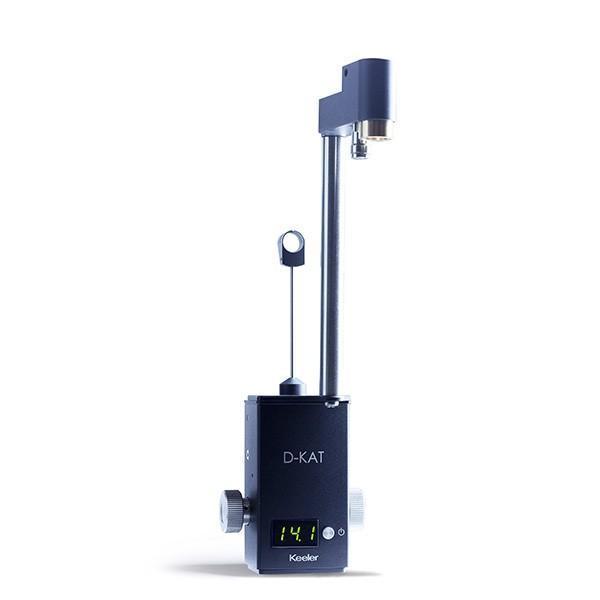

    R Type

    (Fixed)

    For use with Tower-type slit lamps.

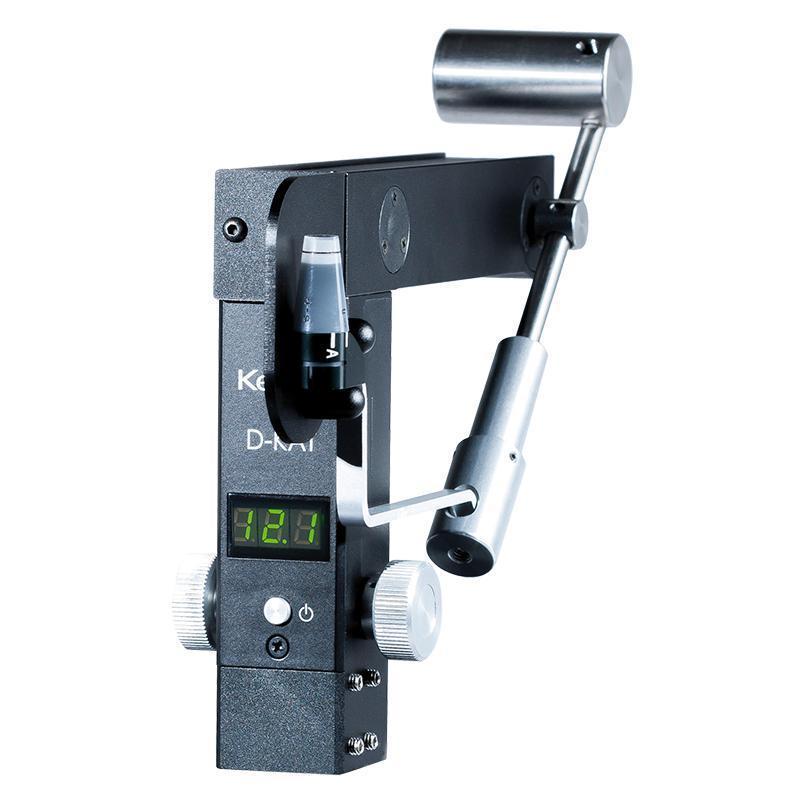

    Z Type

    (Fixed)

    For use with Zeiss-type slit lamps.


    2 Year Warranty

    Free Shipping!*

    Specifications

    Installation:

    Keeler digital T type

    Fitted to the guide plate on the optical axis for the microscope and illumination unit arm

    Keeler digital R type

    Mountable on post on microscope

    Measurement Range:

    5 - 65 mmHg (0.66 - 80.46kPa)

    Measurement Deviation:

    0.49 mN or 1.5% of measurement value, whichever is the greater

    Operating Temperature Range:

    From 10°C to 35°C

    Reverse Span:

    ≤ 0.49 mN

    Net Weight:

    Keeler digital T type

    0.37 kg (without accessories)

    Keeler digital R type

    0.58 kg (without accessories)

    Warranty Information:

    2 years against faulty workmanship, materials and labour. Warranty will be conditional on routine maintenance and will not cover calibration or mechanical issues caused as a result of lack of maintenance, poor use, incorrect transport or inappropriate storage conditions


    Comes with:

    Reusable doubling prism, the calibration check bar and either the Z (Zeiss) type, R type post, or the T type alluminium guide plate.

    Documents

    Brochure

    User's Guide
