Reichert

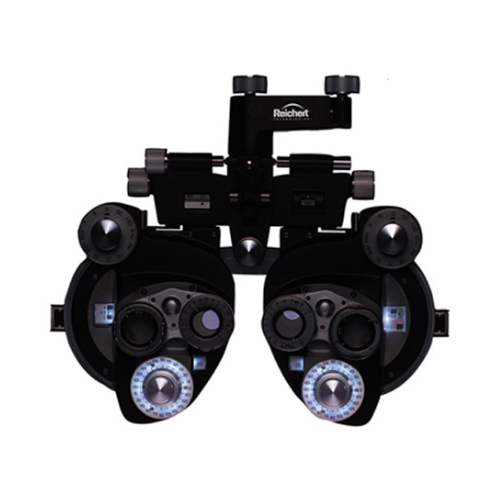

Illuminated Phoroptor Refracting Instrument

Illuminated Phoroptor Refracting Instrument

SKU: SKU:RI11636B

    Cylinder

    Low stock: 3 left

    Technical Specifications

    llluminated Phoroptor Catalog Numbers:
    11636 Minus Cylinder - Black
    11637 Plus Cylinder - Black

    Optional Accessories (no extra cost)*:
    Flip cross cylinder lenses:
    +.37D Flip cross cylinder
    + .50 Flip cross cylinder (Replaces the .25 flip cross cylinder lenses
    *No extra cost applies only if stipulated at the time of order

    Sphere:
    -19.00D to +16.75D
    0.25D Steps
    +0.12D Sphere in auxiliary dial included

    Cylinder Power:
    0.00D to 6.00D
    0.25D Steps
    Plus or minus lens system optional 0.12D and 2.00D accessory cells included

    Cylinder Axis:
    360 degrees (Double 0 to 180 degrees scale)
    5 degrees graduations

    Cross Cylinder:
    ± 0.25
    ± 0.37 or ± 0.05 Optional

    Prism:
    0 to 20 Prism Diopter, 1 Prism Diopter graduations

    P.D.:
    48 mm to 75 mm, 1 mm graduations

    Vertex Distance:
    13.75 mm (normal)
    Graduations extend range by 6 mm

    Reading Distance:
    5 to 28 inches
    Centimeter and diopter scales included

    Auxiliary Dial:
    10 lenses plus 2 open apertures

    View full details

    Overview

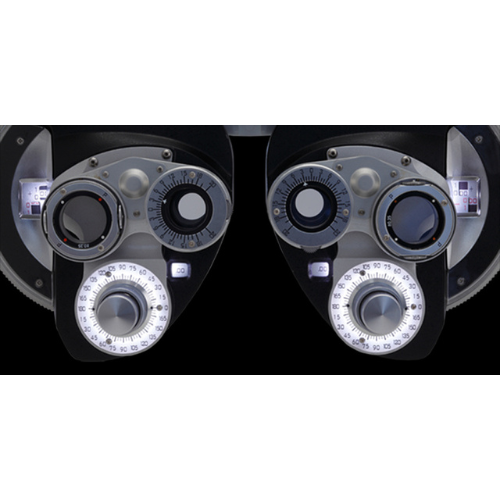

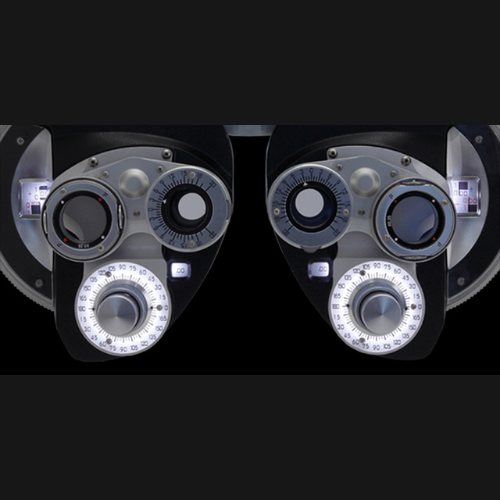

    You work hard to help improve your patient's eye sight, but who is looking out for yours? No more straining to read the dials in a dark room. With lighted sphere, cylinder power, and the cylinder axis scales, you can put the pen light down and leave the lights off through the entire refraction.

    Illumination is provided by cool-running, energy efficient LEDs (Light Emitting Diodes) that light only what you need to see without affecting the darkened refracting environment. The best of all they are maintenance free so you'll never need to change a light bulb.

    Every Phoropter comes with a limited lifetime warranty, the best in the industry

    The name and shape of the PHOROPTOR® is a registered trademark of Reichert, Inc.


    Included Accessories:

    ± .25 Flip cross cylinder
    + 1.50 Retinoscopic Lenses
    Accessory Case
    3 pair nylon face shields
    Rotochart
    Reading rod with card holder
