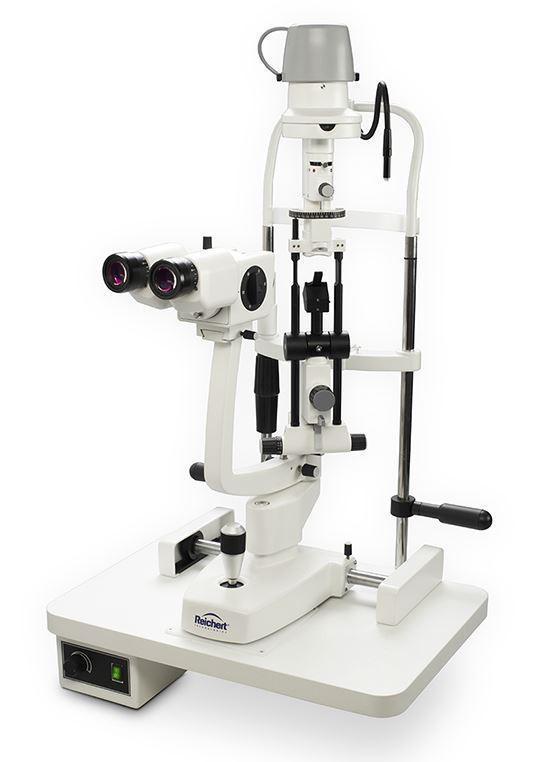

Reichert Xcel 455 Slit Lamp, Unit Module - Optics Incorporated
Reichert

Xcel 455 Slit Lamp, Unit Module
Free Gift


SKU:

Regular price $6,020.00 + Free Shipping!

Non-Stock Item. Allow up to 2 weeks for delivery




    Manufacturer Part Number: 15140

    Features:

    -Traditional tower illumination design
    -High efficiency multilayer optical coatings for enhanced light transmission
    -Wide-field optics
    -5 step magnification 6.5X, 10X, 16X, 25X, 40X
    -12.5X magnification eyepieces
    -Slit inclination up to 20 degrees
    -Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Filters
    -Halogen illumination
    -Smooth base movement and slit elevation with X Y Z joystick


    Specifications:

    Microscope
    Microscope Type: Galilean
    Magnification Change: 5 Step Drum Rotation
    Eyepiece: 12.5x
    Magnification Ratio: 6.5x, 10x, 16x, 25x, 40x
    Fields of View: 37, 24, 15, 9.5, 6 mm
    PD Range: 49 – 78 mm
    Diopter Adjustment: +/- 6 D
    Working Distance:

    Slit Lamp
    Slit Illumination: 6V 20W Halogen
    Slit Width: 0 – 12 mm
    Slit Length: 1.5 – 12.5 mm
    Slit Apertures: 0.3, 1, 3, 5, 9, 12 mm
    Slit Rotation: 0 – 180 Degrees
    Slit Inclination: -5, -10, -15, -20 Degrees
    Filters: Red Free, Heat Absorbing, Cobalt Blue, Neutral Density
    Illuminance Range: 0 to >50000 lux

    Base Movement Ranges
    Longitudinal (In/Out): 110 mm (4.3 in.)
    Lateral (Left/Right): 110 mm (4.3 in.)
    Vertical (Up/Down): 30 mm (1.2 in.)

    Chinrest
    Fixation Lamp: White LED
    Vertical Movement: 70 mm (2.8 in.)

    Power
    Voltage: 100 – 240 VAC
    Power Input (max): 56 – 73 VA
    Frequency: 50/60 Hz
    Fuses Time-Lag: (1.6A, 250V), 5x20 mm

    Dimensions/Weight
    Height: 66.0 cm (26.0 in.)
    Width: 45.7 cm (18.0 in.)
    Depth: 34.3 cm (13.5 in.)
    Table Dimensions: 46.5 x 32 cm (18.3 x 12.6 in.)
    Weight, Unpacked: 17.8 kg (39.3 lbs.)

    View the brochure
