VuPad Portable Ophthalmic Ultrasound-Sonomed Escalon-Optics Incorporated
Sonomed Escalon

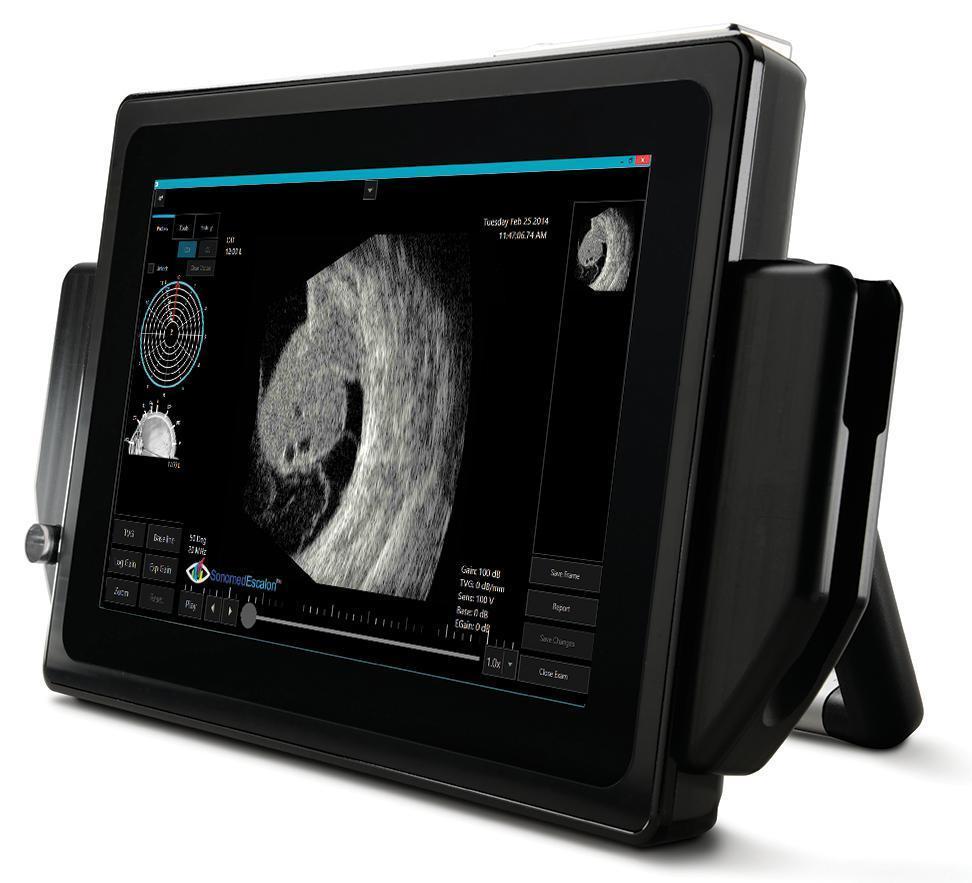

VuPad Portable Ophthalmic Ultrasound
Free Gift


SKU:

Call or Chat for price




    One System - Multiple Options

    Choose from any combination of modalities of A-Scan, B-Scan, UBM, and/or pachymetry.

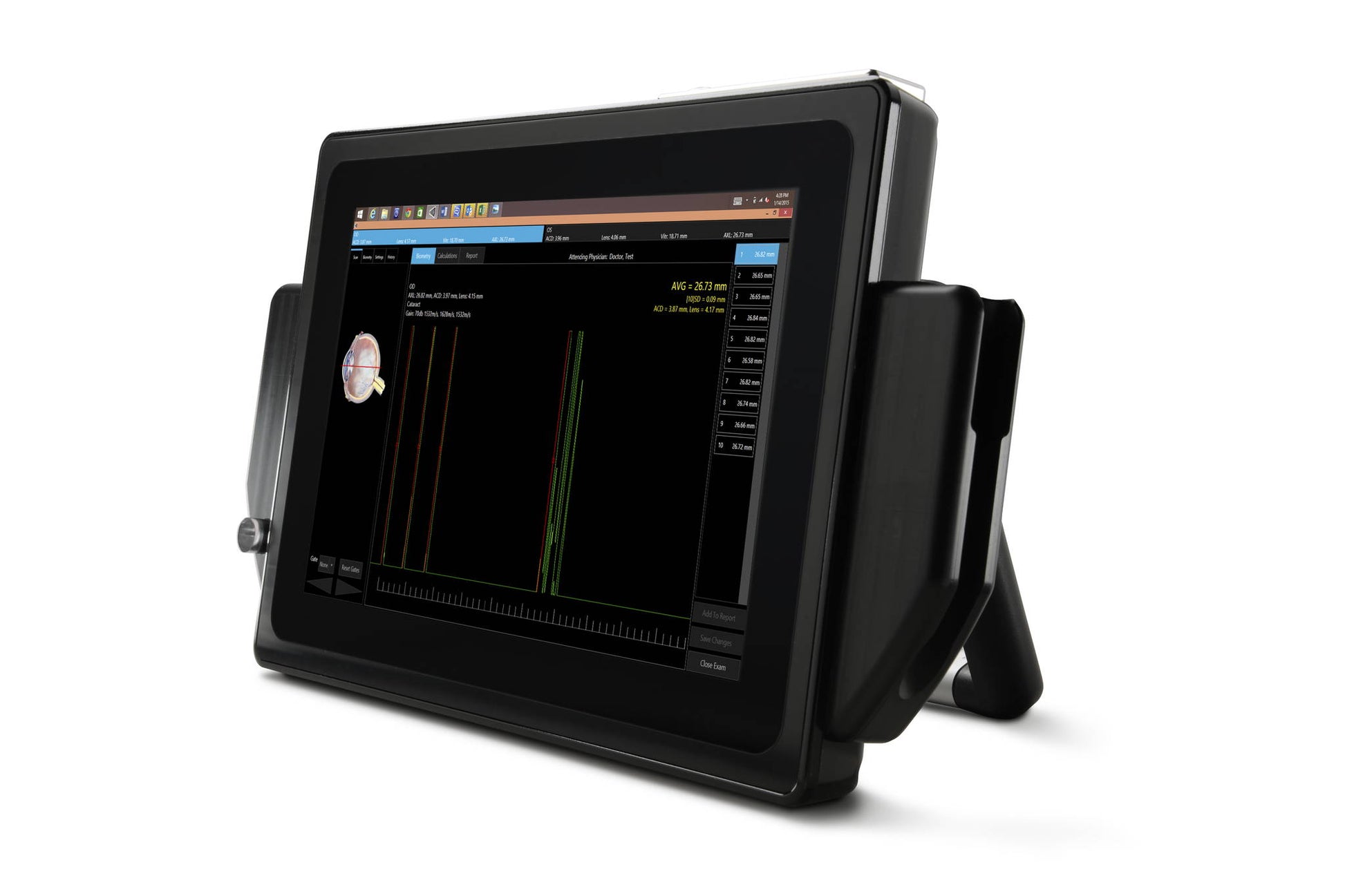

    A-Scan

    Immersion or direct contact A-scan

    Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)

    Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam

    Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis

    Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K

    B-Scan

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    12 and 20 MHz frequency transducers available for posterior B-scan

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

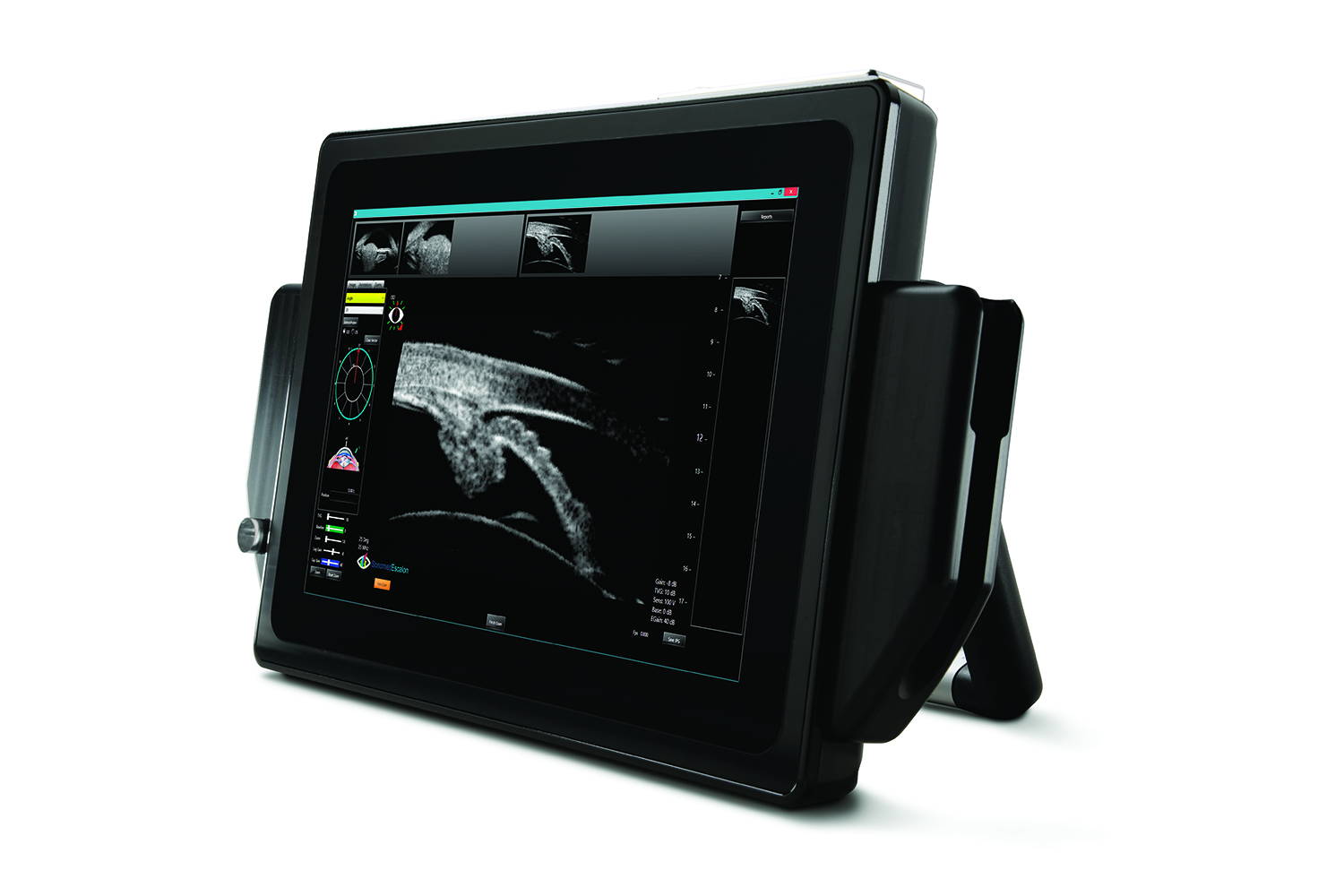

    UBM

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    35 and 50 MHz frequency transducers available for UBM

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

    UBM scan cap kit compatible with ClearScan® device for direct contact UBM scanning

    A-Scan

    Immersion or direct contact A-scan

    Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)

    Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam

    Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis

    Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K

    B-Scan

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    12 and 20 MHz frequency transducers available for posterior B-scan

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

    UBM

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    35 and 50 MHz frequency transducers available for UBM

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

    UBM scan cap kit compatible with ClearScan® device for direct contact UBM scanning

    A-Scan

    Immersion or direct contact A-scan

    Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)

    Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam

    Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis

    Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K

    B-Scan

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    12 and 20 MHz frequency transducers available for posterior B-scan

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

    UBM

    Unparalleled image quality with proprietary Enhanced Focus Rendering™

    35 and 50 MHz frequency transducers available for UBM

    256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)

    Capture 50-frame video clips at up to 20 frames per second

    Store unlimited images and up to 12 video clips in each exam

    UBM scan cap kit compatible with ClearScan® device for direct contact UBM scanning


    Industry-Leading Image Quality

    VuPad's superior UBM and B-scan image quality with Enhanced Focus Rendering and ultra high resolution touch screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.

    Industry-Leading
    Image Quality

    VuPad's superior UBM and B-scan image quality with Enhanced Focus Rendering and ultra high resolution touch screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.

    Industry-Leading Image Quality

    VuPad's superior UBM and B-scan image quality with Enhanced Focus Rendering and ultra high resolution touch screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.

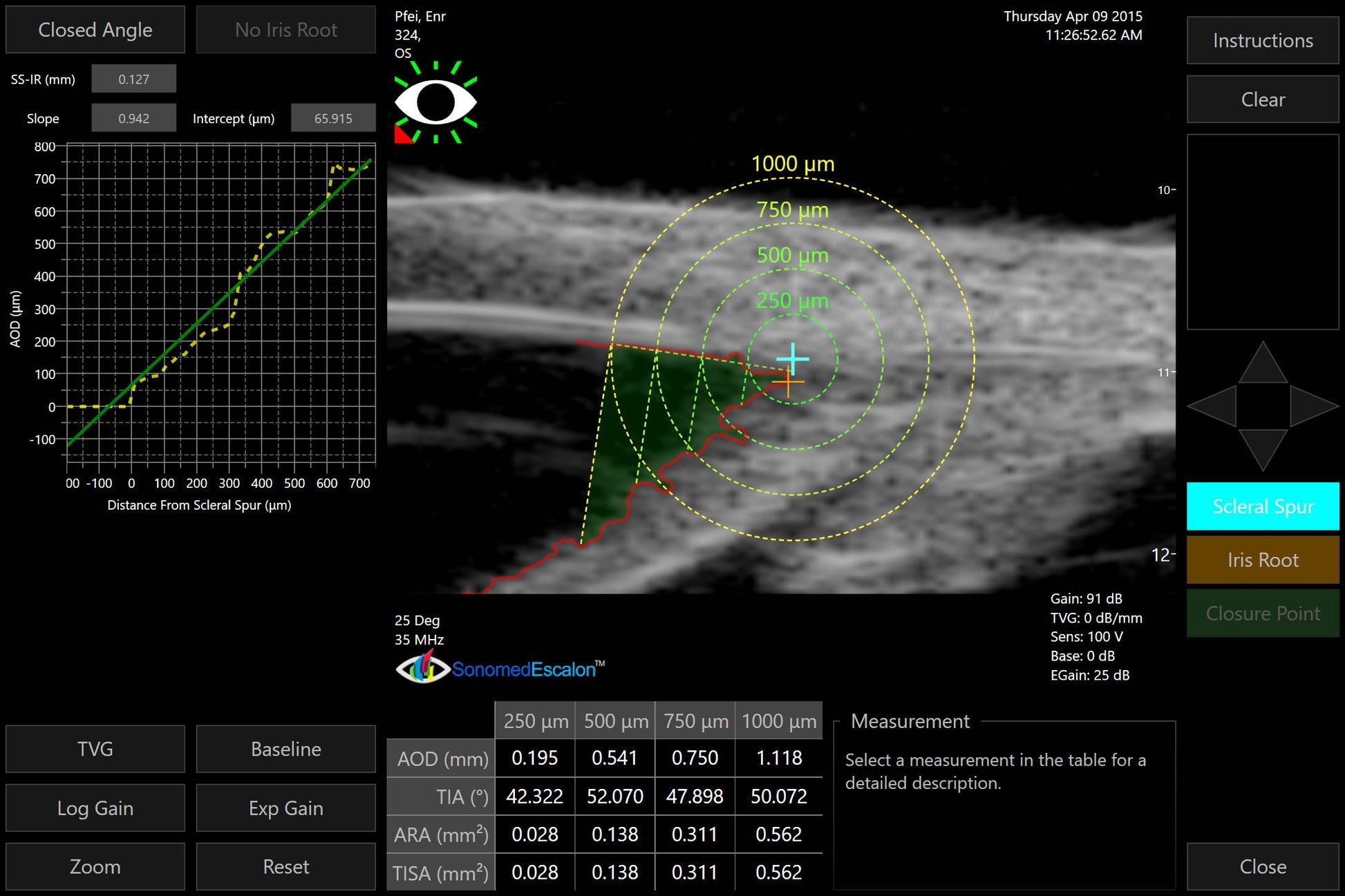

    Advanced Angle Analysis

    Allows accurate quantification and tracking of angle properties, including differences during mydriatic and miotic conditions.

    Advanced Angle Analysis

    Allows accurate quantification and tracking of angle properties, including differences during mydriatic and miotic conditions.

    Advanced Angle Analysis

    Allows accurate quantification and tracking of angle properties, including differences during mydriatic and miotic conditions.


    Intuitive, Efficient Workflow

    Quickly perform and review ultrasound exams with easy to use touch interface, preset scan modes to effortlessly optimize image quality for area of interest, frame-by-frame review of up to 12 video clips, use of touch pinch zoom, and more.

    Intuitive, Efficient Workflow

    Quickly perform and review ultrasound exams with easy to use touch interface, preset scan modes to effortlessly optimize image quality for area of interest, frame-by-frame review of up to 12 video clips, use of touch pinch zoom, and more.

    Intuitive, Efficient Workflow

    Quickly perform and review ultrasound exams with easy to use touch interface, preset scan modes to effortlessly optimize image quality for area of interest, frame-by-frame review of up to 12 video clips, use of touch pinch zoom, and more.


    Eye Tracking Alignment

    Provides real-time feedback to ensure proper alignment of UBM scans for sulcus-to-sulcus measurements.

    Eye Tracking Alignment

    Provides real-time feedback to ensure proper alignment of UBM scans for sulcus-to-sulcus measurements.

    Eye Tracking Alignment

    Provides real-time feedback to ensure proper alignment of UBM scans for sulcus-to-sulcus measurements.


    Connected - Integrated

    Easily connect VuPad to your network, wireless keyboard, external monitor, EHR, and/or PACS.

    Specifications

    • General
    • A-Scan
    • B-Scan
    • UBM
    • Pachymetry

    Manufacturer Part Number:

    A.580 (A-Scan only)
    B.580 (B-Scan only)
    BA.580 (A/B-Scan)
    U.580 (UBM only)
    BU.580 (B-Scan/UBM)
    BUA.580 (A/B-Scan/UBM)

    Controls:

    USB foot pedal
    Wireless keyboard and mouse

    System Memory:

    8 GB DDR3L 1600 MHz memory

    Hard Drive:

    500 GB SSD solid-state drive (standard)
    1 TB SSD solid-state drive (optional)

    Operating System:

    Windows 10 IoT Enterprise 2019 Multilanguage
    LTSC version ensuring 10 years of security updates without requiring version upgrade

    Connections:

    Two (2) USB 3.0 ports
    GigE Ethernet LAN port
    HDMI port
    Bluetooth 4.0
    WiFi 802.11n dual-band

    Data Exchange:

    DICOM-compliant (optional)

    Printers:

    Any Windows-compatible printer

    Reports:

    Detailed exam reports for printing or exporting

    Console Dimensions:

    13.3” w x 8.0” d x 2.0”h (33.8 cm x 20.3 cm x 5.1 cm)
    4.5 lbs (2.1 kg)

    Power:

    100-240 VAC, 50/60 Hz auto-switching medical-grade power supply

    Ultrasound Probe:

    10 MHz A-probe

    Scan Modes:

    Selectable immersion or direct contact A-scan with manual or automatic capture (cataract, dense cataract, aphakic, and pseudophakic modes)

    Measurements:

    Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous length
    Individual zone velocity selection
    Axial length average and standard deviation provided for up to 10 scans per exam
    On-board calibration

    IOL Formulas & Selection:

    Refractive IOL Formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, Haigis
    Post-Refractive IOL Formulas: Latkany Myopic, Latkany Hyperopic, Aramberri Double-K
    Integrated customizable lens database with selectable user profiles

    Diagnostic A-Scan:

    Optional diagnostic A-scan module
    8 MHz diagnostic A-scan probe

    Ultrasound Probes:

    Sealed magnetic-drive B-probes with 12 MHz or 20 MHz B-probes with focused transducers

    Scan Settings:

    Selectable scan setting profiles to optimize image quality, including presets for orbit, vitreous body, retina surface, and deep retina / choroid

    Scan Sampling:

    256-ray scan with 2048 sample points for each ray (> half-million sample points per transducer sweep)

    Scan Controls:

    Fully adjustable time-varied gain (TVG), baseline, log gain, and exponential gain (e-gain)
    Adjustable velocity (for eyes with silicone oil)

    Scan Position Indicator:

    One-click selection of axial or longitudinal scan clock position with eye model confirmation
    Free-form text for scan position details that auto annotate onto images and video clips

    Video Clips:

    Capture and store 50-frame video clips up to 20 fps
    Replay in real-time, scalable slow motion, or one frame at a time
    Store up to 12 video clips per exam, easily add or remove video clips from exam record

    Images:

    Separately save any number of individual frames from video clips as images, complete with annotation(s)

    A-Scan Trace:

    Superimpose arbitrary A-scan trace onto images with a single button click

    Measurement:

    Unlimited measurements using linear calipers and angle measurement tool

    Ultrasound Probes:

    HD magnetic-drive water path probe with 35 MHz or 50 MHz focused transducers

    Scan Settings:

    Selectable scan setting profiles to optimize image quality, including presets for sulcus-to sulcus, angle detail, motion picture, and high resolution

    Scan Sampling:

    256-ray scan with 2048 sample points for each ray (> half-million sample points per transducer sweep)

    Scan Controls:

    Fully adjustable time-varied gain (TVG), baseline, log gain, and exponential gain (e-gain)

    Scan Position Indicator:

    One-click selection of axial or longitudinal scan clock position with eye model confirmation
    Free-form text for scan position details that auto annotate onto images and video clips

    Video Clips:

    Capture and store 50-frame video clips up to 20 fps

    Replay in real-time, scalable slow motion, or one frame at a time
    Store up to 12 video clips per exam, easily add or remove video clips from exam record

    Images:

    Separately save any number of individual frames from video clips as images, complete with annotation(s)

    A-Scan Trace:

    Superimpose arbitrary A-scan trace onto images with a single button click

    Measurement:

    Unlimited measurements using linear calipers and angle measurement tool

    Analysis Tool:

    Angle analysis quantification tool
    Eye tracking alignment tool

    Accessories:

    Set of 4 immersion cups included

    Ultrasound Probe:

    20 MHz pachymeter probe

    Range:

    300-1000 microns

    Clinical Accuracy:

    ±5 µm

    Electronic Accuracy:

    ±1 µm

    Measurements:

    Automatic sensing algorithm
    32 instantaneous measurements averaged with standard deviation for each reading
    Auto calibration and probe test
    Adjustable corneal tissue velocity
    Central corneal thickness (CCT) and peripheral
    Selectable measure mode to take one reading at a time or auto-capture 5 readings successively
    Measurement review

    Scan Modes:

    Single point – single reading
    Single point – multiple readings
    Multiple points – single reading
    Multiple points – multiple readings

    IOP Correction:

    Auto IOP correction based on CCT
    Multiple published and customizable IOP correction formulas available
