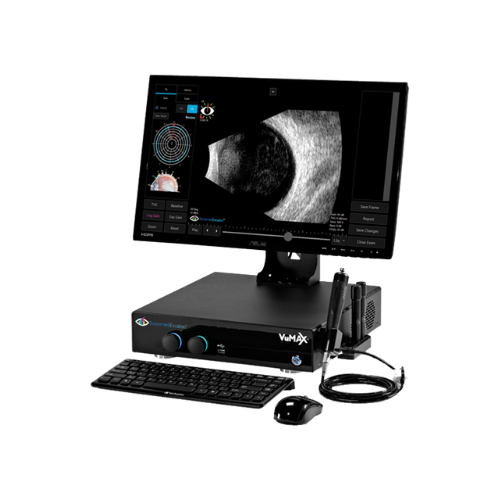

Configurable as a B-scan, UBM, or combination system with optional A-scan, the VuMAX HD is cutting edge technology providing unparalleled image quality with elegant and powerful usability. Yes, simply the best.

UNPARALLELED IMAGE QUALITY.

Hands down the gold standard in ophthalmic ultrasound. Unparalled UBM and B-scan image quality with Enhanced Focus Rendering™ and large ultra high resolution screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.

ELEGANT. INTUITIVE. EXCEPTIONAL.

Elegant user interface provides useful tools that are intuitive, simple, and efficient to use. Time-saving features such as selectable patient database display to easily search and access archive exam records. Document scan orientation with the single click of a button. Replay videos in real-time, slow motion, or frame-by-frame. Super-impose A-scan trace, perform linear and angle measurements, and annotate onto B-scan and UBM images. Auto calculation of axial length average and standard deviation, nine IOL formulas, and lens database for biometric A-scan.

UNPARALLELED UBM.

The VuMAX series from Sonomed Escalon has long been the gold standard in UBM imaging. Now with Enhanced Focus Rendering™ and other enhancements, the VuMAX™ HD delivers the most outstanding UBM images and video clips of the entire anterior chamber.

-Unparalleled image quality with proprietary Enhanced Focus Rendering™
-35 and 50 MHz frequency transducers available for UBM
-256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)
-Capture 50-frame video clips at up to 20 frames per second
-Store unlimited images and up to 12 video clips in each exam
-UBM scan cap kit compatible with ClearScan® device for direct contact UBM scanning
-Angle analysis
-Eye Tracking alignment feature

UNPARALLELED B-SCAN.

The all-new B-scan mode of the VuMAX™ HD produces truly outstanding imaging of the posterior segment that has become the new gold standard.

-Unparalleled image quality with proprietary Enhanced Focus Rendering™
-12 and 20 MHz frequency transducers available for posterior B-scan
-256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep)
-Capture 50-frame video clips at up to 20 frames per second
-Store unlimited images and up to 12 video clips in each exam

A-SCAN

-Immersion or direct contact A-scan
-Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)
-Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam
-Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis
-Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K
