Tomey

TMS-4N Corneal Topographer

TMS-4N Corneal Topographer

SKU: TMS-4N

    Technical Specifications

    MEASUREMENT
    Measurement type Placido ring cone
    Ring numbers 25
    Measurement points 6,400 maximum
    Measurement points on a ring 256
    Min. / Max. ring diameter φ 0.46 mm to 8.8 mm on 43 D model eye
    Corneal curvature radius
    measurement range
    5.5 mm to 10.0 mm
    Corneal curvature radius
    measurement accuracy
    ±0.02 mm

    CL OPTION ONLY
    Ring numbers 31
    Measurement points 7,300 maximum
    Measurement points on a ring 256
    Min. / Max. ring diameter φ 0.57 mm to 10.9 mm on 43 D model eye

    PERSONAL COMPUTER (REQUIREMENT)
    OS
    Windows® 7 Professional (32 bit, 64 bit)
    Windows® 8.1 Professional (64 bit)
    Windows® 10 Professional (64 bit)
    Windows® 11 Professional (64 bit)
    CPU Intel® Core™2 Duo processor or higher
    Memory 512 MB or higher
    Interface USB 2.0 (Connection with a main unit)
    Display (Resolution) 800 x 600 or higher

    REQUIRED SPECIFICATION OF THE ISOLATION
    Transformer Output more than 500 VA

    DIMENSIONS AND ELECTRICAL REQUIREMENTS
    Dimensions WDH 296 mm x 508 mm x 448 mm
    Weight 14 kg
    Voltage AC 100 to 240 V
    Frequency 50/60 Hz
    Power consumption 45 VA to 55 VA
    Display 5.7'' colour LCD

    View full details

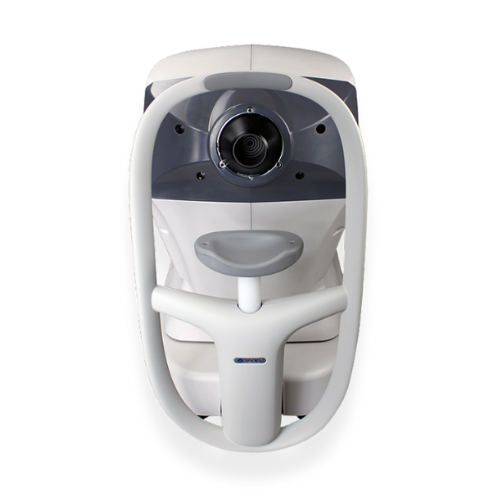

    The TMS-4N offers a high resolution, accuracy, and an easy operation. The placido light cone design eliminates nose and brow shadows and provides extensive corneal coverage.

    Features

    Auto shot function
    Fourier refractive analysis
    Keratoconus screening and other applications
    Easy database operation
    Multilingual operation
    Comprehensive software

    Corneal Topographer Continues to Set the Standard for Resolution, Accuracy & Corneal Coverage

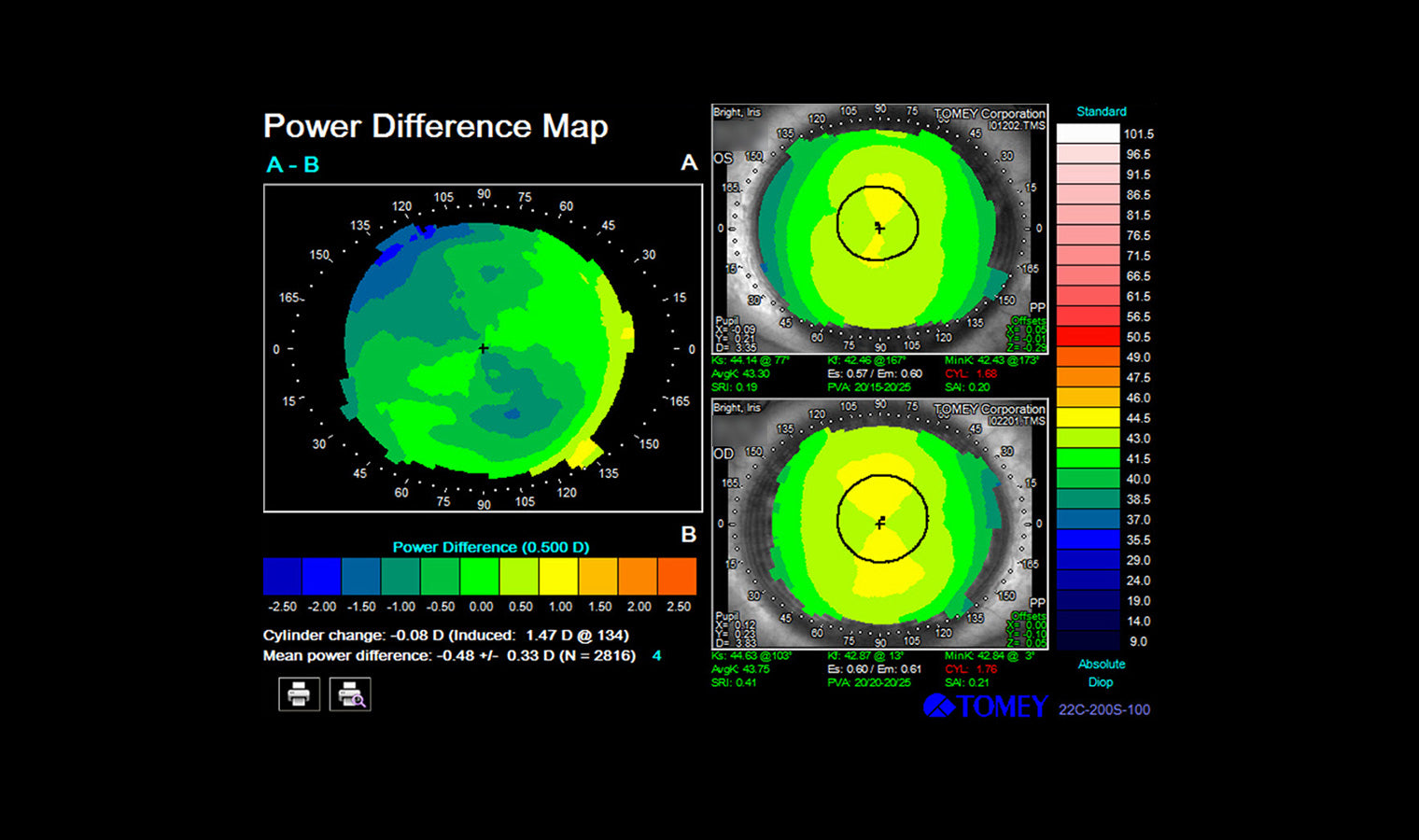

    TMS-4N has the comprehensive software: Single, Dual, Multiple and you can even customize your own map with favorite scale, map type and so on. Fourier Analysis provides you the refractive information with Spherical Equivalent, Regular Astigmatism, Asymmetry and Higher order irregularity. Fourier Analysis provides the refractive information with 3mm and 6mm diameter range. The software applications, Klyce Statistics, Enhanced Height and Height Change Maps are also available.

    Statistical Indices

    Simulated K, Minimum K, Average Corneal Power, Potential Visual Acuity, Surface Regularity Index, Surface Asymetry Index, Corneal Eccentricity Index, Irregular Astigmatism Index, Standard Deviation of Corneal Power, Analyzed Area, Elevation/Depression Power, Elevation/Depression Diame- ter, Simulated Keratometric Cylinder Change.

    Contact Lens Software

    User-defined Fitting Strategies, User-defined Lens Designs, Simulated Fluorescein Patterns, Sagittal Tear Film Plots, Adjustment of Position, Rotation and Tilt, User Modifiable Data Base, Order Form Printout, Automatic Transmission of Data to Optical Lab.
