Tomey

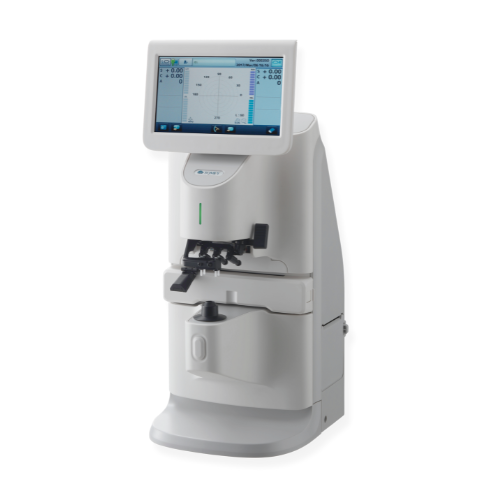

TL-6000 Auto Lensmeter with UV

TL-6000 Auto Lensmeter with UV

SKU: TMTL-6000

    $3,780.00
    $3,780.00
    Sale Sold out

    on backorder - ships when back in stock

    Technical Specifications

    MEASUREMENT RANGE
    Spherical power (SPH) ±25 D
    Cylindrical power (CYL) ±10 D
    Axial angle (AXIS) 0° to 180°
    Additional power -2 D to +10 D
    Prism power 0 Δ to 15 Δ

    MEASUREMENT INCREMENT
    Dioptre 0.01/ 0.06/ 0.12/ 0.25 D
    Prism 0.01/ 0.06/ 0.12/ 0.25 Δ

    MEASUREMENT PARAMETERS
    Wavelength 535 nm
    Transmittance of UV light The peak of the wavelength is 375 nm
    Transmittance of blue light The peak of the wavelength is 465 nm
    Measurement objects Spectacle lens, contact lens
    Diameter of the lens 20 mm to 120 mm > 5 mm for CL

    HARDWARE PARAMETERS
    Display 7.0" colour TFT-LCD, with touch panel
    Printer Thermal printer
    Output RS-232C, USB 2.0, Ethernet, WiFi

    DIMENSIONS AND ELECTRICAL REQ UIREMENTS
    Dimensions WDH 188 mm x 240 mm x 430 mm (when LCD is tilted)
    Weight approx. 5.5 kg
    Voltage 100 VAC to 240 VAC
    Frequency 50/60 Hz
    Power consumption 40 VA to 50 VA

    View full details

    Features:

    Hartmann sensor wavefront technology
    UV/Blue light measurement
    Lens mark recognition support
    LAN and RS-232C connection

    Wavefront technology with Hartmann sensor (117 points)

    Using 117 point Hartmann sensor wavefront technology in the TL-6000, measurement accuracy of vertically narrow progressive lenses has markedly improved.

    Simultaneous measurement of UV/Blue light and power

    By emitting measurement light, UV light (375nm) and Blue light (465 nm) simultaneously, it is possible to check UV/Blue light transmittance as well as conduct power measurements.

    Lens mark recognition support

    Displaying the grid patterns on the screen will help recognition of lens marks. Grid patterns are selectable.

    LAN and RS-232C connection

    Output the measurement data from each port of LAN and RS-232C.



    Documents:

    Brochure
