M&S Technologies

Smart System Pediatric PC-Plus

Smart System Pediatric PC-Plus

SKU: MSS-PCPLUS-USA-R

    Control Type

    Technical Specifications

    Auto-DVD Play; play any DVD instantaneously on the Smart System for education and fixation

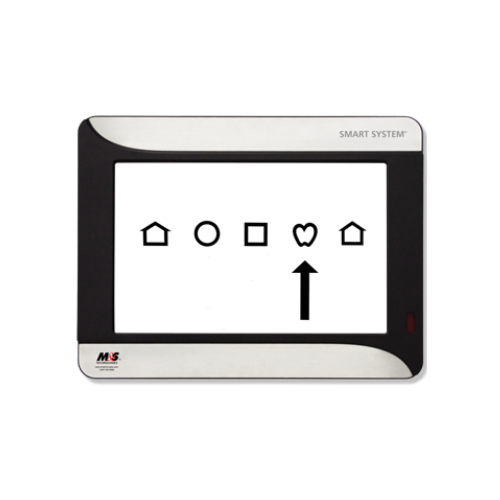

    Optotypes include Lea Symbols and Numbers, Snellen letters, Sloan letters, Allen pictures and Tumbling E’s

    Fixation Videos; choose from 8 different commercially licensed fixation videos to fixate your youngest patients

    Non-Accommodative Fixation Target that moves within a small target area giving the eye-care professional the required fixation when needed without being affected by accommodation

    Threshold Distance Stereo Testing with either red\blue anaglyphs or liquid crystal shutter glasses. Both applications can use either contour stereo or random dot stereo for quick, efficient analysis

    Letter Contrast and Linear Contrast Sensitivity Testing with normative data using linear sine wave gratings

    Patient Education Interface with Eyemaginations and EyeMotion

    eLVT (electronic Low Vision Testing); including 20/3200 optotype size, testing at 3 m, 1 m and 25 cm, Berkeley Rudimentary Low Vision Test, and more

    eETDRS & ATS protocols; approved for clinical trials and accepted as a valid testing mechanism by the FDA

    Secondary Calibration Distance; switch seamlessly between the two distances to accommodate a clinical trial requirement, low vision patient or a patient in a wheelchair

    Contour Stereo Testing
    Customizable Astigmatic Dial
    Random Dot Stereo Testing
    Customizable Cycling Single Line/Multi-line/Single Letter
    Unlimited and Customizable .jpg images for education or marketing

    View full details

    Designed especially for the Pediatric Eyecare Professional

    The Smart System PC-Plus was developed for, and by, pediatric eye care professionals. Features such as hands-free fixation allow the doctor to control the child’s visual attention easily. This is helpful while performing a retinoscopy. Or the illuminated LCD keypad is designed to display what is being projected on the LCD monitor. This allows the pediatric eye care professional to maintain their focus on the child.

    Smart System FirstTest

    A quick and easy protocol for visual acuity screening

    The Smart System FirstTest™ Vision Screening software was developed to increase the quality of vision screening of children. It captures amblyopia, strabismus, and identifies differences in the development of the eyes at a very early age. This technology includes a standardized test by age group, thereby reducing errors and interpretation. Furthermore, it conforms to the vision screening requirements of the America Academy of Pediatrics.

    A significant advantage of FirstTest is that the screening can be conducted by a non-eye care professional. In a high volume screening environment such as schools, city or county vision programs, volunteers, parents, or others can conduct the screening with minimal training. The user simply selects letters or symbols, type of test, and age of the child or patient. Then, the screening begins.

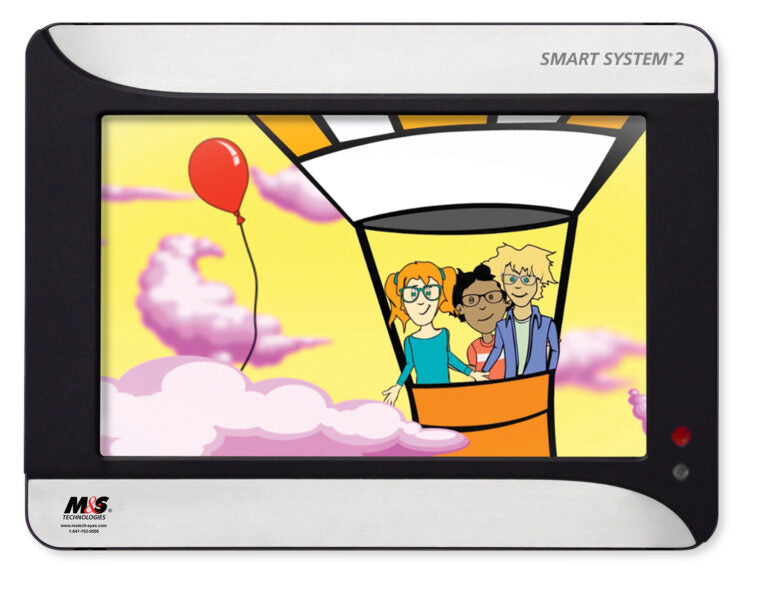

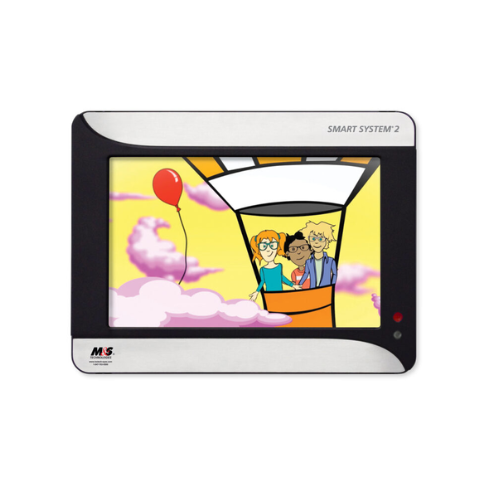

    Fixation Animations and Videos

    This exclusive feature allows the user to access the content playing in the media drive for instant fixation for pediatric eye care when needed. There’s no waiting for the disk to spin-up, nor is there a need to select chapters or titles. Users can create their own patient education videos to play on demand. The PC-Plus comes with several short, colorful animated clips and 5 new animated movies for fixation. Alternatively, users can choose from 8 different commercially-licensed fixation videos. The animations are 1-2 minutes long. Each video is between 25-35 minutes long. All of them will auto-repeat after completion.
