• Kowa Exam Room SL-19 Handheld Portable Slit Lamp
1 2

Kowa

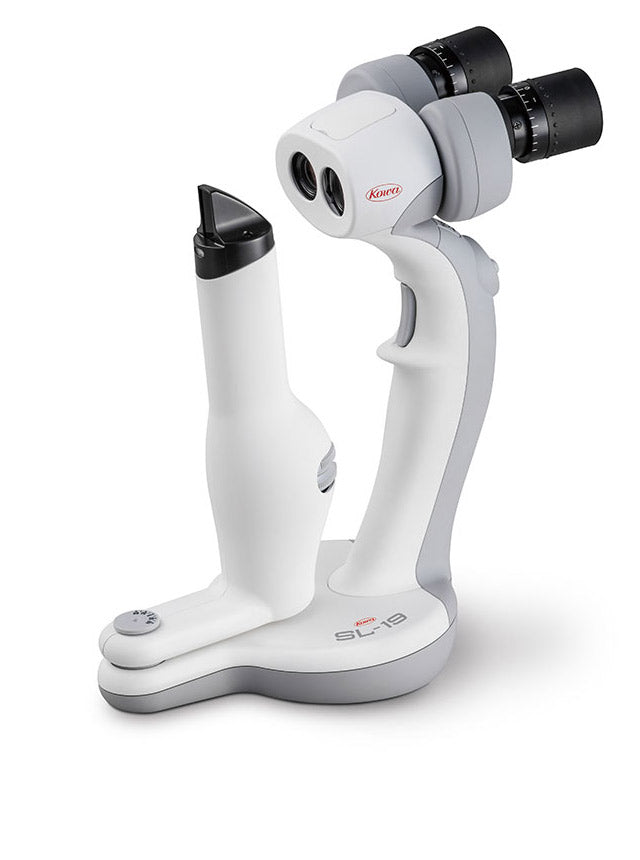

SL-19 Handheld Portable Slit Lamp

SL-19 Handheld Portable Slit Lamp

SKU: KOASL19

    $4,500.00
    $4,500.00
    Sale Sold out

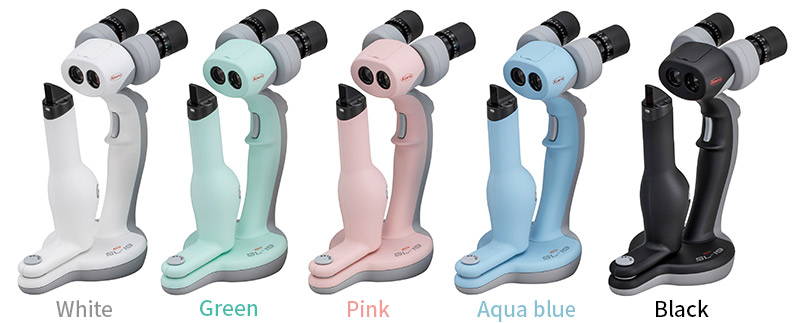

    Color

    on backorder - ships when back in stock

    Technical Specifications

    Microscope Angle of convergence: 13°
    Magnification: 10X and 16X
    Working distance:
    Approx. 100 mm (at 10X magni cation)
    Approx. 80 mm (at 16X magni cation)
    Interpupillary adjustment range: 55 to 72 mm
    Diopter adjustment range: -8 to +5 D
    Slit width/shape: 0.1, 0.2, 0.8 mm / Spots (circular)
    Slit length: 1, 5, 12 mm: xed, and 1.5 to 12 mm: continuously variable
    Spot size: φ1, φ5, φ12 mm and shapes of ellipse
    Light intensity adjustment: 200 to 20,000 lux: continuously variable
    Slit's illuminating angle: 60° : horizontal circumference
    Light source: White LED
    Background Illumination light: White LED : 3 step switching
    Blue illumination light: Blue LED : 3 step switching
    Power supply:
    Input : DC3.0 - 4.8 V
    Power consumption : Up to 3.6 VA
    Dimensions/weight: 107 (W)×197 (D)×238 (H) mm / 620 g (No batteries)

    View full details

    Sophisticated Design

    Smooth and roundish design aimed to reduce stress and mental strain of patients.

    Easy fitting with trigger grip and optimized grip diameter.

    The Lightest Handheld Slit Lamp

    By incorporating glass fiber reinforced resin, the weight was reduced. The lighter device minimizes operator fatigue.

    Longer Operating Time

    Owing to an energy saving system design, the SL-19 has a continuous illumination time at maximum intensity for 360 minutes.
    ・When used with 3 x A A Ni-MH batteries. (1,900 mAh)

    New Features

    Background illumination simultaneously usable with slit lamp.（fig.1）

    Blue light illumination button conveniently located on handle.（fig.2）

    Continuously variable slit length. (1.5-12 mm)



    Documents:

    Brochure
