DGH Technology, Inc.

Scanmate B-Scan

Scanmate B-Scan

SKU: DGH8000

    Technical Specifications

    B-Scan Probe Type: Single USB powered Probe
    Transducer Frequency: 12 MHz and 15 MHz
    Depth Selection: 3 cm, 6 cm (12 MHz) and 5 cm, 10 cm (15 MHz)
    Sector Scan Angle: 60°
    Electronic Resolution: 0.015 mm
    Clinical Resolution: 0.100 mm
    Unit Dimensions:
    Dimensions (Probe): 6.70” (170.1 mm) L x 1.15” (29.21 mm) D

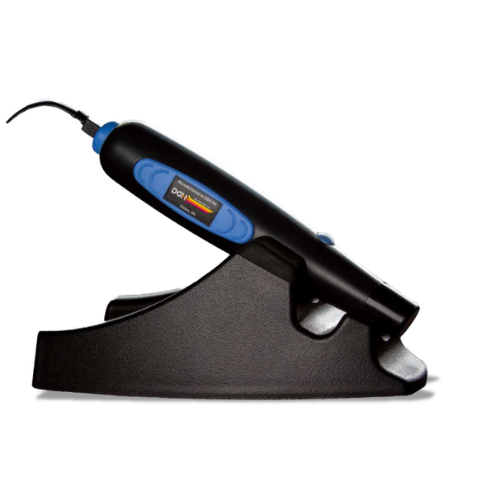

    Dimensions (Probe Holder): 7.20” (182.88 mm) x 3.45” (87.83 mm) W x 3.00” (76.20 mm) H
    Weight: 2 lbs (Complete Kit), , 1lbs (Unit Only)
    Connection Type: USB (USB 2.0 or higher)
    Software Features
    · Position Map Tool for Annotation of Probe Orientation

    · A-Mode Overlay Displays the Amplitude of Reflectivity for the Selected Vector

    · Measurement Tool for Area, Distance and Angle

    · Near, Mid and Far Gain Controls as well as Image Intensity and Contrast

    · Text Annotation Tool

    · Adjustable Video Loop (16-256 Frames)

    · Select One (1) Large Image or up to Six (6) Small Images per Report Page

    Record Management
    · Quick Search for Patient by Last Name, First Name or ID

    · .JPG image Export

    · .AVI Video Export

    · .PDF Reports Export

    · EMR/EHR Compatible

    Scanmate B Software Application Requirements
    Hardware Requirements:
    Intel i3 or higher at 2.0+ GHz, 8GB RAM or higher, 128 GB SSD/HDD or higher

    2 x 2.0 USB, 1080 x 800 display resolution or higher

    Operating System Requirements:
    Windows 10 or higher (64 bit)

    MS Server 2016 or higher (64 bit)

    View full details

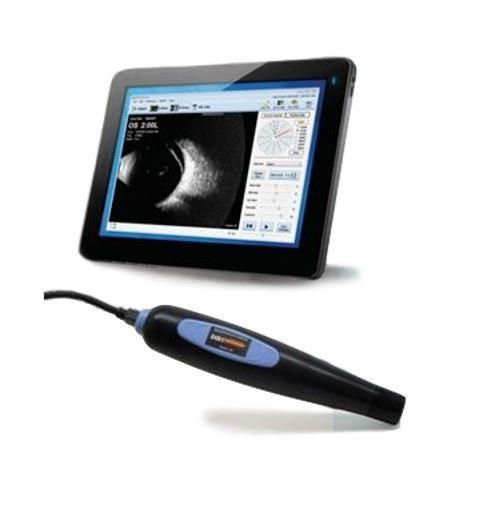

    THE ULTRA-PORTABLE B-SCAN

    The DGH 8000 B-Scan (Scanmate B) combines the most advanced ultrasound technology available with the processing power, data storage and connectivity advantages of a personal computer. The DGH 8000 is equipped with dual 12.5 MHz and 15 MHz frequencies in the same probe, which results in a unique depth selection range from 3 cm and 6 cm in 12.5 MHz mode and 5 cm and 10 cm in 15 MHz mode.

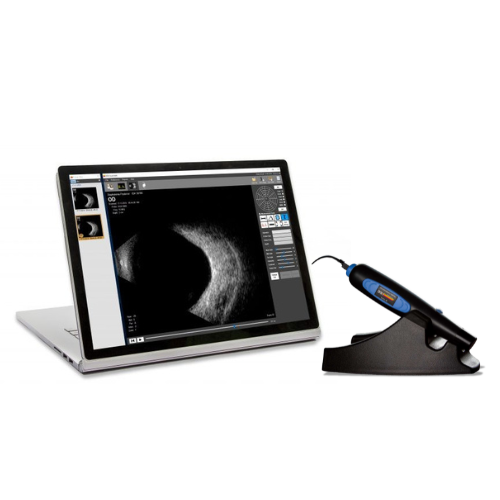

    It is a self-contained portable imaging system that interfaces with a Windows® computer via a USB 2.0 port. High resolution video loops and still images are obtained rapidly, and post processing features include playback, gain adjustment, contrast and image intensity variation, distortion-free zoom, distance, angle and area measurement and annotation tools. Patient data can be stored on a local computer or on a centralized network location where it can be accessed by multiple users. Patient records are fully searchable and can be exported in a format that is compatible with EMR/EHR systems.

    B-SCAN DIAGNOSTIC APPLICATIONS

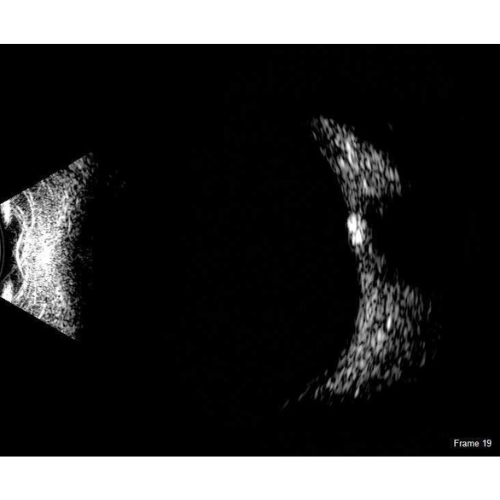

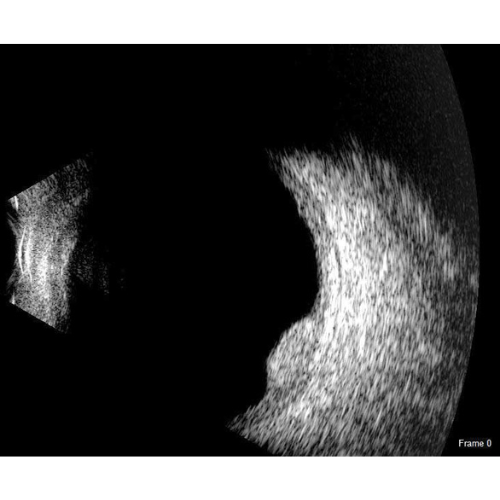

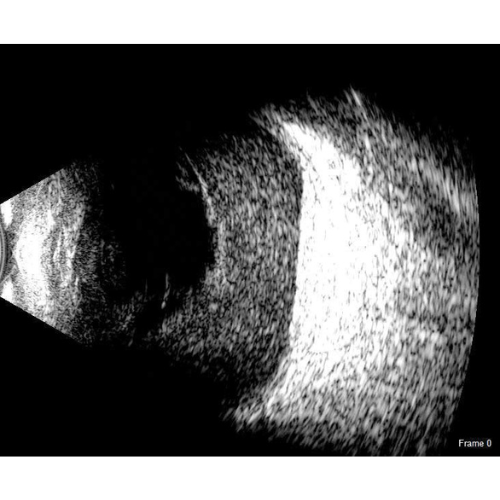

    The DGH 8000 B Scan delivers clear images for the posterior portion, even when optical clarity is compromised:

    Retinal Detachments
    Vitreous Detachments
    Vitreous Humor Pathologies
    Staphylomas
    Posterior Segment Pathologies
    Choroidal Pathologies
    Optic Nerve Pathologies
    Scleral Thickening

    Accomplish an examination in 4 simple steps:

    Step 1: Patient Data : Populate the necessary fields and you are ready to acquire images.

    Step 2: Acquire Images: Click on desired modality icon, and start acquiring images and data.

    Step 3: Image Quantification and Processing: The software offers tools to measure distance, area, and angles, and an annotation tool for notating images. Images can be enhanced by adjusting intensity, contrast, and gains (near, mid, and far).

    Step 4: Reporting: The Scanmate Software offers a variety of report templates that summarize critical information and are print and .PDF ready.

    Documents:

    Brochure
