DGH Technology, Inc.

Scanmate A-Scan

Scanmate A-Scan

SKU: DGH6000

    Technical Specifications

    A-Scan Probe Type: Internal, fixed single-element transducer.

    A-Scan Mode of Measurement: Contact or Immersion (using Prager Shell® immersion shell)

    Transducer Frequency: 10 MHz

    Axial Length Measurement Range: 15.00 mm – 40.00 mm

    ACD Measurement Range: 2.00 mm – 6.00 mm

    Lens Thickness Measurement Range: 2.00 mm – 7.50 mm

    Resolution: 0.01 mm

    Repeatability: ± 0.03 mm STDEV (Immersion)

    IOL Formulas: SRK II, Binkhorst, SRK/T, Holladay 1, Hoffer Q, Haigis

    IOL Formulas (Post Refractive): Double K (SRK/T), History Derived, Clinically Derived (Shammas), Refraction Derived, Contact Lens Over-Refraction

    Eye Types: Aphakic, Normal, Cataract, Dense Cataract, Pseudophakic (Silicone/PMMA, Acrylic), Normal / Silicone Oil Vitreous

    Dimensions: 5.73” (145.54 mm) L X 3.45” (87.63 mm) W X 1.50” (38.1 mm) H

    Weight: 2 lbs (Complete Kit), <1 lbs (Unit Only)

    Probe Dimensions : 2.75“ (69.85 mm) Long X 0.25” (6.35 mm) Diameter

    Connection Type: USB (Micro USB to USB 2.0 or higher)

    Measurements Features
    Audible Feedback for Probe Alignment, Corneal Compression detection, fully configurable velocities, save video and individual A-Scan measurements, Automatic and Manual measurements modes

    Report Features
    Single Page IOL Calculations report, A-Scan measurement review page, Customizable Report Options, Print to Local or Network Printer, Axial Length Progression Report (Myopia Management), export as .pdf.

    Hardware Requirements:
    Intel i3 or higher at 2.0+ GHz, 4GB RAM or higher, 128 GB SSD/HDD or higher
    2 x 2.0 USB, 1280 x 800 display resolution or higher

    Operating System Requirements:
    Windows 10 or higher (64 bit)
    MS Server 2016 or higher (64 bit)

    View full details

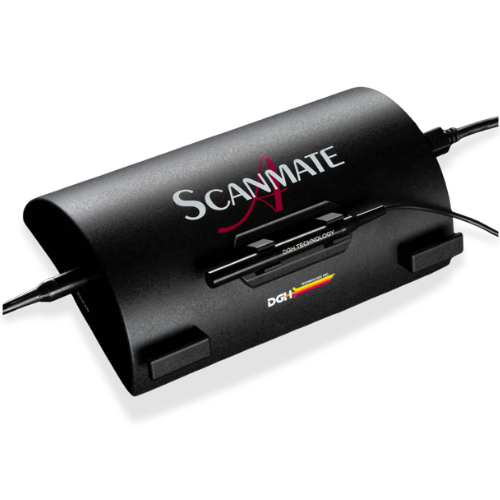

    A UNIQUE ULTRA-PORTABLE A-SCAN

    The innovative DGH 6000 A-Scan (Scanmate A) offers clinicians an unmatched level of usability and accuracy. Unique measurement guidance features assist in achieving optimal measurement values. These features allow the user to focus on application technique while the device’s software performs real-time waveform analysis and provides immediate feedback to the user.

    The DGH Software supports multiple IOL formulas, including post-refractive formulas. A-Scan measurements can be taken via direct corneal contact or via water immersion method (Prager Shell® included).

    MONITORING AXIAL LENGTH PROGRESSION

    The DGH 6000 A-Scan is tailored to meet the needs of your myopia management program. In addition to providing consistent, accurate and reliable axial length measurements, the Axial Length Progression Report charts the axial length changes of each patient over a period of time.

    TOTAL SOFTWARE SOLUTION

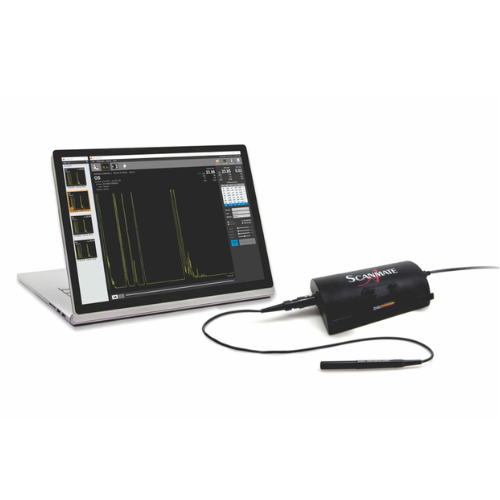

    The Scanmate Software combines the most advanced ultrasound technology available with the processing power, data storage and connectivity advantages of a personal computer. The DGH A-Scan software is capable of delivering customized Axial Length progression reports for your myopia management patients. Patient records are fully searchable and can be exported in a format that is compatible with EMR/EHR systems. The Scanmate software is designed to work on a Windows® computer. The DGH 6000 Scanmate A plugs into the USB 2.0 port of a Windows® computer that you may already have in your office or clinic*.

    * See Technical Specifications tab for minimum computer requirements.

    Step 1: Patient Data : Populate the necessary fields and you’re ready to acquire measurements.

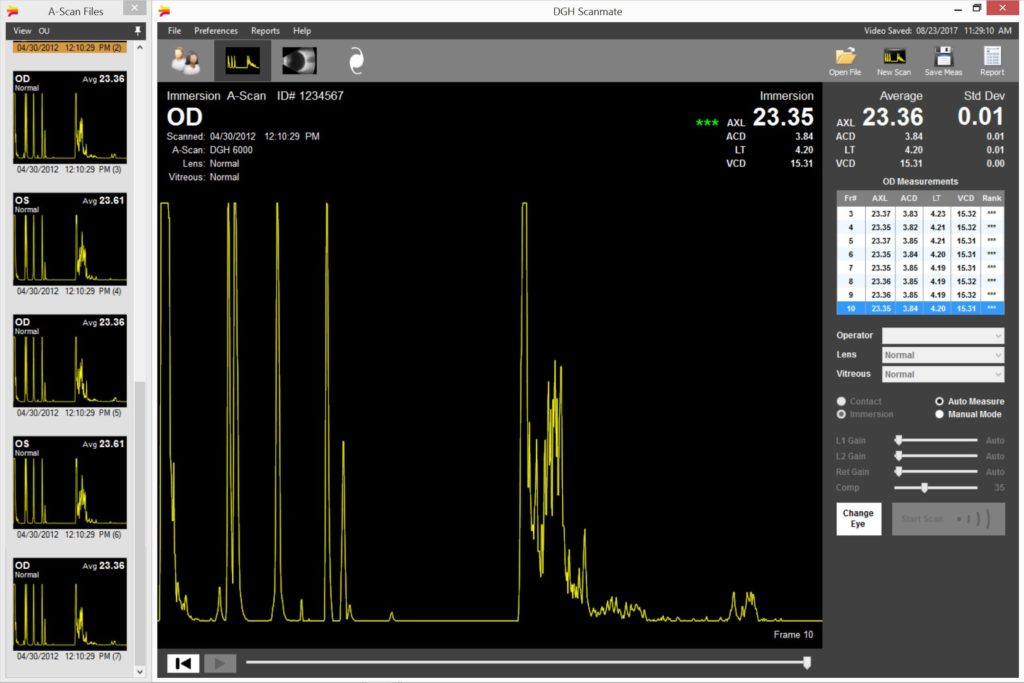

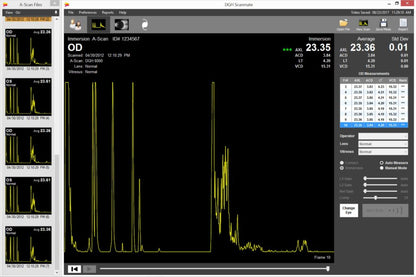

    Step 2: Acquire measurements: Click on A-Scan modality icon, and start acquiring A-Scan data aided with audible feedback eliminating need for reacquiring data.

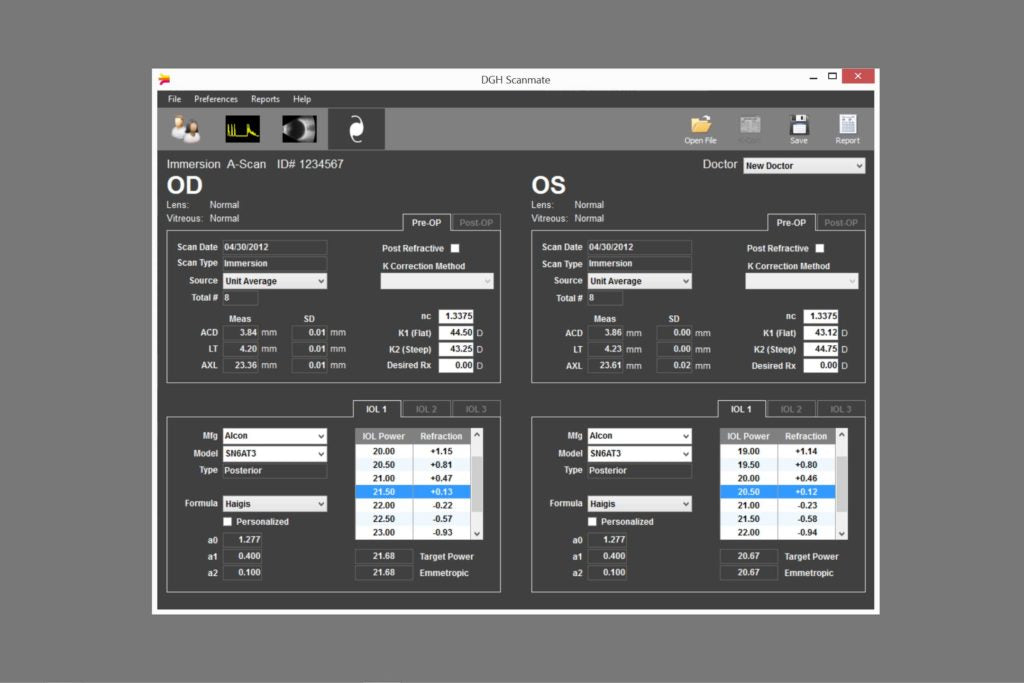

    Step 3: IOL Calculations: Click on the IOL icon, enter required data and software will perform calculation.

    Step 4: Reports: The Scanmate Software offers a variety of report templates that summarize critical information and are print and .PDF ready.



    Documents:

    Brochure   User Manual
