Tomey

RC-800 Auto-Refractor/Keratometer

RC-800 Auto-Refractor/Keratometer

SKU: TMRC-800

    Technical Specifications

    Measurement Ranges

    Refractometory
    Sphere: -25.00D to +22.00D (VD=12.0mm)
    Cylinder: 0D to ±10.00D (VD=12.0mm)
    Axis: 0° to 180°
    Minimum Pupil Dia: Ø2.0mm
    Measurement time: 0.2 second/single eye (data taking time)

    Keratometory
    Range: 5.00mm to 11.00mm
    Corneal Refraction: 30.68D to 67.50D (n=1.3375)
    Corneal Astigmatism: 0D to 10D (n=1.3375)
    Axis: 0° to 180°
    Measurement area: Ø3mm (at 8.00mm corneal curvature)
    Measurement time: 0.1 second/single eye (data taking time)
    One vision, Two sharp eyes with Our Innovation

    PD Measurement range 50 to 86mm
    Corneal diameter measurement
    Measurement range:10.0 to 14.0mm
    Display unit:0.1mm
    Pupil diameter measurement
    Measurement range:1.0 to 10.0 mm
    Display unit:0.1mm
    Built-in Printer Thermal printer
    Data output type RS232C / USB-D
    Display 5.7 inch color liquid crystal display
    Dimensions and weight 297(W)x500(D)x448(H)mm
    Approx. 17kg
    Power Requirements
    AC 100V to 240V
    50 / 60 Hz
    80VA to 100VA

    View full details

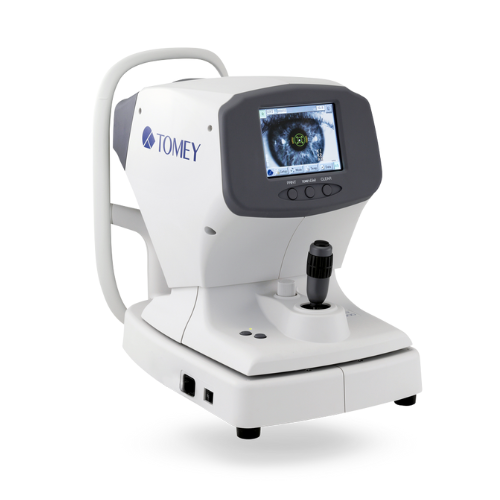

    The TOMEY auto ref-keratometers are an integral part of modern eye diagnostics. Highly accurate measurements in conjunction with a very short examination time and easy handling make working with the TOMEY RC-800 fast and professional. You can operate and align the RC-800 with a combination of joystick and touch screen – all in a very short time.

    Product Features

    Highly Accurate
    Simple to Use
    Diameter Measurement of Cornea and Pupil
    High Speed Printer
    Auto Shot
    Color Touch Screen

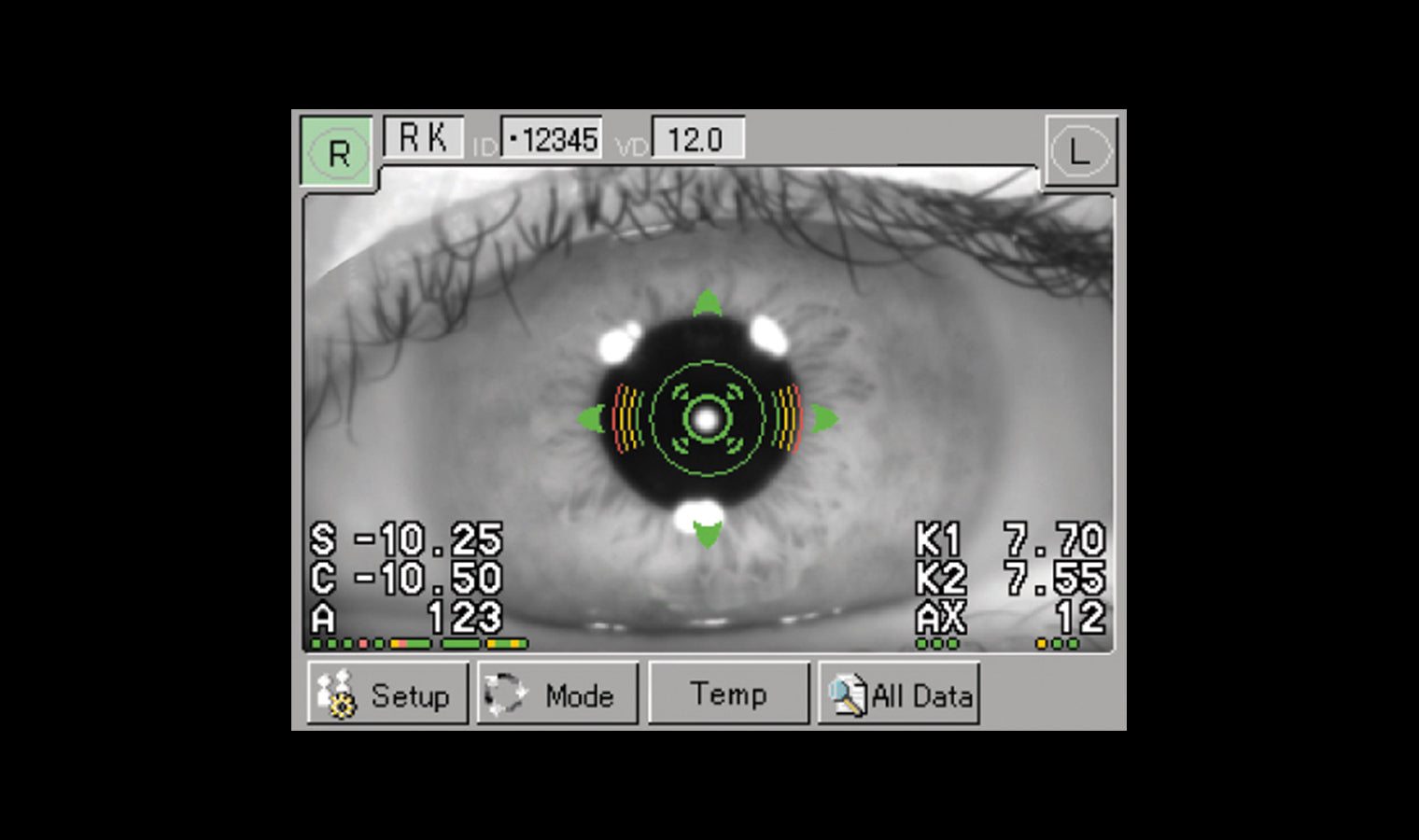

    Refractometry

    Simple handling of the fine adjustment and measurement by yourself.
    Fogging is applied automatically for each measurement for more accurate results.


    Keratometry

    Short consecutive measurements and time provide reliable data.
    Measurements at φ3.0mm (R = 8.0mm) give you enough information for contact
    lens fitting.

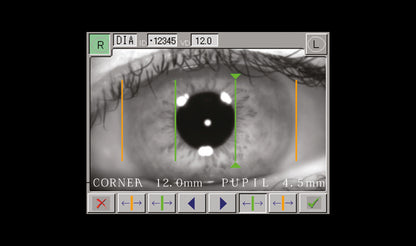

    Diameter Measurement of Cornea and Pupil

    Easy measurement by moving the two cursors on the display to the boundaries of
    Cornea or Pupil.



    Documents:

    Brochure
