Tomey

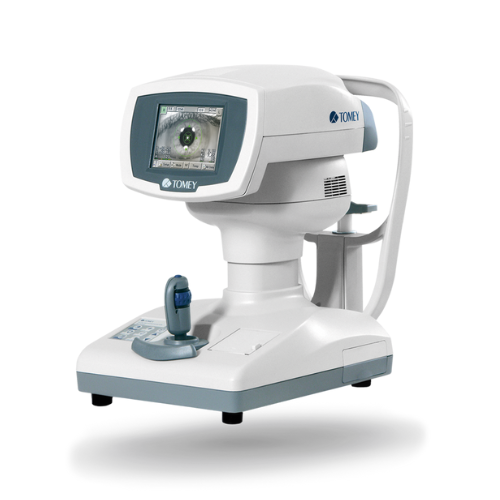

RC-5000 Auto-Refractor/Keratometer

RC-5000 Auto-Refractor/Keratometer

SKU: TMRC-5000

    Technical Specifications

    REFRACTIVE POWER MEASUREMENT

    SPHERICAL REFRACTIVE POWER (S)
    Measurement range
    -25.00 D to +22.00 D (at VD=12.0 mm)
    Display unit
    0.01 D, 0.12 D, 0.25 D
    Minimum pupil diameter
    Ø 2.2 mm

    CYLINDRICAL REFRACTIVE POWER (C)
    Measurement range
    0.00 D to ±10.00 D (at VD=12.0 mm)
    Display unit
    0.01 D, 0.12 D, 0.25 D

    ASTIGMATISM AXIAL (A)
    Measurement range
    0° to 180°
    Display unit
    1°

    CORNEAL CURVATURE RADIUS MEASUREMENT

    CORNEAL CURVATURE RADIUS (K1, K2, AVG)
    Measurement range
    5.00 mm to 11.00 mm
    Display unit
    0.01 mm

    CORNEAL ASTIGMATISM AND AXIS (C, A)
    Measurement range (C)
    0 D to 10 D (n=1.3375)
    Measurement range (A)
    0° to 180°
    Measurement area cornea
    Ø 3.0 mm / Ø 6.0 mm (at 8.00 mm corneal curvature)

    AUXILIARY FUNCTION
    PD range
    50 mm to 86 mm

    MAIN UNIT
    Built-in printer
    Thermal printer
    Output
    RS-232C
    Display
    5.7'' colour LCD

    DIMENSIONS AND ELECTRICAL REQUIREMENTS
    Dimensions WDH
    300 mm × 493 mm × 466 mm
    Weight
    approx. 19 kg
    Voltage
    100 VAC to 240 VAC
    Frequency
    50/60 Hz
    Power consumption
    130 VA to 150 VA

    View full details

    Product Features

    Automatic Measurement
    Power Joystick
    Refractometry
    Keratometry
    Diameter Measurement of Cornea and Pupil

    Automatic Measurement

    Use power assist joystick for rough alignment
    Touch the center of the pupil on the display with your fingertip and the RC-5000 will automatically align and begin measurements
    Press the R/L icon on the display and the instrument will automatically move to and measure the other eye
    Printing is automatic

    Refractometry

    Normal Mode: Fogging is applied automatically for each measurement for more accurate results
    Quick Mode: Fogging is applied a needed for consecutive measurements
    IOL/CAT Mode: This mode is used to measure cataract or pseudophakic eyes

    Keratometry

    Short consecutive measurements and time provide reliable data
    Measurements at f 6.0mm (R=8.0mm) as wekk as at f 3.0mm give you enough information for contact lens fitting
    Base curves of contac lense are stored, categorized and suggested manufactures are automatically printed

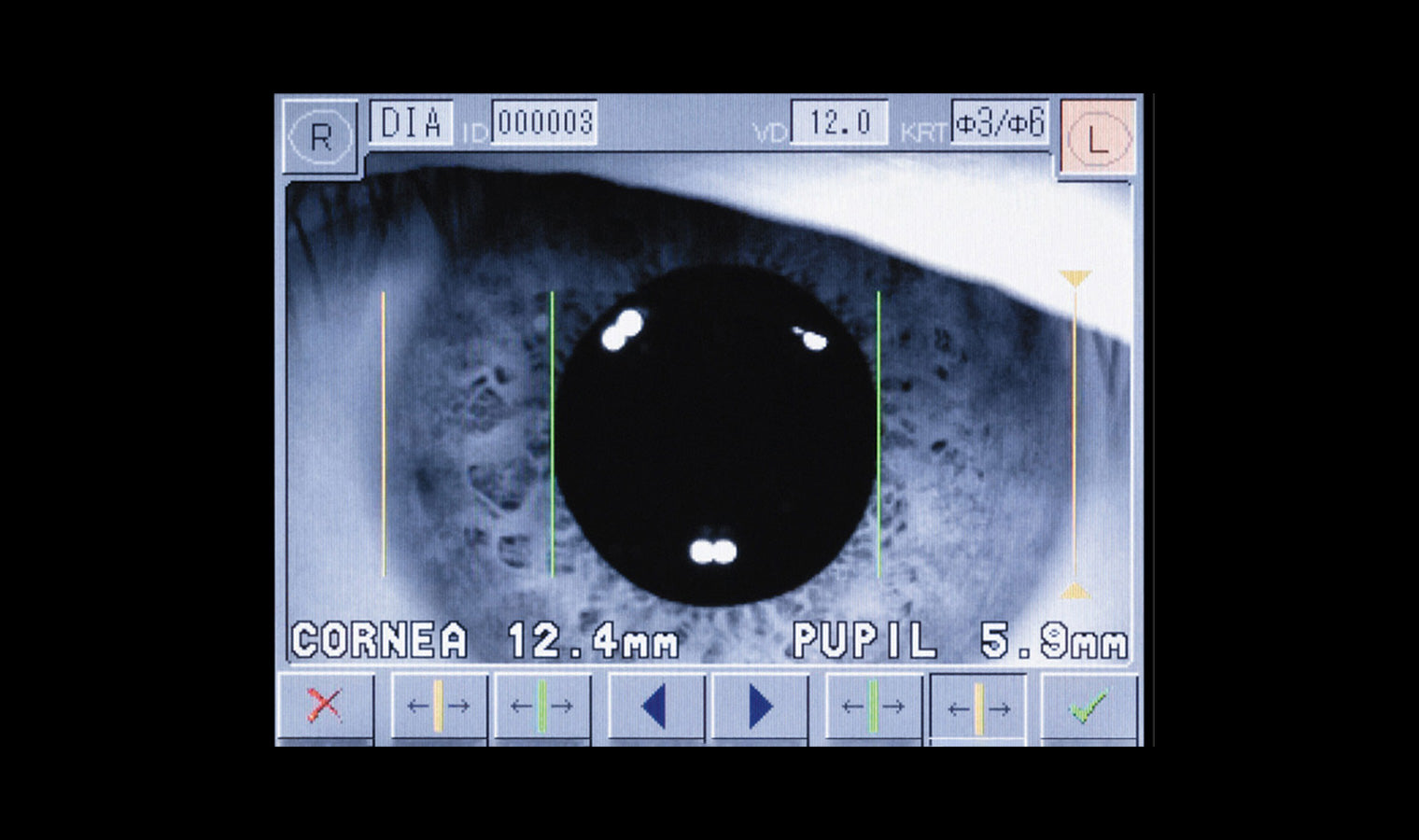

    Diameter Measurement of Cornea and pupil

    Measurement can be done easily by moving the two cursors on he display to the boundary of Cornea or Pupil. This is useful for deciding the diameter of contact lense and for other contact lens fitting practices.

    Power Chinrest

    This chin can be moved by pushing the buttons on the front panel. No need to reach to the chin rest manual adjustments.
