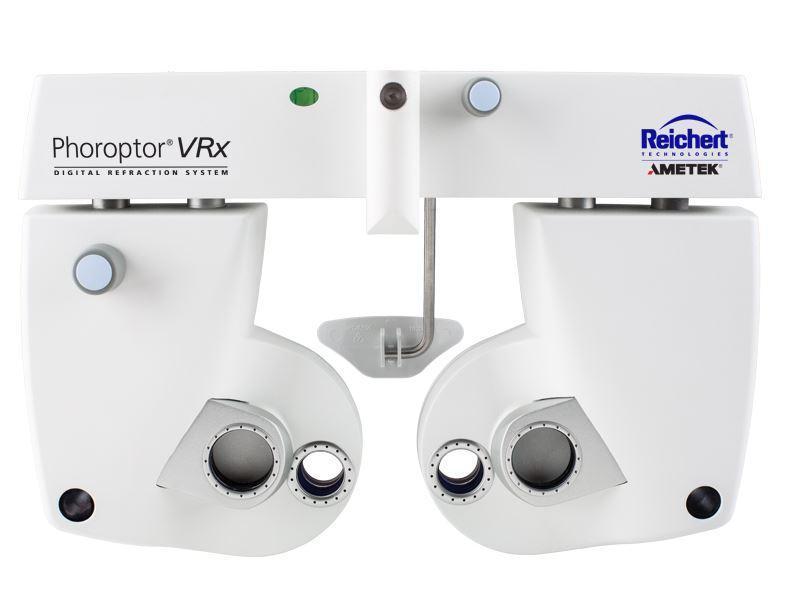

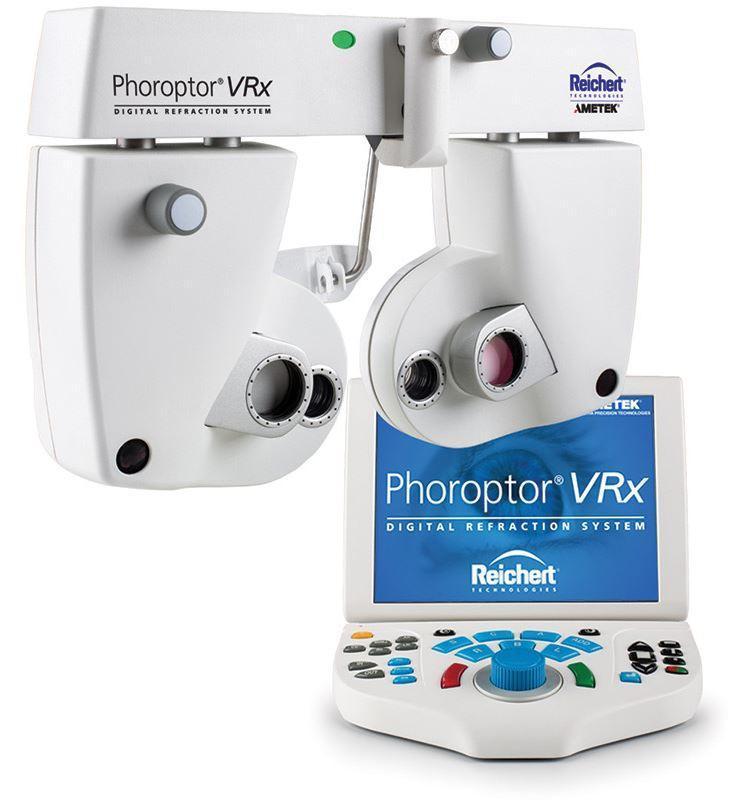

Phoroptor® VRx - Digital Refraction System

SKU: SKU:RI16241

Prism Without Prism With Prism

Technical Specifications

16241 - Phoroptor VRx, Middle Mount
Includes: Phoroptor VRx Head Assembly, Central Unit, Controller

16242 - Phoroptor VRx with Prism, Middle Mount
Includes: Phoroptor VRx Head Assembly, Central Unit, Controller

Phoroptor Head:

Spherical Effects
+17.75 to -22.25 D
Steps
0.25 and 1.0 D

Cylinder Power
-8.0 to +8.0 D
Steps
0.25 and 1.0 D

Axis Adjustment
0° to 180°
Steps
1° and 10°

Cross Cylinder Test
±0.25 D

Prismatic Effects (Optional)
0.20 Prism Diopter per eye
Steps
0.50 Prism Diopter per eye 0.25 Prism Diopter per eye

Corneal Vertex Distance
16 mm

Pupil Distance
50 to 80 mm
Steps 1 mm binocular

Convergence
400 mm

Height Level of Eyes, adjustment
±3 mm

Leveling
via bubble level

Free Aperture
19 mm

Thickness of Housing at the Viewing Aperture
26 mm

Width x Height x Depth (at PD = 64 mm)
31 x 20.3 x 7.1 cm (12.2 x 8 x 2.8 in.)

Weight With Mount, Without Prism Compensator
4.42 kg (9.75 lb)

Weight With Mount, With Prism Compensator
4.65 kg (10.25 lb)

Weight Without Mount, Without Prism Compensator
3.95 kg (8.70 lb)

Weight Without Mount, With Prism Compensator
4.17 kg (9.20 lb)

Controller with Display:

Controller - Width x Height x Depth
23.4 x 4.6 x 16.8 cm (9.9 x 1.5 x 6.9 in.)

Display - Width x Height x Depth
22.4 x 15.7 x 1.5 cm (10 x 7 x 2.8 in.)

Display Size - Diagonal
10.4 in. (1024x768 pixel resolution)

Weight
2.9 kg (6.4 lb)

Central Unit:

Physical Specifications

Width x Height x Depth
20.1 x 8.9 x 26.7 cm (7.9 x 3.5 x 10.5 in.)
Weight
3.2 kg (7.1 lb)

Electrical Specifications

Input Voltage
100 - 240V~

Frequency
50 - 60 Hz

Current (max.)
60 VA

Fuses
T2AL 250V

Ports (1 each):
Phoroptor
Controller (Keypad)
Projector (Acuity System)
Printer
Instrument 1 I/O
Instrument 2 I/O
EMR Port
Transfer Port

Device Compatibility

Lensmeters:
Reichert LensChek Plus
Reichert LensChek Pro
AL200 Auto Lensometer
AL500 Auto Lensometer
AL700 Auto Lensometer
Hoya AL-3100
Humphrey/Zeiss LA-XXX
Huvitz CLM-3100
Huvitz HLM-1
Huvitz HLM-9000
Nidek LM-600P
Nidek LM-970
Nidek LM-1000P
Nidek LM-1200
Tomey TL-XXXX
Topcon CL-XXX
Visionix/Luneau L70
Visionix/Luneau VX40
Zeiss Visulens 500

Auto Refractors:
Reichert OptoChek Plus
Reichert RK600
Reichert RK700
Canon R-XX
Canon RK-XX
Canon RK-F1
Canon RK-F2
Humphrey HARK-XXX
Huvitz HRK-XXXX
Huvitz MRK-XXXX
Kowa KW-2000
Marco AR-30
Nidek AR-1/ARK-1
Nidek AR-800
Nidek ARK-XXXX
Nidek OPD-Scan II
Nidek OPD-Scan III
Nidek RKT-7700
Nidek Tonoref II
Nikon Retinomax K2
Nikon Retinomax K+3
Nikon Speedy K
Right Medical Retinomax K2
Right Medical Retinomax K+3
Right Medical Speedy K
Tomey RC-800
Tomey TC-4000
Tomey RC-5000
Topcon KR-1
Topcon KR-1W
Topcon KR-800
Topcon KR-800S
Topcon KR-800PA
Topcon KR-8000/8000P
Topcon KR-8800
Topcon KR-8900
Topcon RM-8000
Topcon RM-8800
Topcon RM-8900
Visionix VX-100
Visionix VX-110
Visionix/Luneau L67
Zeiss iProfiler
Zeiss Visuref 100

Projectors:
Reichert ClearChart 4 Series
Reichert ClearChart 3P
Reichert ClearChart 2
Reichert AP250
L29 Typ 17D
M3000
M&S Smart System 20/20
Polastar

EMR Compatibility

Compulink *
Crystal Practice Management *
EMR Logic/Optimed
Epic
EyeMD EMR
Eye Cloud Pro
First Insight Maximeyes *
IFA Systems *
Management Plus
MD Intellesys
Medflow (Allscripts)
My Vision Express
Next Gen
OD Link
Officemate/Eyefinity *
Practice Director
Revolution EHR
Visual Eyes *

(* denotes bi-directional communication)

View full details

Smallest design. Biggest impression.

With the most compact digital refractor head available, Phoroptor VRx is non-intimidating and allows for greater patient visibility. The sleek, refined and high-tech styling of Phoroptor VRx will impress all your current patients and help gain new ones.

More cylinders. More horsepower.

Refinement of cylinder power and axis can be accomplished using the familiar Jackson Cross Cylinder or the innovative Smart Cylinder method where cylinder power and axis are automatically bracketed based on the amount of cylinder in the patient’s prescription. Phoroptor VRx also features a Split Cylinder mode, where patients are simultaneously presented with two targets.

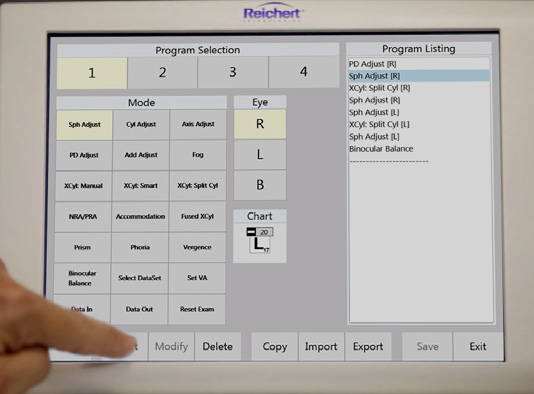

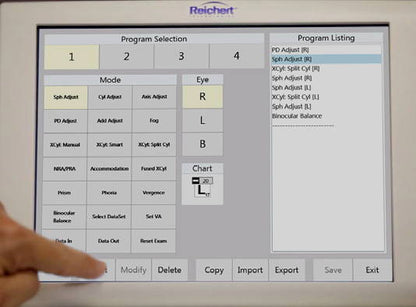

Pre-Programmed & Programmable Tests

To increase efficiency and allow refraction to be delegated to trained technicians, Phoroptor VRx has pre-programmed and programmable test options. You can choose from pre-programmed tests including astigmatism, phoria, binocular balance, and near vision. Customize up to four user programmable sequences that can be easily modified or conveniently shared between Phoroptor VRx systems.

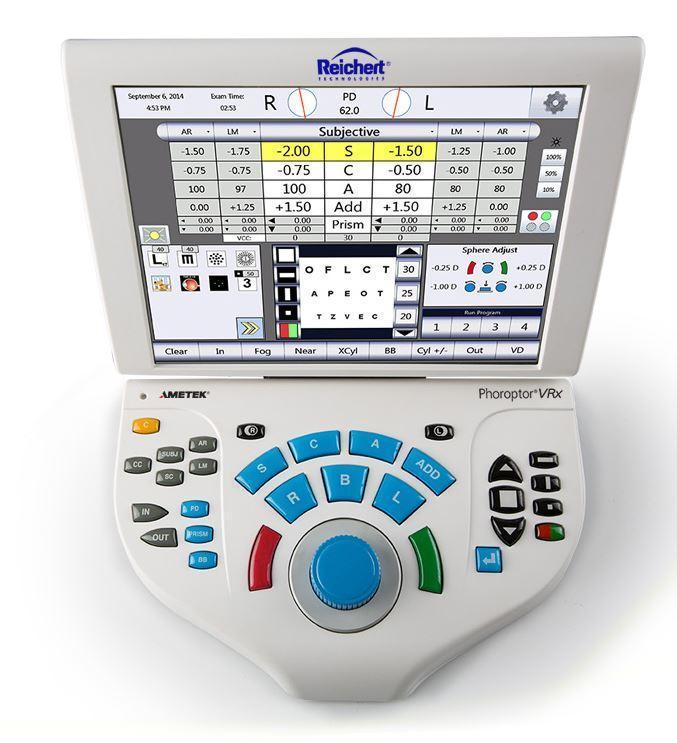

Precise handling and control.

The Phoroptor VRx controller features a logically and ergonomically arranged keypad, designed to enhance the user experience. Buttons are grouped based on functionality for easy access: gray for data, blue for refraction, and black for acuity. Buttons are also LED backlit for better visibility in dimly lit exam rooms.

Effortless Integration

Phoroptor VRx integrates with an extensive list of EMR systems, removing the risk of transcription error and increasing patient throughput. Phoroptor VRx can take advantage of an EMR system’s capability of bi-directional communication, allowing you to import and export refraction data.

The Most Advanced Phoroptor

Phoroptor VRx easily adapts to your practice, allowing you to rapidly perform all of the functions of a manual Phoroptor, and so much more, while comfortably seated next to your patient.

Documents:

Brochure User's Guide Quick Reference Guide

Standard Included Accessories:
•  Dust Cover - Phoroptor Head
•  Dust Cover - Controller
•  Phoroptor Cable
•  User’s Guide
•  Decimal Card Holder or Snellen Card Holder
•  Power Cord 115V or Power Cord 230V
•  Card Beam Assembly
•  Card Illuminator
•  Face Shield Kit (2 sets)
•  Quick Reference Card

Optional Accessories:
• Thermal Printer
•  Wireless Dongle Kit 16250 - Bluetooth connection to ClearChart 3P, AL200
•  Wireless Dongle Kit 16251 - Bluetooth connection to ClearChart 2
•  Wireless Dongle Kit 16253 - Bluetooth connection to AP250, AL700, RK700
•  Wireless Dongle Kit 16254 - Bluetooth connection to RK600
•  Wireless Dongle Kit 16255 - Bluetooth connection to AL500, Computer
•  Wireless Dongle 16233 - Single Bluetooth dongle w/ modem paring cable
