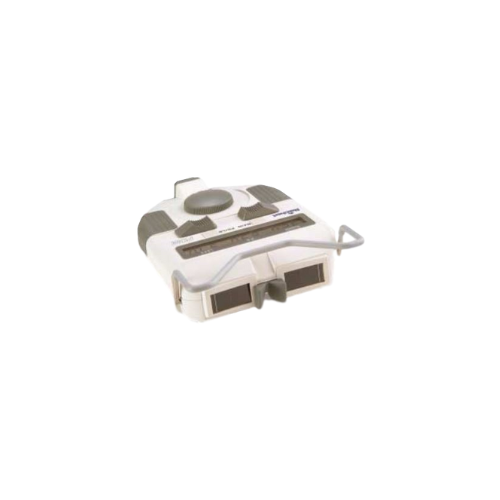

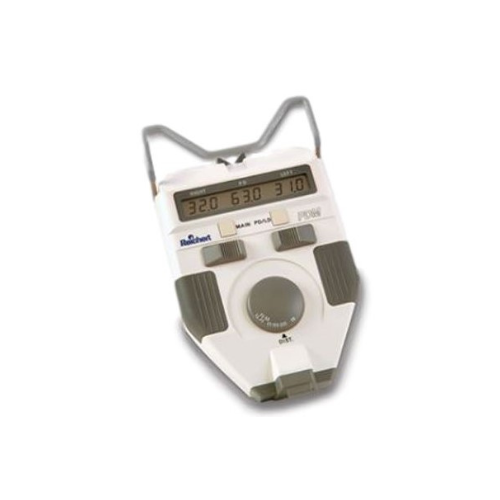

PDM Digital PD Meter

Manufacturer Part Number: 15020

Easy and Accurate Operation
Obtaining accurate inerpupillary measurements with the PDM is easy. Operators simply align the measuring lines to the Purkinje images on the patient's corneas. Measurement data can be obtained for a single eye, or both eyes, and results are accurate to within 0.5 mm. Interpupillary distance for a range of focusing points can be obtained by selecting the appropriate focus distance on the circular dial. The PDM's LCD displays measurement data in a clear, easy-to-read format.

Ergonomic Design
The PDM is ergonomically designed to be easy to hold and measure at the same time, while the forehead bar fits the patient's forehead comfortably. The PDM controls operate smoothly and are easy to adjust.

Long Battery Life
The PDM automatically switches off after one minute of inactivity to ensure long battery life. In addition, the patient fixation target is illuminated by a low-power LED, further extending battery life and ensuring virtually maintenance-free operation.

Reichert Quality
The Reichert name ensures a high quality, reliable instrument that you can count on every time.

Specifications:

Method of Measurement: Cornea reflection light coincidence method

Measurement Range:
46 to 82 mm (Total PD)
23 to 41 mm (Each eye)

Fixation Target: Internal green dot on illuminated background

Weight: 1.5lbs., 0.7 Kg
Height: 2in., 5.08 cm
Width: 6in., 15.24 cm
Depth: 9in., 22.86 cm

Focus Range: 30 cm to Infinity

Illumination: LED

Power Supply: 6V DC (Four AA batteries)

Standard Accessories: Dust Cover

View the brochure
