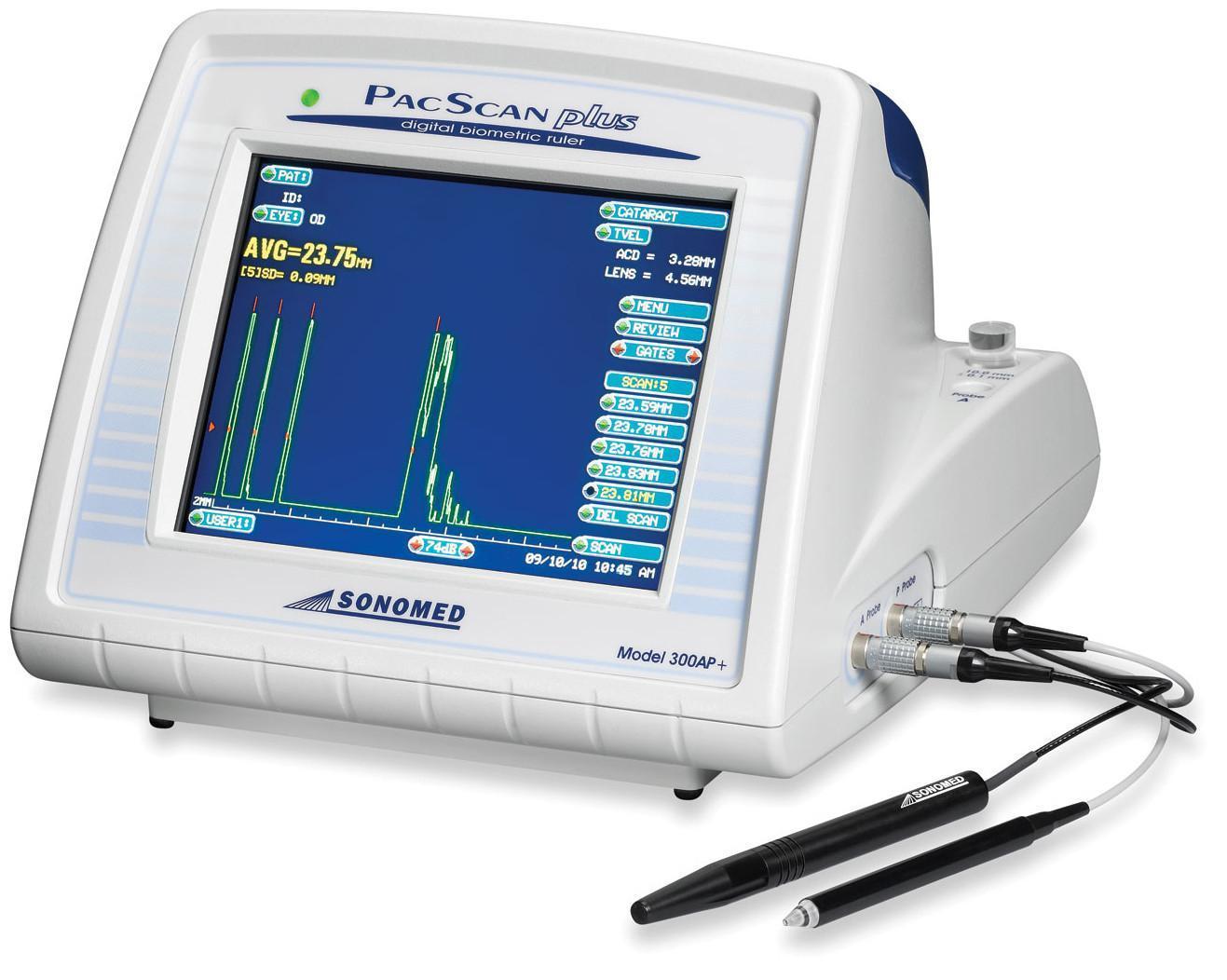

Sonomed Escalon PacScan Plus A-Scan/Pachymetry - Optics Incorporated
Sonomed Escalon

PacScan Plus A-Scan/Pachymetry
Free Gift


Call or Chat for price

    Manufacturer Part Number: 300AP+

    Portable, digital, combination A-Scan and Pachymeter, with a large color touch screen, on-board memory and USB interface for archiving, extreme accuracy, repeatable measurements and reliability.

    Immersion or direct contact A-scan

    Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)

    Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam

    Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis

    Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K

    Easily review each scan, delete outlying scans, and add new scans

    Customizable tissue velocities of each structure


    Automatic measurement algorithm senses when probe is properly aligned

    Average and standard deviation computed for each reading (each reading consists of 64 individual measurements)

    Can measure central and peripheral cornea thickness; multiple corneal maps with graphical display

    Measurement range from 125 to 1000 microns enabling measurement of cornel flap

    Built-in probe sensitivity test and calibration confirmation

    Straight or 45 degree probes available

    View the brochure
