Catalog Number: 15170

Refractive Measurement Range:
Sphere: -30D to +22D (in case VD=12) (Step: 0.12/0.25D)
Cylinder: 0 to ± 10D (Step: 0.12/.25D)
Axis angle: 1 to 180° (Step: 1°)

Keratometric Measurement Range:
Radius of curvature: 5.0 to 10.0 mm (Step: 0.01 mm)
Corneal Power: 33.75 to 67.5D (Corneal refractive n=1.3375) (Step: 0.12/0.25D)
Degree of corneal astigmatism: 0 to ±10D (Step: 0.12/0.25D)
Axis angle: 1 to 180° (Step: 1°)

Pupil Diameter Measurement:
Measurement Range: 2.0 to 8.5 mm (Step: 0.01 mm)

PD measurement:
Measurement Range: 39 to 85 mm (Step: 1 mm)

Vertex Distance: 0, 10, 12, 13.5, 15 mm

Minimum Pupil Diameter: 2.0 mm

Printer: Thermal line printer (Paper width: 58 mm)

Output Port: Serial RS-232C port for connecting to EMR/EHR and other devices

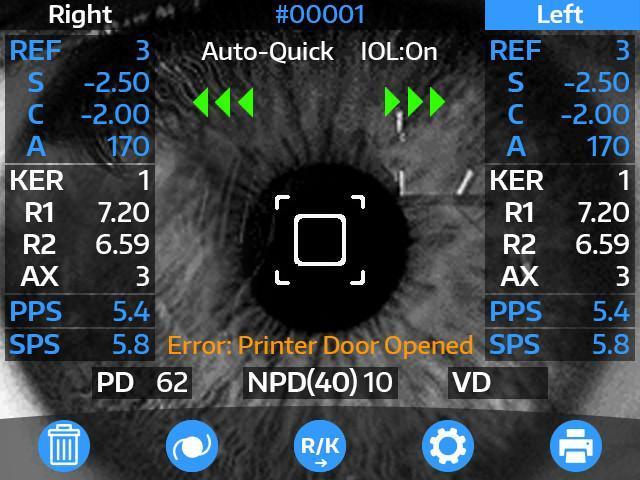

Internal Display: 145 mm (5.7 inches) color LCD monitor

Positioning Range of Measurement Unit:
Front/ Back: ±22 mm
Right/ Left: ±43 mm
Up/ Down: ±17 mm

Vertical Adjustment Range of Chinrest: ±30 mm

Size:
Weight, unpacked: 28.1 Kg (28.2 lbs)
Height: 46.4 cm (18.3 in.)
Width: 22.9 cm (9.0 in.)
Depth: 42.9 cm (16.9 in.)

Electrical:
Input Power: 100 to 240V @ 50/60Hz, 60 VA
Fuse: T2AL 250 VAC
Bluetooth Power Source: 5 VDC ± 5% @ 200 mA (typical)
Power Saving Function: OFF, 3, 5, 10 min. (switchable)
