HEINE

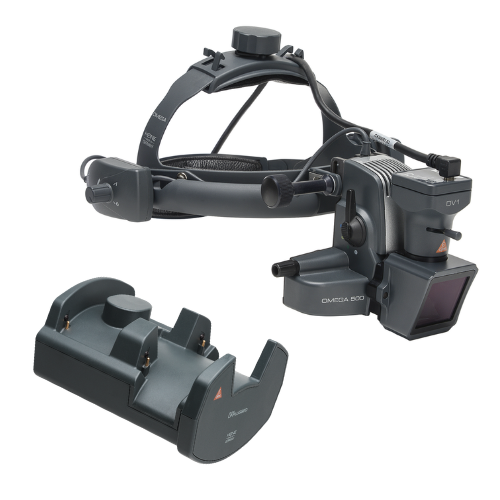

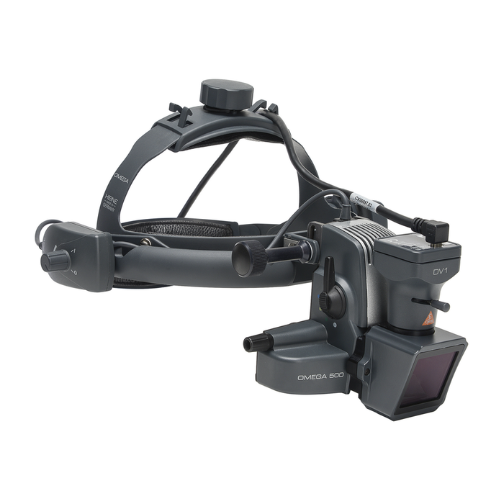

Omega 500 LED Binocular Indirect with DV1 Digital Video Camera

Omega 500 LED Binocular Indirect with DV1 Digital Video Camera

SKU: SKU:HEC-08.33.562

    Power Source
    Charging Method
    Accessories

    Technical Specifications

    Catalog Number: C-176.41.670

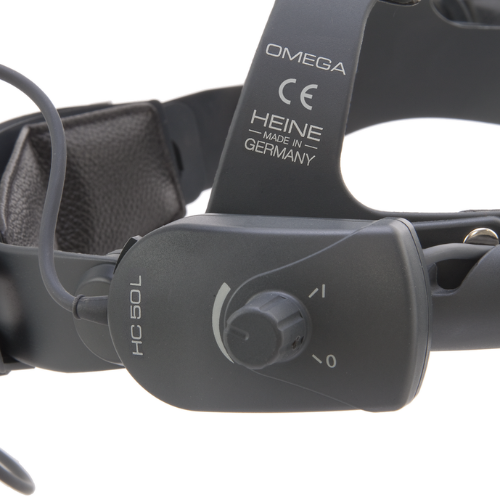

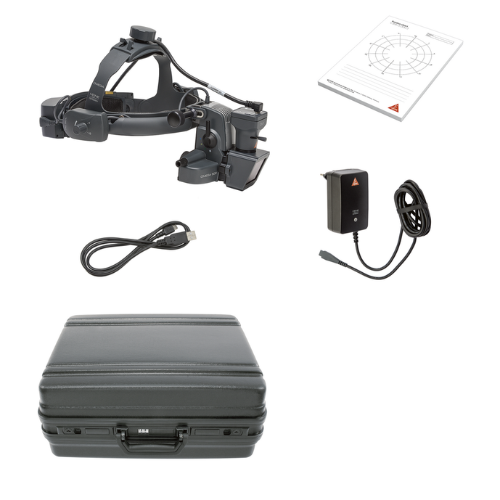

    Includes: plug-in transformer, HC 50 L Headband Rheostat, 1 scleral depressor large, 1 scleral depressor small, A.R. 20 D Ophthalmoscopy-lens, pad with 50 fundus charts, 1 spare bulb if with XHL illumination, in hard case

    Catalog Number: C-008.33.562
    Includes: 2 x mPack UNPLUGGED and Wall Transformer EN-50 UNPLUGGED

    Catalog Number: C-008.33.561

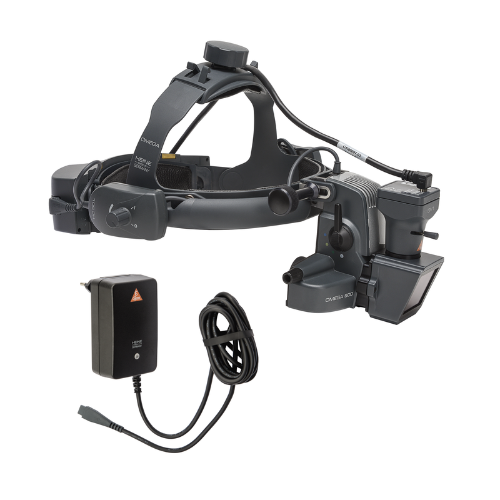

    Includes: plug-in transformer

    View full details

    Performance, Function, and Durability

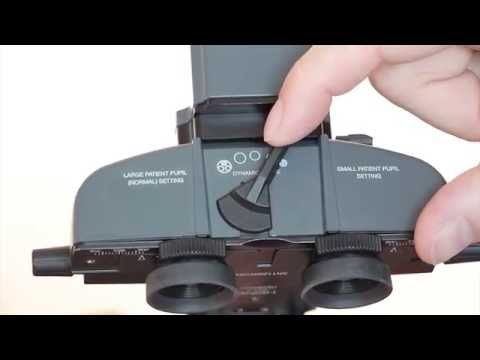

    Stereo Views Regardless of Pupil Size

    The OMEGA 500 gives you total freedom to adjust your optical alignment to maximise your view in all pupils. The exclusive synchronised convergence and parallax adjustment system is free of presets, allowing stereo views in pupils ranging from 1 mm through 10 mm.

    Performance and Flexibility

    With the OMEGA 500, all you need is right at your fingertips. Three spot sizes and a diffuser are integrated, along with three filters: yellow filter for patients who are sensitive to light, red-free filter, and a cobalt blue filter. The tiltable mirror allows you to adjust the light beam + or -4 degrees.

    Maintenance Free

    The 100 % guaranteed dustproof construction and mounting of the optics on an aluminum frame make the OMEGA 500 maintenance free and durable. It is so reliable that we have extended its guarantee to 5 years.

    Designed for Comfort and Ergonomics

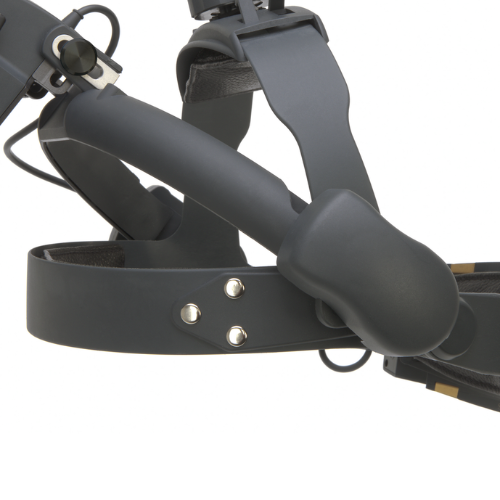

    The unique headband of the OMEGA 500 is perfectly balanced and comfortable due to its strong and malleable materials and exclusive adjustment possibilities. Height, distance, and angle positioning for your optics, combined with independent interpupillary adjustment and ergonomic control placement allow for a customized fit and intuitive operation.

    High-resolution digital imaging of the fundus with LED HQ illumination

    Features:

    5 MP resolution
    Integrated Focus Adjustment
    Simple Operation

    5 MP resolution - Capable of capturing high-resolution videos or still shots of examinations. No disturbing picture noise due to increased light sensitivity of the camera – also suitable for the examination of premature babies. Perfect for sharing the examiner’s view with a wider audience, educating patients on the diagnosis, recording techniques for presentations, and patient records.

    Simple operation - Digital imaging without any additional adjustments. Simply start recording and the image as seen through the OMEGA 500 will be displayed on the screen.

    Comfortable and balanced fit - The OMEGA 500 headband distributes the low weight of the compact camera and optics perfectly and ensures a comfortable fit.

    Integrated focus adjustment - The high depth of focus combined with an easily accessible focus adjustment, even for the assistant, ensures crisp, in- focus imaging. Interface and software. Will plug into any laptop or computer via USB 2.0 interface. Supplied with software program for video recording and image capture.

    Cable-free power source system with mPack UNPLUGGED rechargeable battery.

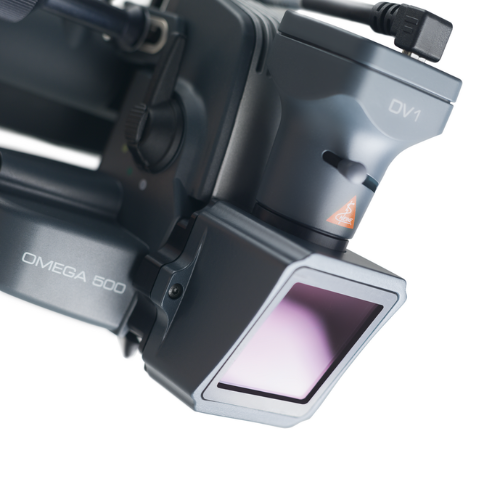

    Integrated camera design - The integrated camera system ensures precise alignment with the optical system of the Indirect Ophthalmoscope. Robust, dustproof design. No further adjustment of mirrors necessary for digital imaging.

    3 different filters, 4 different apertures


    Documents:

    Brochure   Instructions for Use
