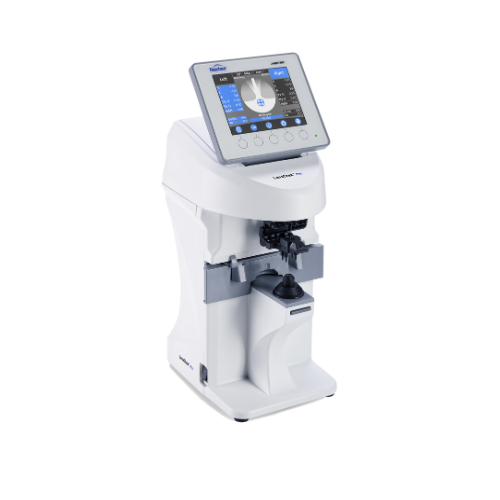

LensChek Pro with PD + UV

LensChek Pro with PD + UV

Reichert

SKU:RI15185

In stock

Regular price $4,680.00
Regular price Sale price $4,680.00
Sale Sold out

Modern Design

The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.

Modern Design

The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.

Modern Design

The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.


Quick & Accurate Measurements

When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.

Quick & Accurate Measurements

When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.

Quick & Accurate Measurements

When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.


Measurement Modes

With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.

Measurement Modes

With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.

Measurement Modes

With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.


UV Transmittance & PD Measurement

UV Transmittance provides the percentage of ultraviolet light transmitted through a lens. The PD dual nose pads allow for left and right lens detection. Using this feature, both monocular and binocular Pupillary Distances are provided upon measurement of glasses.

UV Transmittance & PD Measurement

UV Transmittance provides the percentage of ultraviolet light transmitted through a lens. The PD dual nose pads allow for left and right lens detection. Using this feature, both monocular and binocular Pupillary Distances are provided upon measurement of glasses.

UV Transmittance & PD Measurement

UV Transmittance provides the percentage of ultraviolet light transmitted through a lens. The PD dual nose pads allow for left and right lens detection. Using this feature, both monocular and binocular Pupillary Distances are provided upon measurement of glasses.

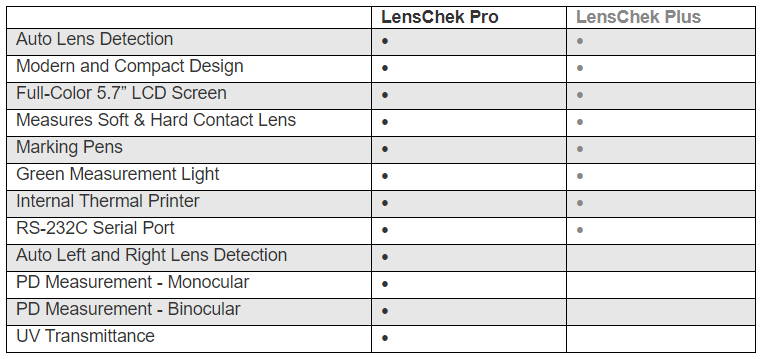

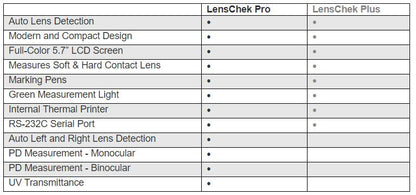

Compare Models:

Compare Models:

Compare Models:

1 Year Warranty

Free Shipping!*

1 Year Warranty

Free Shipping!*

1 Year Warranty

Free Shipping!*

Specifications

Manufacturer Part Number: 15185

Refractive Measurement Range:
Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)
Axis angle: 1 to 180° (Step: 1°)
Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D)
Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D)
UV Transmittance Measurement: 0 to 100% (Step: 5%)
Pupilary Distance Measurement: 45mm to 85mm (Step: 0.5 mm)
UV Transmittance Measuring Wavelength: 375 nm
Lens Power Measuring Wavelength: 630 nm

Measureable Lens:
Unprocessed (Diameter: 100mm) and Framed Lens
Single, Multifocal, Progressive lens
Single Focus Hard and Soft Contact Lens (use Contact Lens Stand)

Measurement Accuracy:
Sphere: 0D to ± 10D = ±0.25D, else 0.50D
Cylinder: ±0.25D

Printer: Thermal line printer (Paper width: 58 mm)

Port: Serial RS-232C port for connecting to EMR/EHR and other devices

Internal Display: 145 mm (5.7 inches) color LCD monitor

Size:
Weight Unpacked: 4.7 Kg (10.35 lbs)
Display Up: 46.7 cm (18.4 in)
Display Down: 41.9 cm (16.5 in)
Width: 18.4 cm (7.3 in)
Depth: 22.9 cm (9.0 in)
Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.)

Electrical:
Input Power: 100 to 240V @ 50/60Hz, 60 VA
Fuse: T2AL 250V, 5x20mm, RoHS
Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)

Documents

Brochure

User's Guide

Brochure

User's Guide
