The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.

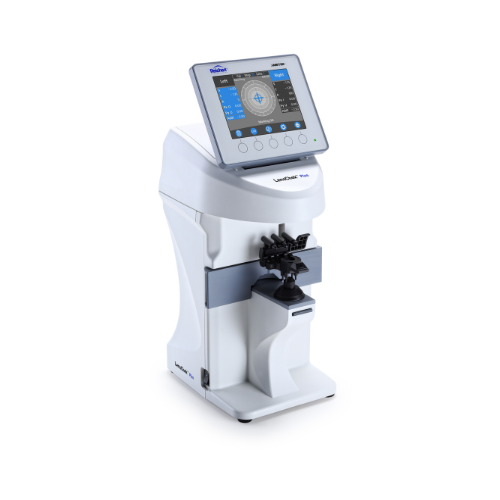

LensChek Plus
-
SKU:
-
Regular price
-
$3,880.00
-
Shipping: Free
Estimated Delivery: Feb 24 - Mar 06
-
SKU:
- $3,880.00
- Shipping: Free
Modern Design
Modern Design
The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.
Modern Design
The wide-angle, tilt LCD screen and compact build provide a small footprint that’s able to fit in all offices and labs, while ensuring comfortable, glare-free viewing from virtually any position.

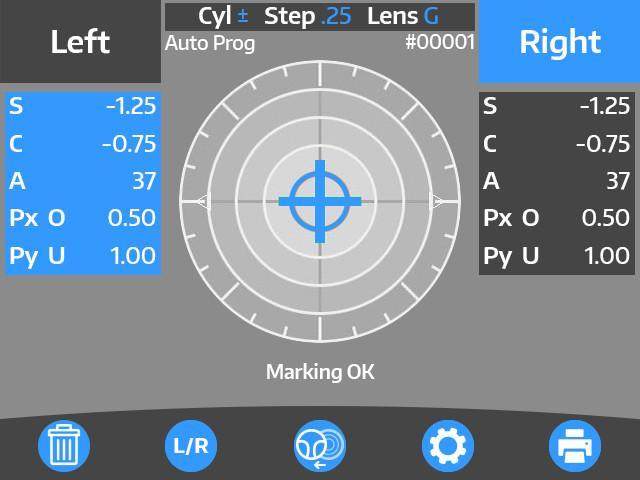

Quick & Accurate Measurements
When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.
Quick & Accurate Measurements
When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.
Quick & Accurate Measurements
When the target is aligned with the correct optical center, the measurement can be automatically obtained to provide consistent and reliable readings. The LensChek Digital Lensometers utilize a Green Measurement Light which gives a more accurate measurement without the need for Abbe value compensation.

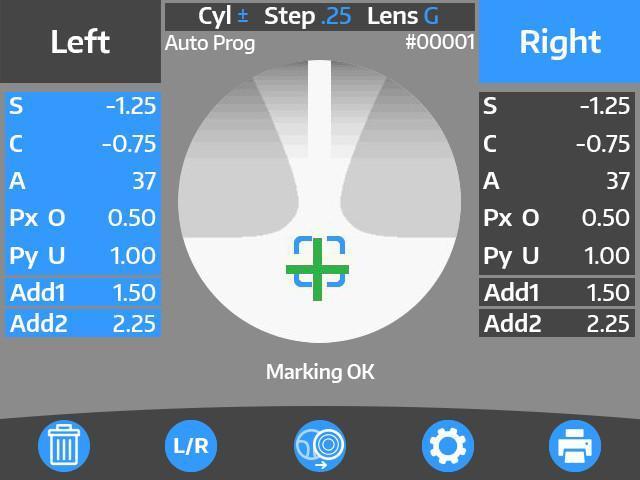

Measurement Modes
With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.
Measurement Modes
With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.
Measurement Modes
With its lens detection feature, the LensChek automatically switches from single vision to progressive measurement mode based on the lens being measured. It even measures hard or soft contact lenses with the attachment accessory that comes standard.

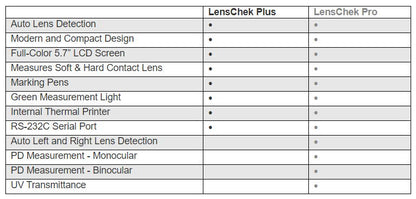

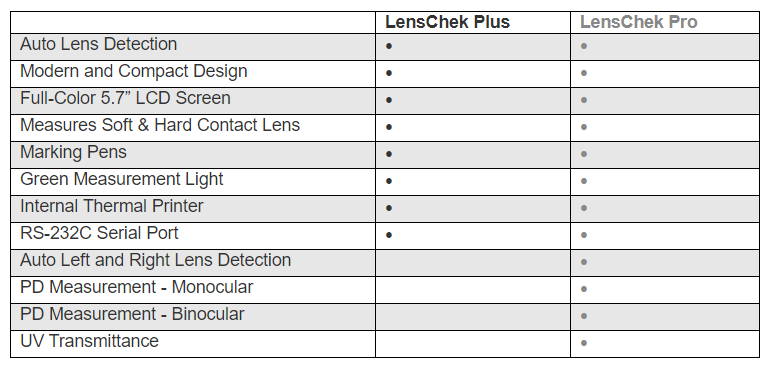

Compare Models:
Compare Models:
Compare Models:
1 Year Warranty
Free Shipping!*
1 Year Warranty
Free Shipping!*
1 Year Warranty
Free Shipping!*
Specifications
Manufacturer Part Number: 15180
Refractive Measurement Range:
Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D)
Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D)
Axis angle: 1 to 180° (Step: 1°)
Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D)
Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D)
Lens Power Measuring Wavelength: 630 nm
Measureable Lens:
Unprocessed (Diameter: 100mm) and Framed Lens
Single, Multifocal, Progressive lens
Single Focus Hard and Soft Contact Lens (use Contact Lens Stand)
Measurement Accuracy:
Sphere: 0D to ± 10D = ±0.25D, else 0.50D
Cylinder: ±0.25D
Printer: Thermal line printer (Paper width: 58 mm)
Port: Serial RS-232C port for connecting to EMR/EHR and other devices
Internal Display: 145 mm (5.7 inches) color LCD monitor
Size:
Weight Unpacked: 4.7 Kg (10.35 lbs)
Display Up: 46.7 cm (18.4 in)
Display Down: 41.9 cm (16.5 in)
Width: 18.4 cm (7.3 in)
Depth: 22.9 cm (9.0 in)
Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.)
Electrical:
Input Power: 100 to 240V @ 50/60Hz, 60 VA
Fuse: T2AL 250V, 5x20mm, RoHS
Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)
