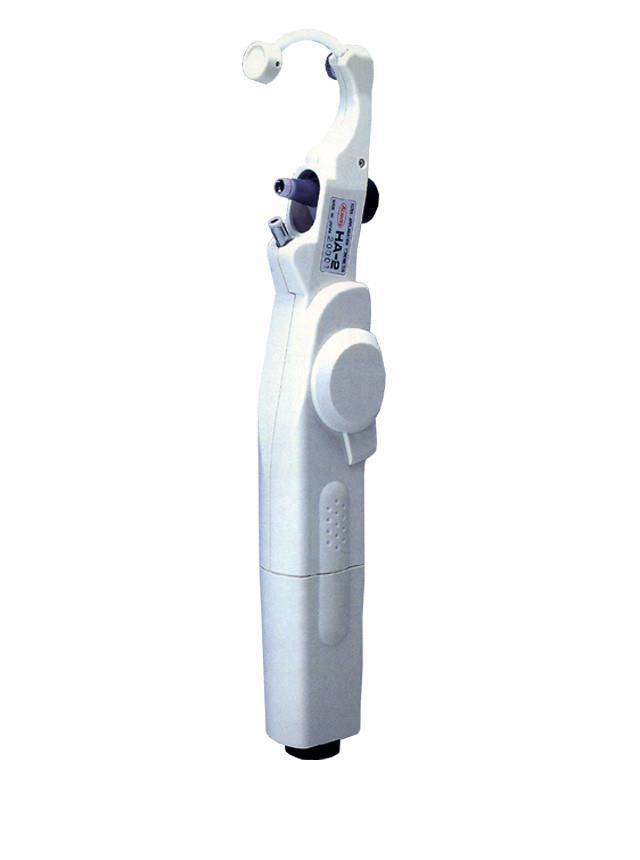

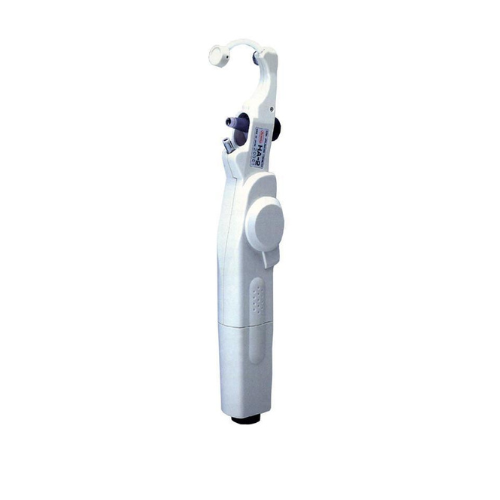

HA-2 Handheld Applanation Tonometer
Using industry standard tonometer probes, this instrument is ideal for domiciliary situations or as a back-up tonometer and provides pressure readings using the gold standard applanation principle. The internal spring mechanism allows accurate readings of intra-ocular pressure in any orientation, regardless of patient position or posture.
No conversion tables necessary with direct reading type precision dial built into the device.
Built-in illumination enables instrument use regardless of lighting conditions.
Accessories such as an adjustable headrest and an interchangeable 3x long eyepiece provide the most optimal conditions for measurement.
Utilizes standard prism heads with a standard battery power source
Catalog Number: ATO-6K
Type: Handheld Applanation Tonometer
Applanation Prism: Interchangable Doubling Prism (Optional)
Scale Range: 0 to 60mm Hg (1mm Hg Division)
Illumination ON/OFF: Interlocked with Thumb Wheel
Illumination Bulb: Interchangable Lens Bulb 2.5 V, 0.24 A
Head Rest: Movable
Setting block for calibration
Weights for calibration (2g)
