Haag-Streit

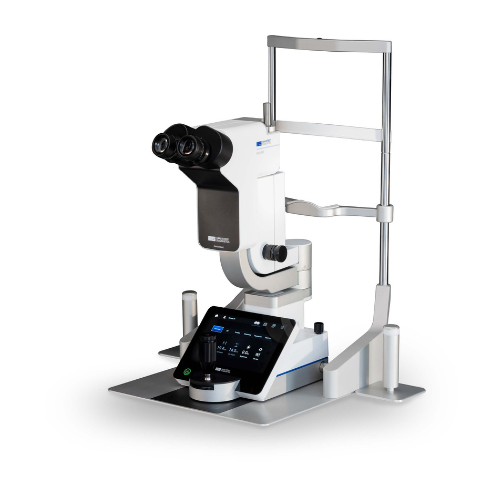

Elara 900 Slit Lamp

Elara 900 Slit Lamp

SKU: HS7221084

    Technical Specifications

    Illumination
    Spectral range slit illumination
    Visible spectrum: 420 – 660 nm
    Infrared spectrum: 780 – 900 nm (Elara 900 only)
    Slit image width 0 – 24 mm continuous
    Slit image height 0 – 15 mm continuous
    Slit image rotatability ± 90°
    Filters/colors RGB
    Maximum irradiance 174 mW/cm2

    Stereo Microscope
    Stereo angle 13°
    Magnification changer 6.3 × / 10 × / 16 × / 25 × / 40 ×
    Eyepiece magnification 12.5 ×
    Adjustment range of eyepieces +8 to −8 dioptres
    Pupil distance 52 – 80 mm
    Total magnification 6.3 × / 10 × / 16 × / 25 × / 40 ×
    Object field ø in mm 32.0 / 20.0 / 12.7 / 8.0 / 5.1
    Eyepiece inclination angle 20°

    Camera
    Camera resolution 2 × 5 megapixel for stereoscopic view with up to 4K video and image output in stereo mode
    Camera beam Can be defined in the software: Stereo, left or right.
    Frame rate 30 fps (frames per second)
    Automatic flip mirror 0% / 70% (transmission to camera)
    Image file format jpg / bmp
    Video file format mp4

    Instrument Base
    Operation Single-handed operation of control lever in three dimensions
    Adjustment of instrument base 100 mm (length), 100 mm (side), 30 mm (height)

    Wireless Communication
    Module Intel Wireless-AC 9260
    Frequency 2.4 GHz (2.400 GHz to 2.483 GHz) The range may vary depending on the country
    Power 20 dBm (100 mW)

    Power Supply
    Type CINCON Electronics Co. Ltd
    Model TR160MA240-01-12E746 V
    Mains voltage 100 – 240 VAC
    Current consumption 159 VA
    Operating frequency 47 – 63 Hz

    Dimensions (L × W × H) 560 mm × 401 mm × 330 mm
    Weight 15.2 kg

    EMR Compatibility

    Elara 900 can be integrated into many different environments: whether that’s EyeSuite, or your EMR system which supports DICOM worklist modality*
    *“Connectivity" license required

    View full details

    See more, diagnose with confidence

    A Superior Clinical View

    Powerful "Presets"

    Up to six individual exam scenarios – “presets” – enable you to summarize multiple manual steps into one single operation. Whether changing the illumination color, activating the yellow filter, adjusting the slit width, modifying slit width, or adjusting magnification: apply optimized settings with a single scroll of the “preset” wheel.

    Motorized height & magnification

    Elara 900’s motorized height adjustment allows for quick and precise repositioning with minimal manual effort. The motorized magnification changer enables seamless magnification adjustments directly from the joystick, delivering an uninterrupted diagnostic experience.

    Efficient documentation

    Elara 900 supports optimum patient flow in busy practices. Instantly record high-resolution images and videos with one click – then optionally assign captured content to the correct patient file, all while working within the device.

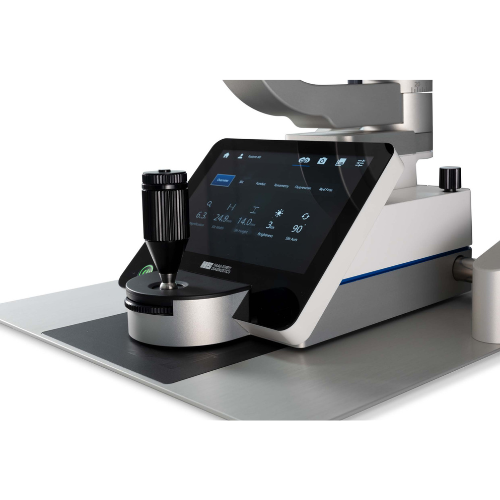

    Optimized control layout

    To improve comfort and ease of use, control elements are intuitively repositioned around the joystick with a smart layout that ensures all essential adjustments can be made without shifting hand position. The distance from the ocular to the focus lens is reduced by 23% compared to slit lamps with a similar feature set.

    Revolutionary projector illumination

    Elara 900’s revolutionary projector light source (“P-Type”) can emit colors across the entire visible spectrum, allowing different color temperatures to be selected for individual pathologies. Infrared* illumination enables seamless Meibomian gland assessment, further boosting your workflow.

    Legendary optics, optimized design

    A clinical view you can trust

    Whether assessing the anterior or posterior segment or working under unfavorable light conditions – benefit from a view that is both natural and high in contrast. Elara 900’s Galilean microscope – with its five-step magnification range from 6.3x up to 40x – unveils more detail with every turn. Simply switch on the integrated, motorized yellow filter to increase contrast in specific areas – or select different lighting colors to optimize specific examination scenarios ("presets.")

    High-resolution 3D image & video capture

    See, save, share

    Whether for follow-ups, referrals, or teaching, Elara 900’s high-resolution imaging functionality preserves every ocular detail for review and comparison. The combination of the dual camera setup allows for optional 3D* video and image capture in 4K for a truly immersive examination experience. Stereoscopic visualization enhances ophthalmic education, allowing colleagues and students to experience examinations with exceptional depth and clarity.

    *3D license required

    Enhanced efficiency

    More precision, less effort

    Enhance efficiency without compromising precision. Elara 900’s digital “presets” reduce the time spent on adjusting filters, modifying slit width or illumination intensity. These automated examination scenarios reduce manual steps and transitions, allowing you to fully focus on your examination at the touch of a button. Working in harmony with automation settings – Elara 900 features motorized height and magnification that allow routine adjustments to take place smoothly without disrupting your examination. Additionally, high-resolution images and videos can be captured directly from the device, supporting efficient documentation and record-keeping.

    Optimized ergonomics

    Comfort for the examiner & the patient

    Long hours at the slit lamp shouldn’t come at the expense of your well-being. Elara 900 redefines slit lamp ergonomics to potentially minimize physical stress, promote natural posture, and enhance ease of use. Benefit from intuitive controls that put all your settings and adjustments within easy reach, with a purpose-built joystick, intuitive touchscreen layout, and motorized height adjustment that ensures optimal system navigation and smooth operation. Designed with the comfort of the patient, as well as the examiner in mind, Elara 900 prioritizes proper positioning, with a height-adjustable chinrest and spacious headrest to create room and reduce body pressure. The result is a comfortable yet robust examination environment for patients of all body frames.



    Documents:

    Brochure   Instruction Manual

    Includes:

    Elara 900
    Ergonomic Tabletop
    Patient Handles
    Google TV Streamer (for Haag-Streit's VisionCast)
