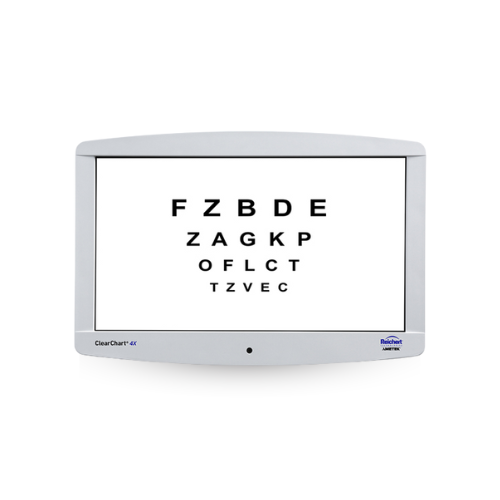

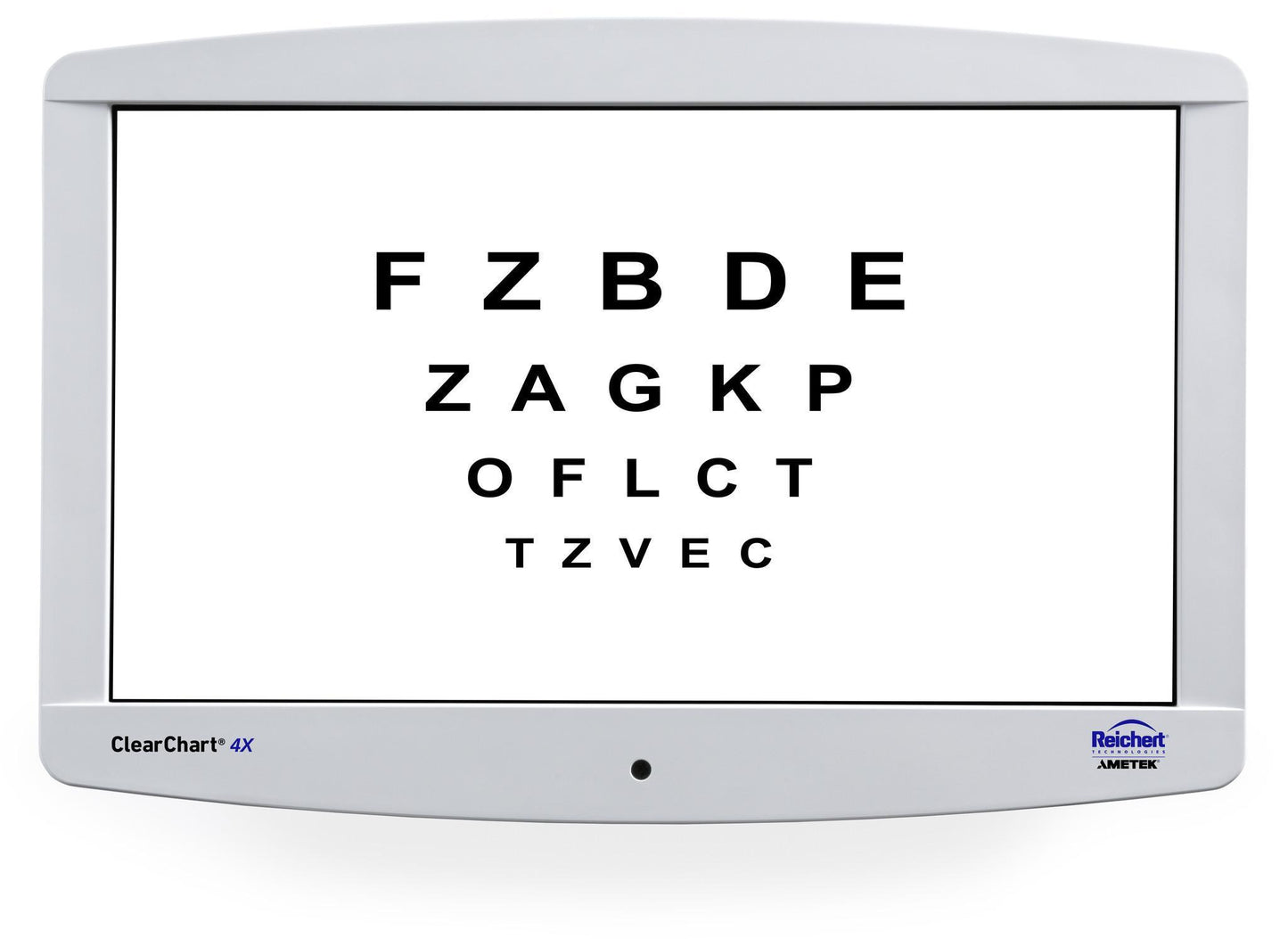

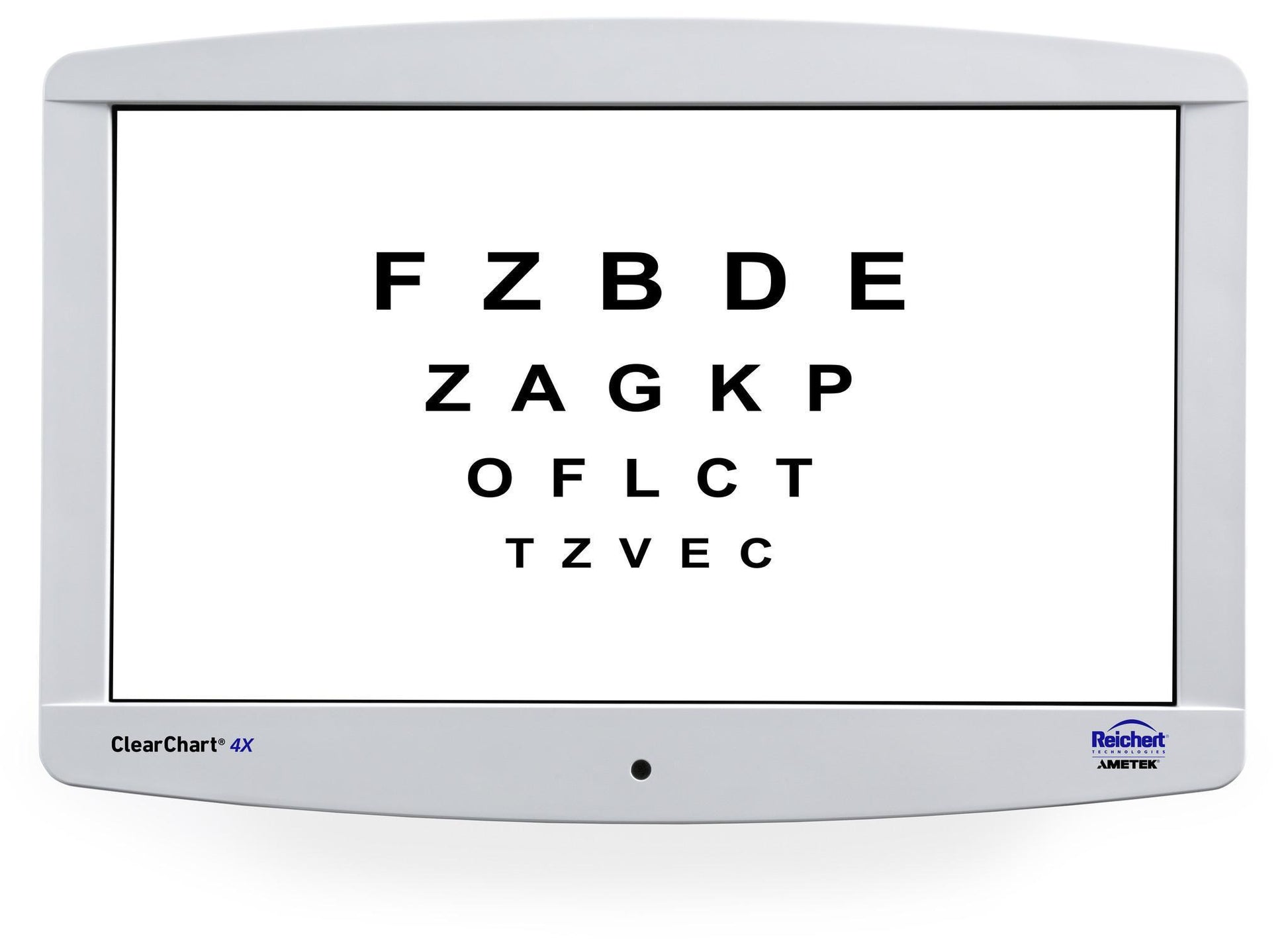

Reichert Exam Room Clearchart 4X Digital Acuity System
Reichert

Clearchart 4X Digital Acuity System

  • SKU:
Regular price
  • $3,360.00
  • Shipping: Free
Estimated Delivery: Oct 16 - Oct 21
Have Net Terms with us? Let us know
Earn 5% back in rewards. Details ⇢


Accurate & Easy to Use

Designed to help eliminate operator error and functions in any position.

First Generation Measurement Mode

6-10 applanations (3-5 taps) are needed to display an IOP value with the number of applanations collected.

LCD will display the IOP along with a statistical confidence indicator.

Quick Tap Measurement Mode

New! Quick Tap Measurement Mode

Displays the IOP value for each measurement taken, and the number of applanations collected.

As few as 2 taps can produce a high confidence result to complete the measurement.

The LCD will display the IOP along with a statistical confidence indicator

One Button Operation

Activated by the push of a button, the IOP measurement is displayed on two large, easy-to-read, LCD screens.

Long Lasting Battery

Powered by a long-life POWERCEL battery pack, good for over 2,500 measurements

No Calibration Required

Routine calibration of Tono-Pen AVIA is not required.

ADA Eligibility

The purchase of Tono-Pen may qualify for ADA tax benefits. Refer to Americans with Disabilities Act, Title 26, Internal Revenue Code, Section 44.

Included in the Starter Kit:

With the purchase of the starter kit, you will receive:

Tono-Pen AVIA

Carrying Case

1 Box of 150 individually wrapped Ocu-Film + tip covers

Tono-Pen AVIA Powercel Battery

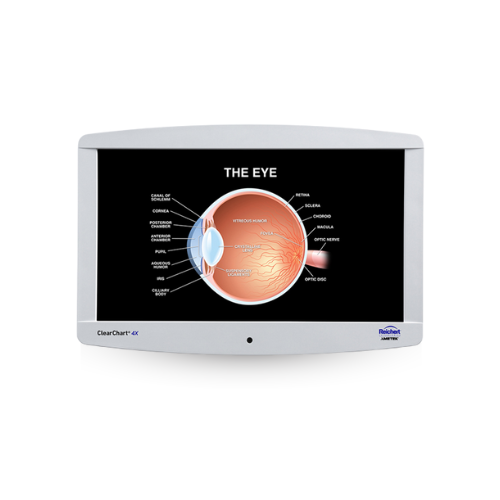

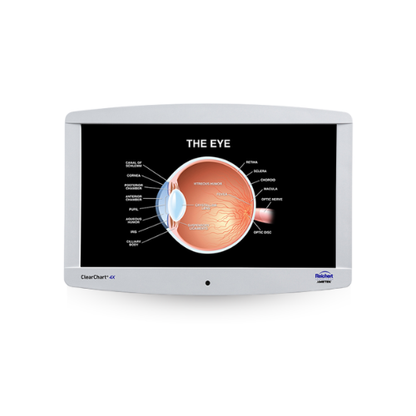

Patient Education

Displays seventeen different educational slides with the ability to upload up to thirteen additional image files.

Patient Education

Displays seventeen different educational slides with the ability to upload up to thirteen additional image files.

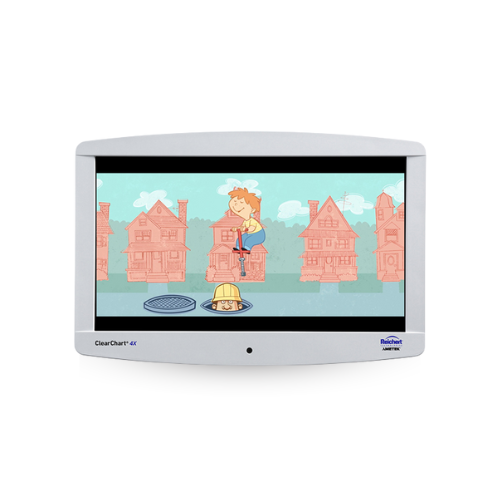

Pediatric

Includes one children’s video with audio for fixation with the ability to upload four additional video files

Pediatric

Includes one children’s video with audio for fixation with the ability to upload four additional video files

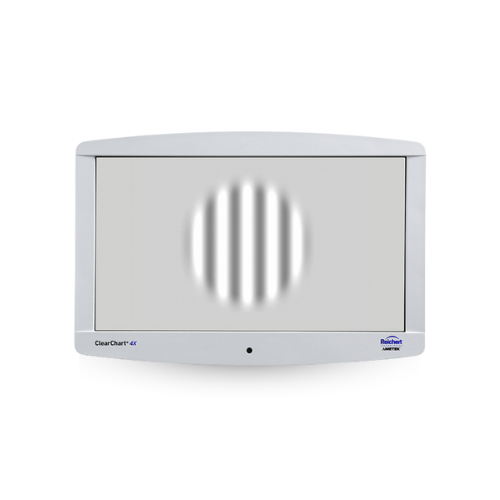

Contrast Sensitivity

Three light levels available for contrast testing along with the ability to adjust frequency and rotate image angle.

Contrast Sensitivity

Three light levels available for contrast testing along with the ability to adjust frequency and rotate image angle.


Optoptypes

Uniquely designed to meet all of your acuity testing needs with a wide selection of optotypes and other special test charts including ETDRS.

Standard:

17 Letter Set

8 Letter Set

Sloan

Tumbling E

Landolt C

O Landolt C

HOTV

LEA Numbers

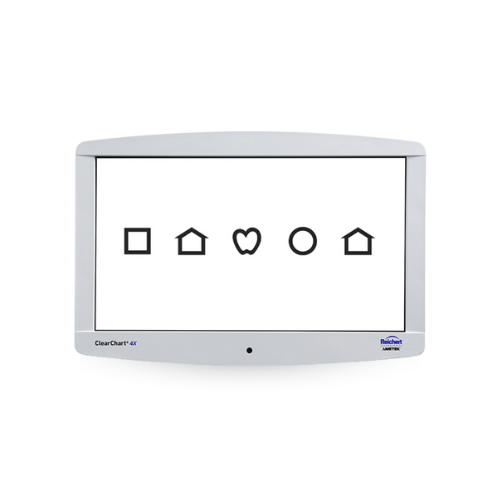

Children's:

Allen

LEA Symbols

Presentation:

Single Line

Double/ Same

Double/ Decreasing

Triple Same

Triple Decreasing

Quadruple Same

Quadruple Decreasing

Single Letter

Column

Column Uneven

Other:

Xcyl Crowding Dots

Astigmatic "Wheel"

T

Fixation Dot

Horizontal Disperity

Vertical Disperity

Worth 4 Dot

Crowding Bar

Suppression

Red Green Filter

EDTRS

Contrast Sensitivity

Patient Education Slides

Optoptypes

Uniquely designed to meet all of your acuity testing needs with a wide selection of optotypes and other special test charts including ETDRS.

Standard:

17 Letter Set

8 Letter Set

Sloan

Tumbling E

Landolt C

O Landolt C

HOTV

LEA Numbers

Children's:

Allen

LEA Symbols

Presentation:

Single Line

Double/ Same

Double/ Decreasing

Triple Same

Triple Decreasing

Quadruple Same

Quadruple Decreasing

Single Letter

Column

Column Uneven

Other:

Xcyl Crowding Dots

Astigmatic "Wheel"

T

Fixation Dot

Horizontal Disperity

Vertical Disperity

Worth 4 Dot

Crowding Bar

Suppression

Red Green Filter

EDTRS

Contrast Sensitivity

Patient Education Slides


Bluetooth Connectivity

The ClearChart 4X can directly connect to a Reichert digital refraction system wirelessly using a Bluetooth serial adapter.*

Bluetooth Connectivity

The ClearChart 4X can directly connect to a Reichert digital refraction system wirelessly using a Bluetooth serial adapter.*

*Bluetooth adapter sold separately

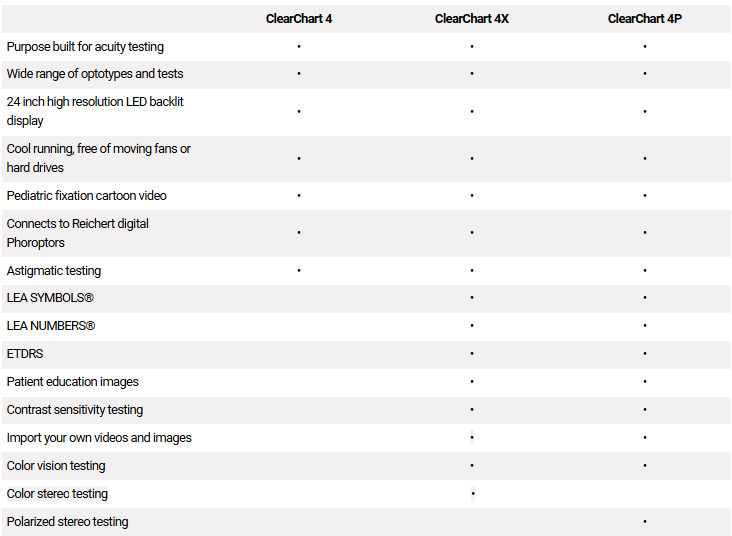

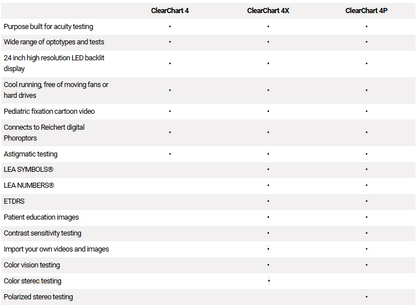

Other Models Available:

LEA SYMBOLS and LEA NUMBERS are registered trademarks of LEA Test, Intl, LLC.

Catalog Number: 13775

Display: 24 in. (60 cm) LED backlit LCD (1920x1080 Pixels)

Max Illumination: 220 cd/m2

Photopic Illumination: 85 cd/m2

Mesopic Illumination: 3 cd/m2

Refraction Range: 1.83 m (6 ft) - 7.5 m (24.6 ft)

Dimensions:
Height:
.39.62 cm (15.60 in)
Width: 58.92 cm (23.20 in.)
Depth: 7.62 cm (3.00 in.)

Weight: (unpacked) 5.9 kg (13.1 lbs.)

Communication:
- RS232 Serial Port
- 2 USB Ports
- Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®

Remote Control: Infrared

Electrical:
Voltage: 100 - 240 volts AC 50/60 Hz
Input Power: 50-75 VA
Fuses: Time-Lag (2.5A, 250V), 5 x 20mm
Remote Control: 2 AAA (LR03) batteries

Operational Environment:
Temperature: 10° C (50° F) to 35° C (95° F)
Relative Humidity: 30% to 75%
Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)

Warranty: 3 years


ClearChart 4X (13775) comes with:

(1) Remote control
(2) AAA (LR03) batteries
(2) Power cords - 0.6 m (3 ft.) length and 3 m (10 ft. length
(1) Wall mount bracket with screws
(1) Wall mount adaptor
(1) User’s Guide

Optional accessories:
(1) Wall mount bracket adaptor
(1) USB Bluetooth adapter
(1) Wireless dongle kit
(1) Pair red/green glasses

Brochure

User's Guide

Accurate & Easy to Use

Designed to help eliminate operator error and functions in any position.

First Generation Measurement Mode

6-10 applanations (3-5 taps) are needed to display an IOP value with the number of applanations collected.

LCD will display the IOP along with a statistical confidence indicator.

New! Quick Tap Measurement Mode

Quick Tap Measurement Mode

Displays the IOP value for each measurement taken, and the number of applanations collected.

As few as 2 taps can produce a high confidence result to complete the measurement.

The LCD will display the IOP along with a statistical confidence indicator

One Button Operation

Activated by the push of a button, the IOP measurement is displayed on two large, easy-to-read, LCD screens.

Long Lasting Battery

Powered by a long-life POWERCEL battery pack, good for over 2,500 measurements

No Calibration Required

Routine calibration of Tono-Pen AVIA is not required.

Included in the Starter Kit:

With the purchase of the starter kit, you will receive:

Tono-Pen AVIA

Carrying Case

1 Box of 150 individually wrapped Ocu-Film + tip covers

Tono-Pen AVIA Powercel Battery

Patient Education

Displays seventeen different educational slides with the ability to upload up to thirteen additional image files.

Pediatric

Includes one children’s video with audio for fixation with the ability to upload four additional video files

Contrast Sensitivity

Three light levels available for contrast testing along with the ability to adjust frequency and rotate image angle.

Optoptypes

Uniquely designed to meet all of your acuity testing needs with a wide selection of optotypes and other special test charts including ETDRS.

Standard:

17 Letter Set

8 Letter Set

Sloan

Tumbling E

Landolt C

O Landolt C

HOTV

LEA Numbers

Children's:

Allen

LEA Symbols

Presentation:

Single Line

Double/ Same

Double/ Decreasing

Triple Same

Triple Decreasing

Quadruple Same

Quadruple Decreasing

Single Letter

Column

Column Uneven

Other:

Xcyl Crowding Dots

Astigmatic "Wheel"

T

Fixation Dot

Horizontal Disperity

Vertical Disperity

Worth 4 Dot

Crowding Bar

Suppression

Red Green Filter

EDTRS

Contrast Sensitivity

Patient Education Slides

Bluetooth Connectivity

The ClearChart 4X can directly connect to a Reichert digital refraction system wirelessly using a Bluetooth serial adapter.*

Catalog Number: 13775

Display: 24 in. (60 cm) LED backlit LCD (1920x1080 Pixels)

Max Illumination: 220 cd/m2

Photopic Illumination: 85 cd/m2

Mesopic Illumination: 3 cd/m2

Refraction Range: 1.83 m (6 ft) - 7.5 m (24.6 ft)

Dimensions:
Height:
.39.62 cm (15.60 in)
Width: 58.92 cm (23.20 in.)
Depth: 7.62 cm (3.00 in.)

Weight: (unpacked) 5.9 kg (13.1 lbs.)

Communication:
- RS232 Serial Port
- 2 USB Ports
- Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®

Remote Control: Infrared

Electrical:
Voltage: 100 - 240 volts AC 50/60 Hz
Input Power: 50-75 VA
Fuses: Time-Lag (2.5A, 250V), 5 x 20mm
Remote Control: 2 AAA (LR03) batteries

Operational Environment:
Temperature: 10° C (50° F) to 35° C (95° F)
Relative Humidity: 30% to 75%
Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)

Warranty: 3 years


ClearChart 4X (13775) comes with:

(1) Remote control
(2) AAA (LR03) batteries
(2) Power cords - 0.6 m (3 ft.) length and 3 m (10 ft. length
(1) Wall mount bracket with screws
(1) Wall mount adaptor
(1) User’s Guide

Optional accessories:
(1) Wall mount bracket adaptor
(1) USB Bluetooth adapter
(1) Wireless dongle kit
(1) Pair red/green glasses

Brochure

User's Guide
