Reichert

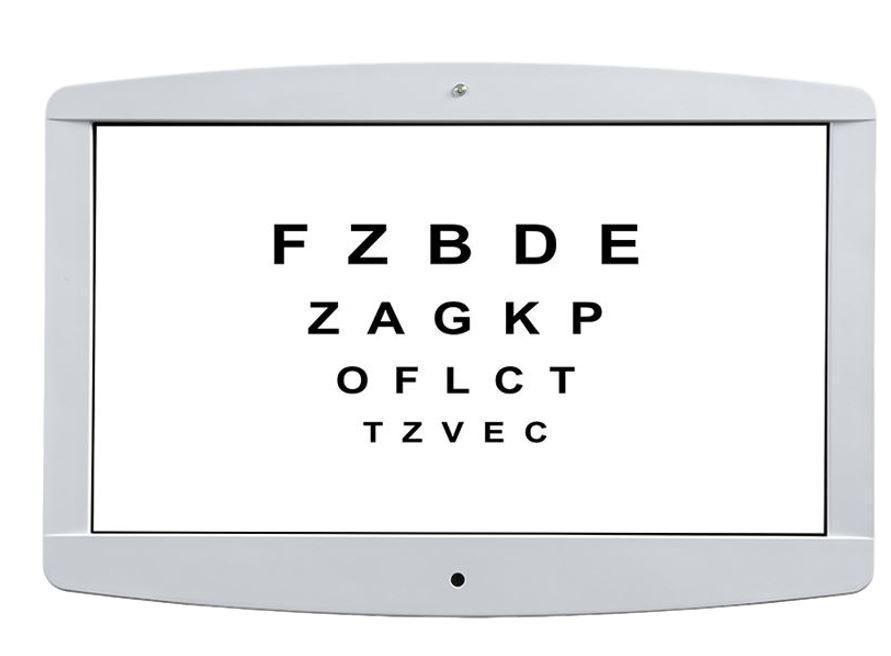

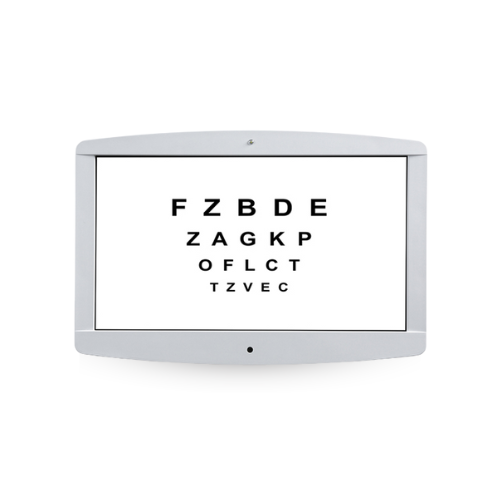

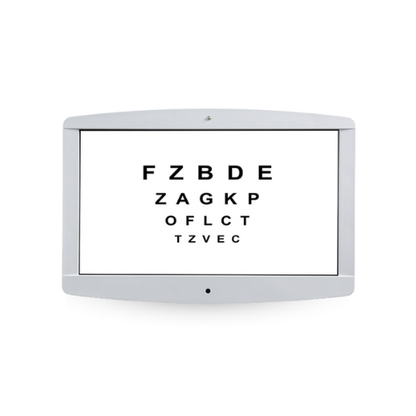

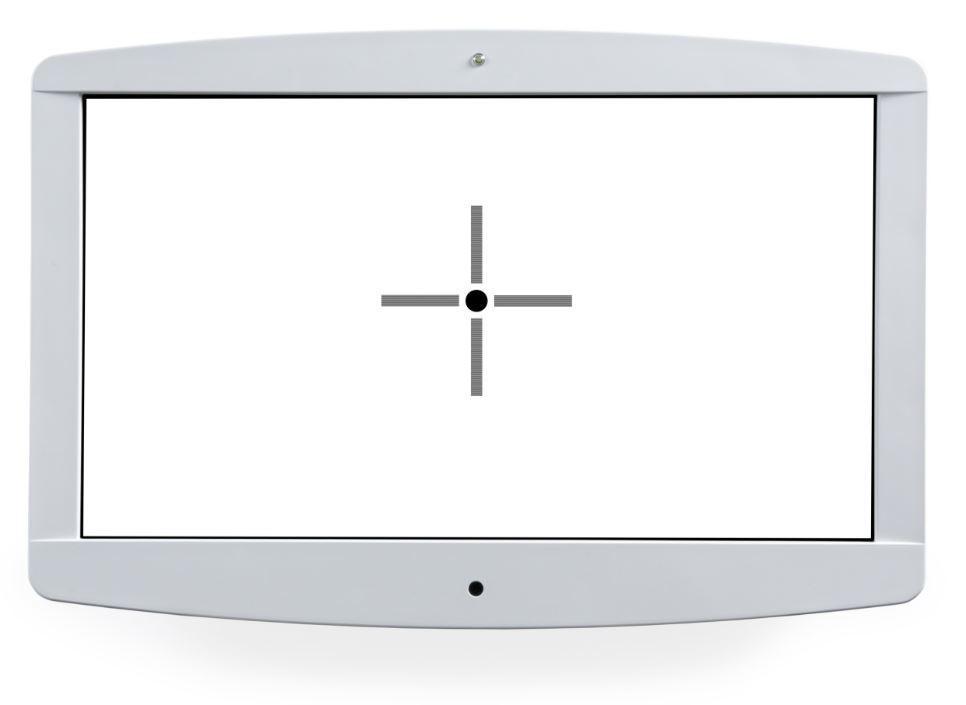

Clearchart 4P Polarized Digital Acuity System

Clearchart 4P Polarized Digital Acuity System

SKU: RI13785

$5,418.00
$5,418.00
Sale Sold out

on backorder - ships when back in stock

Technical Specifications

Catalog Number: 13785AG, 13785SE, 13785DL

Display: 24 in. (60 cm) LED backlit LCD (1920x1080 Pixels), with passive 3D capability

Max Illumination: 220 cd/m2

Photopic Illumination: 85 cd/m2

Mesopic Illumination: 3 cd/m2

Refraction Range: 1.83 m (6 ft) - 7.5 m (24.6 ft)

Dimensions:
Height:.39.62 cm (15.60 in)
Width: 58.92 cm (23.20 in.)
Depth: 7.62 cm (3.00 in.)

Weight: (unpacked) 5.9 kg (13.1 lbs.)

Communication:
- RS232 Serial Port
- 2 USB Ports
- Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®

Remote Control: Infrared, programmed for LogMAR, Standard, or Linear Decimal chart progressions.

Electrical:
Voltage: 100 - 240 volts AC 50/60 Hz
Input Power: 50-75 VA
Fuses: Time-Lag (2.5A, 250V), 5 x 20mm, RoHS
Remote Control: 2 AAA (LR03) batteries

Operational Environment:
Temperature: 10° C (50° F) to 35° C (95° F)
Relative Humidity: 30% to 75%
Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)

View full details

Optotypes

  • Standard

    17 Letter Set
    8 Letter Set
    Sloan
    Tumbling E

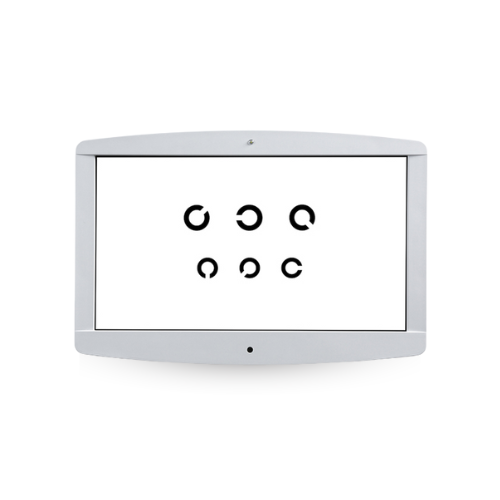

    Landolt C
    O Landolt C
    HOTV
    Cyrillic
    LEA NUMBERS

  • Children's

    Allen
    Pigassou (Hearing Impaired Chart)
    Osterberg
    Sheridan-Gardiner
    Lower Case
    LEA SYMBOLS

  • Presentation

    Single Line
    Double/ Same
    Double/ Decreasing
    Triple Same
    Triple Decreasing
    Quadruple Same
    Quadruple Decreasing
    Single Letter
    Column
    Column Uneven

  • Other

    Xcyl Crowding Dots
    Astigmatic "Wheel"
    T
    Fixation Dot
    Horizontal Disperity
    Vertical Disperity
    Worth 4 Dot
    Crowding Bar
    Suppression
    Red Green Filter
    EDTRS
    Contrast Sensitivity
    Patient Education Slides
    License Plate
    Color Vision testing (Color Blindness)
    Schober (color balance)
    Grid
    Maddox LED Light
    Inverse Black & White

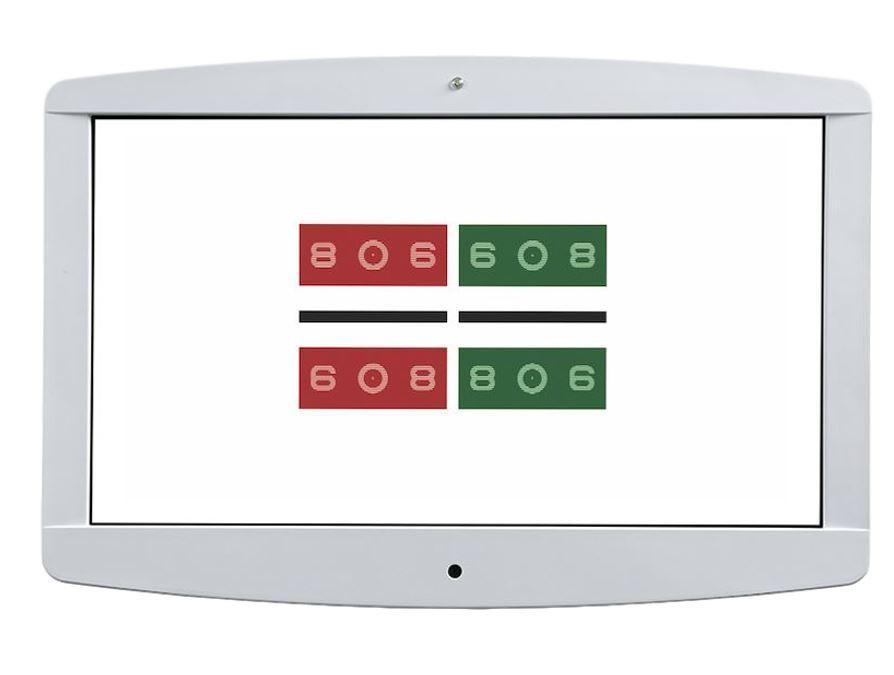

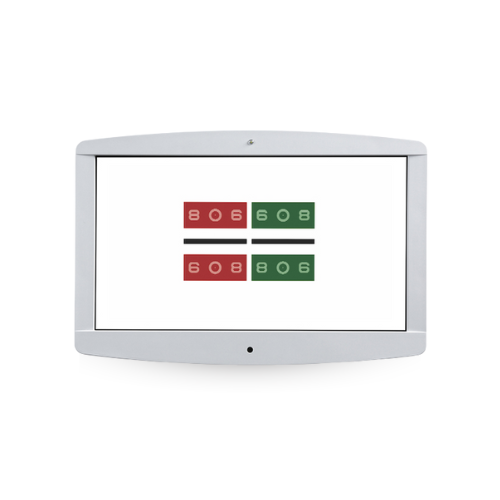

  • Polarized Charts

    MKH
    Phoria
    Cyclophoria Test
    Vertical Coincidence Test
    Stereo Tests
    Stereo Balance Tests
    Polarized Muscle Tests
    Polarized Binocular Balance Tests
    Mallet Test
    Horizontal and Vertical Coincidence Test

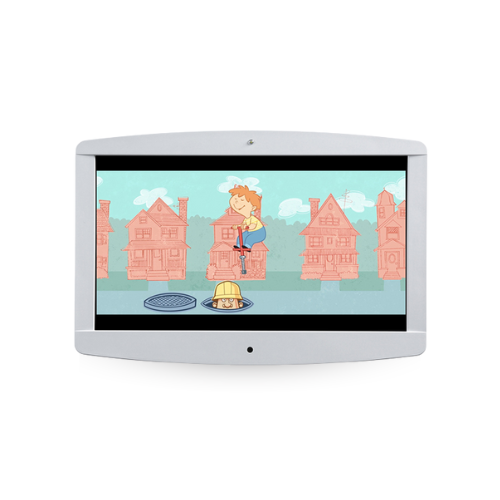

Pediatric

Includes one children’s video with audio for fixation with the ability to upload four additional video files

Contrast Sensitivity

Three light levels available for contrast testing along with the ability to adjust frequency and rotate image angle.

Color Vision

A selection of twenty four charts is available for testing color vision deficiencies. These charts are digital renderings of the American Optical H.R.R. Psuedoisochromatic Plates.

Phoria/Stereo Vision

A series of eleven different test charts are used for phoria and stereo vision testing.

Patient Education

Displays seventeen different educational slides with the ability to upload up to thirteen additional image files.

Bluetooth Connectivity

The Clearchart 4P can directly connect to a Reichert digital refraction system wirelessly using a bluetooth serial adapter.

*Bluetooth adapter sold separately

All ClearCharts are designed and assembled in the USA

Documents:

Brochure   User's Guide

ClearChart 4P (13785) comes with:

(1) Remote control
(2) AAA (LR03) batteries
(2) Power cords - 0.6 m (3 ft.) length and 3 m (10 ft.) length
(1) Wall mount bracket with screws
(1) Wall mount adaptor
(1) Pair polarized glasses
(1) Key card for Pigassou Optotypes
(1) Key card for Sheridan Gardiner Optotypes
(1) User’s Guide

Optional accessories:
(1) Wall mount bracket adaptor
(1) USB Bluetooth adapter
(1) Wireless dongle kit
(1) Pair red/green glasses
