Accutome

B-Scan Plus

B-Scan Plus

SKU: AC24-6100

    Technical Specifications

    Weight: 6 oz.
    Dimensions: 7” x 1.25”
    Frequency: 12 MHz or 15 MHz readings
    Axial resolution: 0.015mm (electronic)
    Lateral resolution: 0.085mm (electronic)
    Gamma: Linear, s-curve, log, colour
    Scan angle: 60º
    Sampling: 2048 data points per line
    2x optical zoom: Yes
    Report/image export format: PDF, JPEG, PNG, GIF, TIFF, BITMAP
    Scans per frame: 256
    12 measuring callipers: 6 lines, 2 areas, 2 angles, 2 arrows
    Cine loop times: Adjustable film looks that range from 2 to 17 seconds
    Measuring velocities: Multiple measuring velocities for ACD/ VCD
    DICOM: DICOM ready
    Smooth Zoom: technology 2x full-image zoom without distortion of real-time or captures scan
    EMR compatible
    Preset Gamma: Linear full range (default setting), s-curve full range, log full range, colour
    B-Scan sequence: Preset sequences and personalized
    TGC - time gain compensation: Ability to adjust the signal gain segmentally as distance from the probe increases
    Video recording/ sharing: Easy to transfer video into an MP4 file for presentations

    View full details

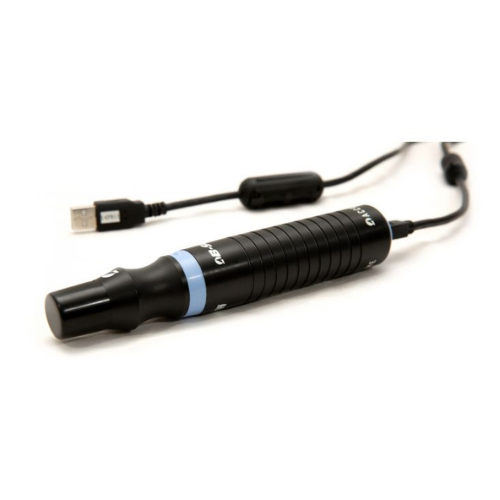

    The ergonomic B-scan probe is designed to provide you with crystal clear images of the posterior segment, making it a reliable partner for your ultrasound examinations.

    Intuitively designed and fully portable, it is compatible with both the Keeler 4Sight™ 4-in-1 ultrasound system and Keeler Connect software (for using alone), to give you the versatility you need within your workspace.
    With automated functions to optimise your workflow, the B-Scan probe allows you to spend more time with your patients without interruptions.

    The B-scan ultrasound probe features:

    Ultra-high resolution images (0.015mm) for added reassurance
    Enhanced visualization of structure and/or disease, for a reliable diagnosis
    Smooth zoom technology to get you two times closer, with no distortion
    Wide spectrum imaging, to view from every angle
    Portable and lightweight, for all work environments

    High Image Resolution

    Featuring 0.015mm image resolution, the B-scan probe is among the highest in the market, so you can trust you’re getting high quality, crystal clear, images every time.

    Wide-Ranging Diagnosis

    As well as imaging the internal structure of the eye, the B-scan probe works to visualize possible tumors, hemorrhages, detachments and diseases, to assist with future surgery and help you provide the the best results possible.

    Smooth Zoom

    Uses smooth zoom technology providing 2x full image zoom without distortion, to give you the extensive detail you need when performing ultrasound examinations.

    Extensive Scanning

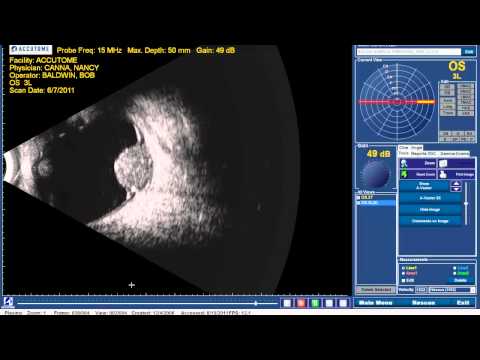

    The B-scan probe can compile a series of 256 A-scans over a 60º sweep angle, providing you with a comprehensive range of images and videos, using dual frequency (12 or 15 MHz) readings.

    Device Portability & Versatility

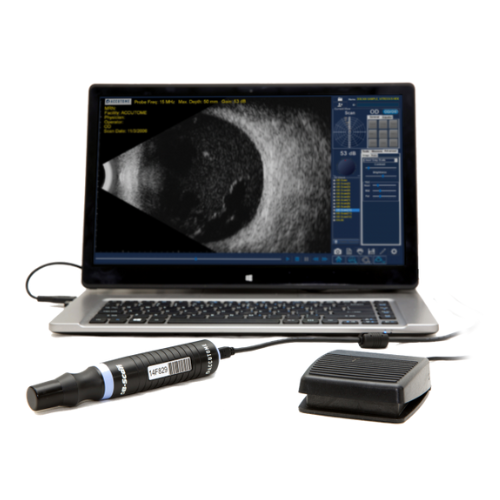

    For the ultimate portability and flexible usage, the B-scan probe can be plugged into any Windows™ laptop or desktop computer, via USB connection, making it the perfect companion for busy eye care professionals on the go.

    State of the Art Software

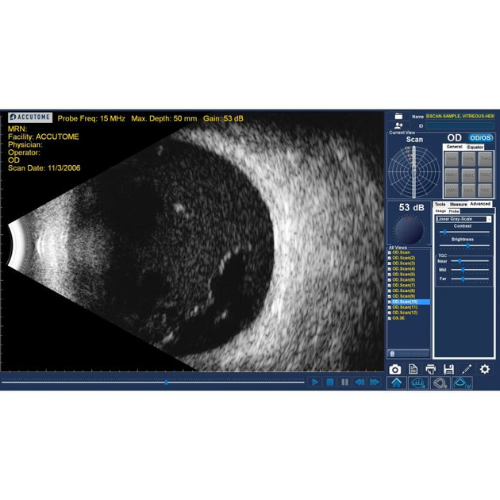

    Conveniently included in the B-Scan Connect and 4Sight proprietary software, are 12 measuring callipers, scan labelling tools, screen-shot capture, auto-print and reporting functions for data export, to ensure you have everything you need, all in one place.

    Accessories Included:

    Software installation, USB stick, probe holder, footswitch, wireless mouse, and ophthalmic gel.

    Documents:

    Brochure   Connect Software Brochure
