SKU:HDARK-900

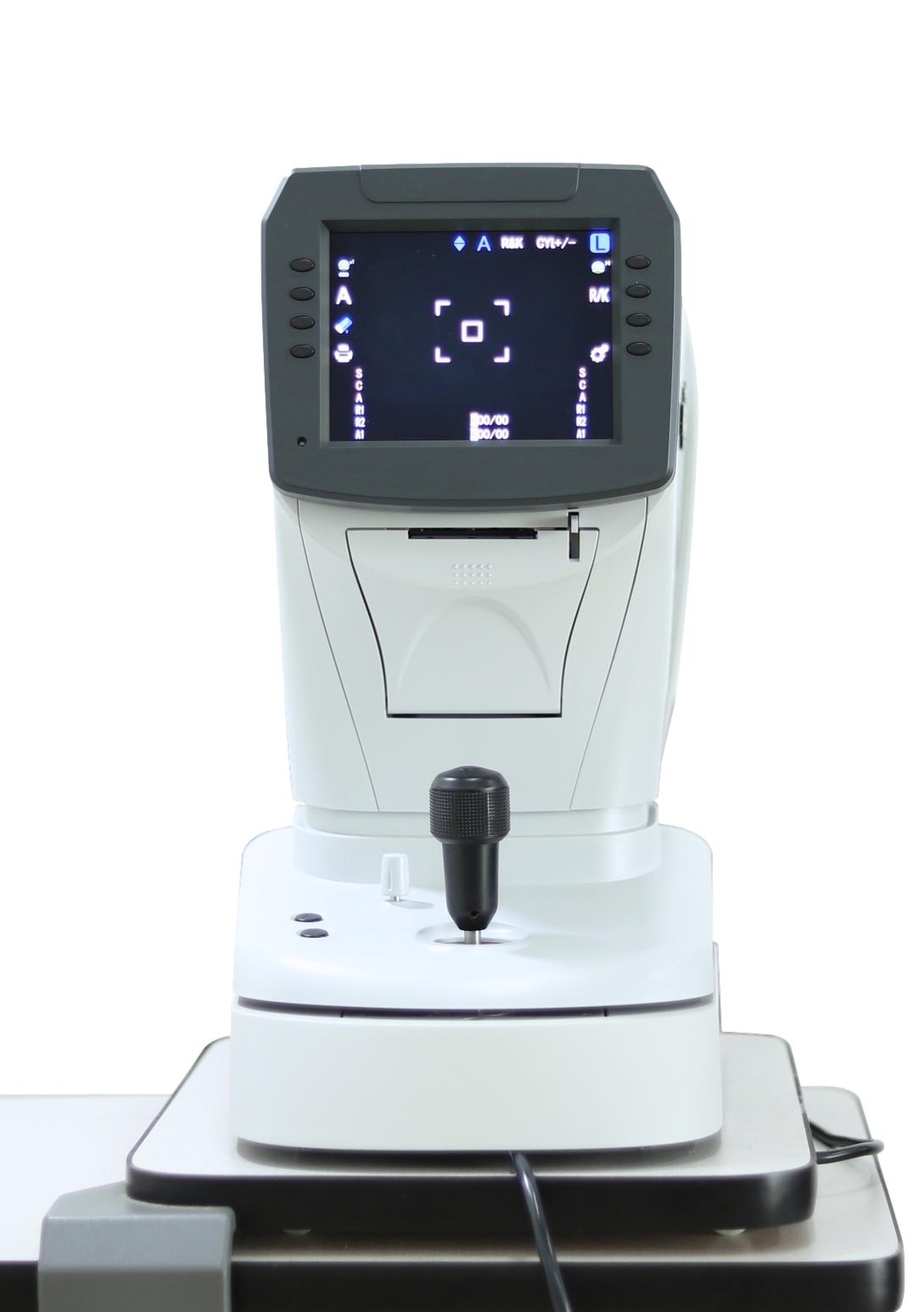

6.5” touchscreen control panel for easy operation.

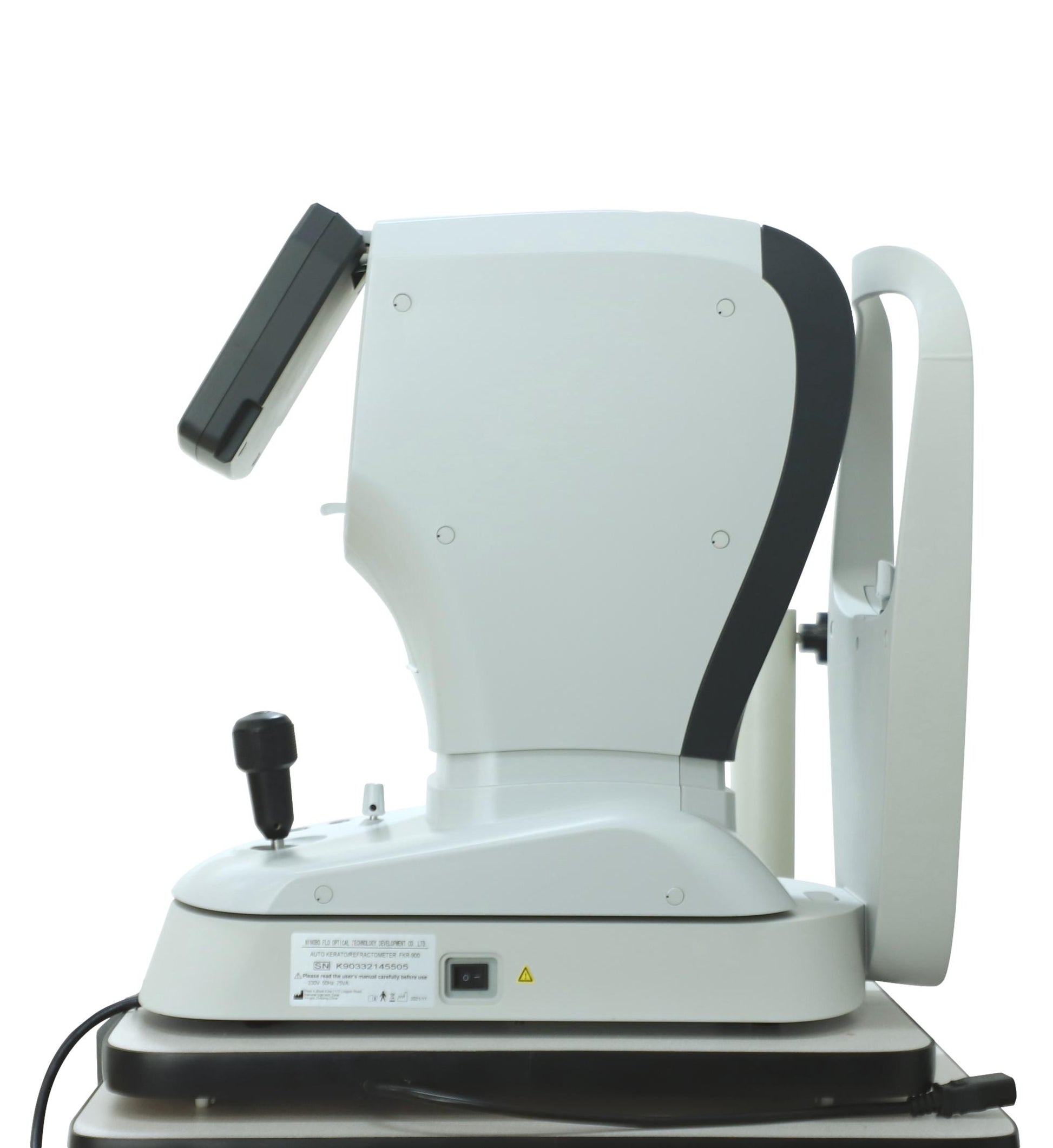

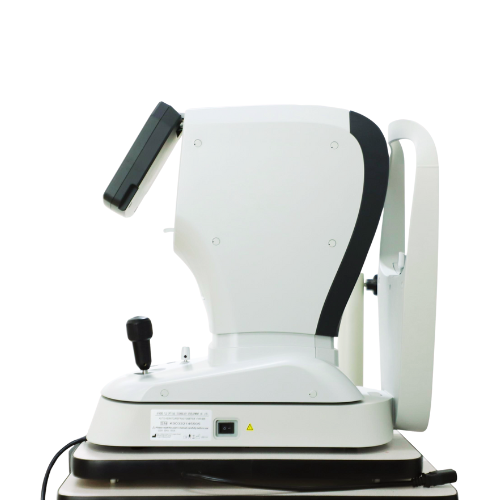

90-degree foldable control panel for a different angle of view.
Auto focus, auto eye tracking.
A switch between manual capture and auto-capture is available.
| Vertex distance |
0、12.0、13.75、15.00mm |
| Spherical degree measurement range |
-25.00D～+25.00D |
| Column mirror measurement range |
-10D～+10D |
| Axis measurement range |
0°～180° |
| Interpupillary distance measurement range |
10mm～85mm |
| Minimum measurement pupil diameter |
ф2.0mm |
| Radius of curvature measurement range |
5mm-10mm |
| The measurement range of the principal meridian axis of corneal curvature |
0°～180° |
| Corneal diameter measurement range |
2.0mm-12.0mm |
| Display |
6.5-inch LCD display |
| Printer |
Built-in imported thermal printer |
| Power saving mode |
1/5/10/20/40 minutes no operation |
| Power supply |
～220V 50Hz 75VA |
| Size/Weight |
255mm(W)*490mm(D)*460-490mm(H)/18kg |
