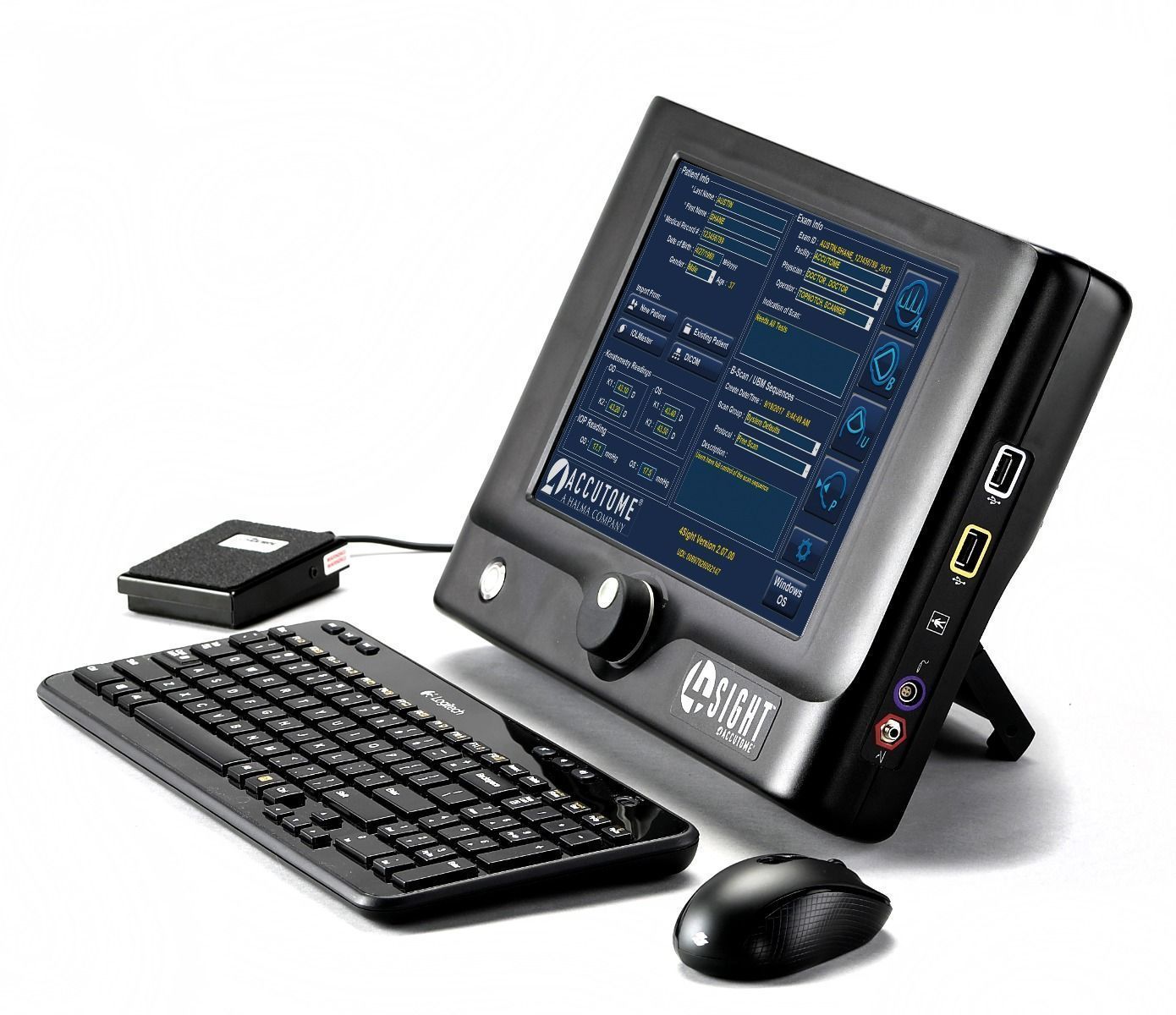

Accutome 4Sight Ultrasound/Pachymeter - Optics Incorporated
Accutome

4Sight Ultrasound/Pachymeter
Free Gift


SKU:

Call or Chat for price




    Manufacturer Part Number: 24-8000A, 24-8000B, 24-8000U, 24-8000P

    For over 30 years Accutome has built a reputation for high quality, reliable and reasonably priced ophthalmic diagnostic equipment. The addition of the 4Sight is no exception. Designed with eye care professionals in mind, the 4Sight provides a single solution for ophthalmic diagnostics by combining an A-Scan, B-Scan, UBM and Pachymeter in one, easy to use platform. We realize the demands on today’s busy clinics and designed the 4Sight to meet those needs by delivering a high value product that is accurate and efficient.

    High Value Workstation:
    Single solution for all ophthalmic ultrasound imaging at an affordable price
    High quality with industry-leading warranty and service programs
    Live help and dependable support for the life of the product


    Accuracy:
    Proprietary signal processing
    Industry leading clinical accuracy
    Unsurpassed image quality


    Efficiency:
    Single point-of-use technology for all ophthalmic diagnostic imaging needs in an ergonomic portable package
    Intuitive user interface for a rapid and smooth learning curve
    Easy data transfer between modalities and higher patient throughput
    DICOMSM Worklist compatible


    Specifications:

    4Sight Unit:
    Weight: 5 lbs.
    Dimensions: 15”W x 2”D x 11”H
    Touch screen
    Integrated DICOM worklist modality
    External connections HDMI and ethernet
    5 USB ports
    A-Scan probe connection
    Pachymeter probe connection


    A-Scan Module:
    Weight: 0.08 oz.
    Dimensions: 1.75”L x 0.2”W
    Electronic Resolution: 0.016 mm
    Clinical Accuracy: 0.1 mm
    Frequency: 10MHz
    Immersion or contact measurement mode
    Default eye types Phakic, Dense Cataract, Silicone Filled, Pseudo Acrylic/PMMA/Silicone, Aphakic
    Custom eye types possible
    Measurements ACD, lens thickness, VCD, axial length
    Capture modes auto or manual
    Data points per waveform 4096
    IOL Formulas Hoffer Q, Holladay I, SRK II, SRK/T, Binkhorst II, Haigis, Clinical History, Contact Lens, Shammas Clinical, Entered
    Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP


    B-Scan Module:
    Weight: 6 oz.
    Dimensions 7”L x 1.25”W
    Axial Resolution: 0.015 mm (electronic)
    Lateral Resolution: 0.085 mm (electronic)
    Frequency: 12 MHz or 15 MHz
    Sampling Rate: 2048
    Scan Angle: 60°
    Gamma Linear, S-Curve, Log, Color
    Time gain control
    Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
    256 scans per frame
    12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)


    UBM Module:
    Weight: 6 oz.
    Dimensions 7”L x 1.25”W
    Axial Resolution: 0.015 mm (electronic)
    Lateral Resolution: 0.05 mm (electronic)
    Frequency: 48 MHz
    Sampling Rate: 2048
    Scan Angle: 30°
    Gamma Linear, S-Curve, Log, Color
    Time gain control
    2x optical zoom
    Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
    256 scans per frame
    12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)
    USB cable with power isolator


    Pachymeter Module:
    Weight: 0.67 oz.
    Dimensions: 1.75”L x 0.2”W
    Accuracy: ±5μ
    Sample Rate: 65 MHz
    Measurement Range: 300-999 μ
    Automated IOP adjustment


    Included Accessories:

    Wireless mouse
    Wireless keyboard
    Probe holders (on the back of the unit)
    Power supply
    A-Scan immersion shell
    Manual
    Quick reference guide
    Test blocks (A-Scan and Pachymeter)


    Optional Accessories:

    Original B-Scan table top probe holder
    Original UBM table top probe holder
    Ergotron mounting arm (for wall and table mounting)
