Reichert

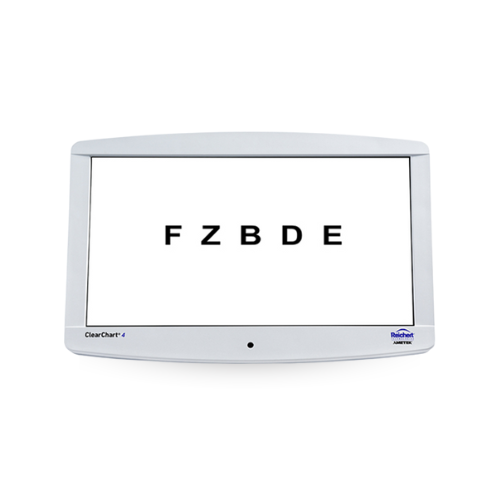

Clearchart 4 Digital Acuity System

Clearchart 4 Digital Acuity System

SKU: RI13795

    $2,635.00
    $2,635.00
    Sale Sold out

    5 in stock

    Technical Specifications

    Catalog Number: 13795

    Display: 24 in. (60 cm) LED backlit LCD (1920x1080 Pixels)

    Max Illumination: 220 cd/m2

    Photopic Illumination: 85 cd/m2

    Mesopic Illumination: 3 cd/m2

    Refraction Range: 1.83 m (6 ft) - 7.5 m (24.6 ft)

    Dimensions:
    Height:.39.62 cm (15.60 in)
    Width: 58.92 cm (23.20 in.)
    Depth: 7.62 cm (3.00 in.)

    Weight: (unpacked) 5.9 kg (13.1 lbs.)

    Communication:
    - RS232 Serial Port
    - 2 USB Ports
    - Can be linked by wired or wireless connection to a Reichert® digital Phoroptor®

    Remote Control: Infrared

    Electrical:
    Voltage: 100 - 240 volts AC 50/60 Hz
    Input Power: 50-75 VA
    Fuses: Time-Lag (2.5A, 250V), 5 x 20mm
    Remote Control: 2 AAA (LR03) batteries

    Operational Environment:
    Temperature: 10° C (50° F) to 35° C (95° F)
    Relative Humidity: 30% to 75%
    Atmospheric Pressure: 80 (23.6 in. Hg) to 106 kPa (31.3 in. Hg)

    View full details

    Optotypes

    Standard

    17 Letter Set
    8 Letter Set
    Sloan

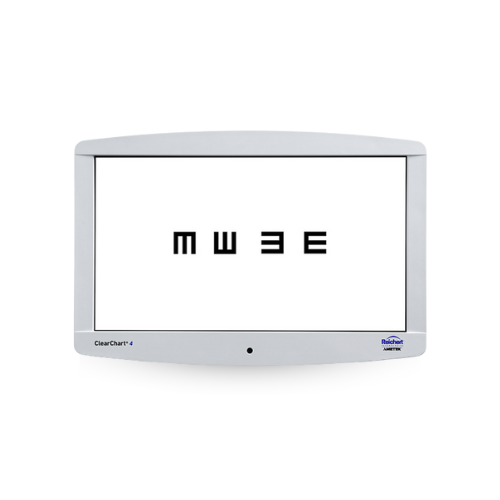

    Tumbling E
    Landolt C
    O Landolt C
    HOTV
    Numbers

    Children's

    Kolt
    Children's Shapes
    Allen

    Presentation

    Single Line
    Double/ Same
    Double/ Decreasing
    Triple Same
    Triple Decreasing
    Quadruple Same
    Quadruple Decreasing
    Single Letter
    Column
    Column Uneven

    Other

    Xcyl Crowding Dots
    Astigmatic "Wheel"
    T
    Fixation Dot
    Horizontal Disperity
    Vertical Disperity
    Worth 4 Dot
    Crowding Bar
    Suppression
    Red Green Filter

    Built for Acuity Testing

    ClearChart® Digital Acuity Systems are all-in-one, custom built and engineered for all of your acuity testing needs. Utilizing an intuitive and stable operating system designed
    by Reichert, ClearChart ensures consistent and reliable performance over other computer-based acuity systems.

    High-Resolution, LED-Backlit

    All ClearChart models feature a 24-inch, high-resolution (1920x1080), LED-backlit display with three different illumination levels for mesopic (3 cd/m2) and photopic (85 cd/m2) lighting conditions.

    Bluetooth Connectivity

    The ClearChart 4X can directly connect to a Reichert digital refraction system wirelessly using a Bluetooth serial adapter.

    *Bluetooth adapter sold separately

    All ClearCharts are designed and assembled in the USA

    Documents:

    Brochure           User's Guide

    ClearChart 4 (13795) comes with:

    (1) Remote control
    (2) AAA (LR03) batteries
    (2) Power cords [0.6 m (3 ft.) length and 3 m (10 ft. length]
    (1) Wall mount bracket with screws
    (1) Wall mount adaptor
    (1) User’s Guide

    Optional accessories:
    (1) Wall mount bracket adaptor
    (1) USB Bluetooth adapter
    (1) Wireless dongle kit
    (1) Pair red/green glasses
